Operating Manual - digiMIX18 Digital Mixer
18
4.7 Input Channel Linking, Aux Send Linking, and the Pan Control
The following examples show how input channel and aux stereo linking work together with the Pan control using typical Assign and
Aux Send applications.
4.7a - No Linking, Ch01 sent to Aux1
In this example there is no stereo linking.
Ch01 is assigned to Aux1 but not to the
main L/R mix. The Pan control will only
have an effect if Ch01 gets assigned to
the main L/R mix.
4.7b - Ch1-2 Linked, sent to Aux1 and Main
In this example Ch1-2 are linked and
assigned to Aux1 and also to the main mix.
1) The channel fader is now named Ch1-2.
2) The Pan bars appear for both Ch1-2,
initially panned full left and full right.
3) The orange bar shows the currently
selected channel, either Ch01 or Ch02.
4) The p an control adjusts the currently
selected Ch01 or Ch02 to the main L/R mix.
4.7c - Aux1-2 Linked, Ch01 not linked
In this example, Aux1-2 are linked. Ch01
is sent to Aux1-2 and also assigned to
main L/R.
1) In either of the Ch01 Assign or Aux1-2
Sends screens, the pan control fades Ch01
between main L/R when Ch01 is selected.
► TIP: If in the <Sends Mixer> screen for
main L/R (not shown) you enable Aux1-2 to
main L/R, you can select and separately pan Aux1 or Aux2 to main L/R.
4.7d - Ch1-2 Linked and Aux1-2 Linked
In this example, Ch1-2 and Aux1-2 are
both linked, and can both be enabled or
disabled for routing to the main L/R mix,
offering greater exibility.
1) In the Ch1-2 Assign screen, the Pan
control fades the selected Ch01 or Ch02
input between main L/R (if enabled to main).
2) In the Aux1-2 Assign screen, the Pan
control fades the selected Ch01 or Ch02 input signal between Aux1 and Aux2.
► TIP: If in the <Sends Mixer> screen for main L/R (not shown) you enable Aux1-2 to main L/R, you can select and separately pan
Aux1 or Aux2 to main L/R.

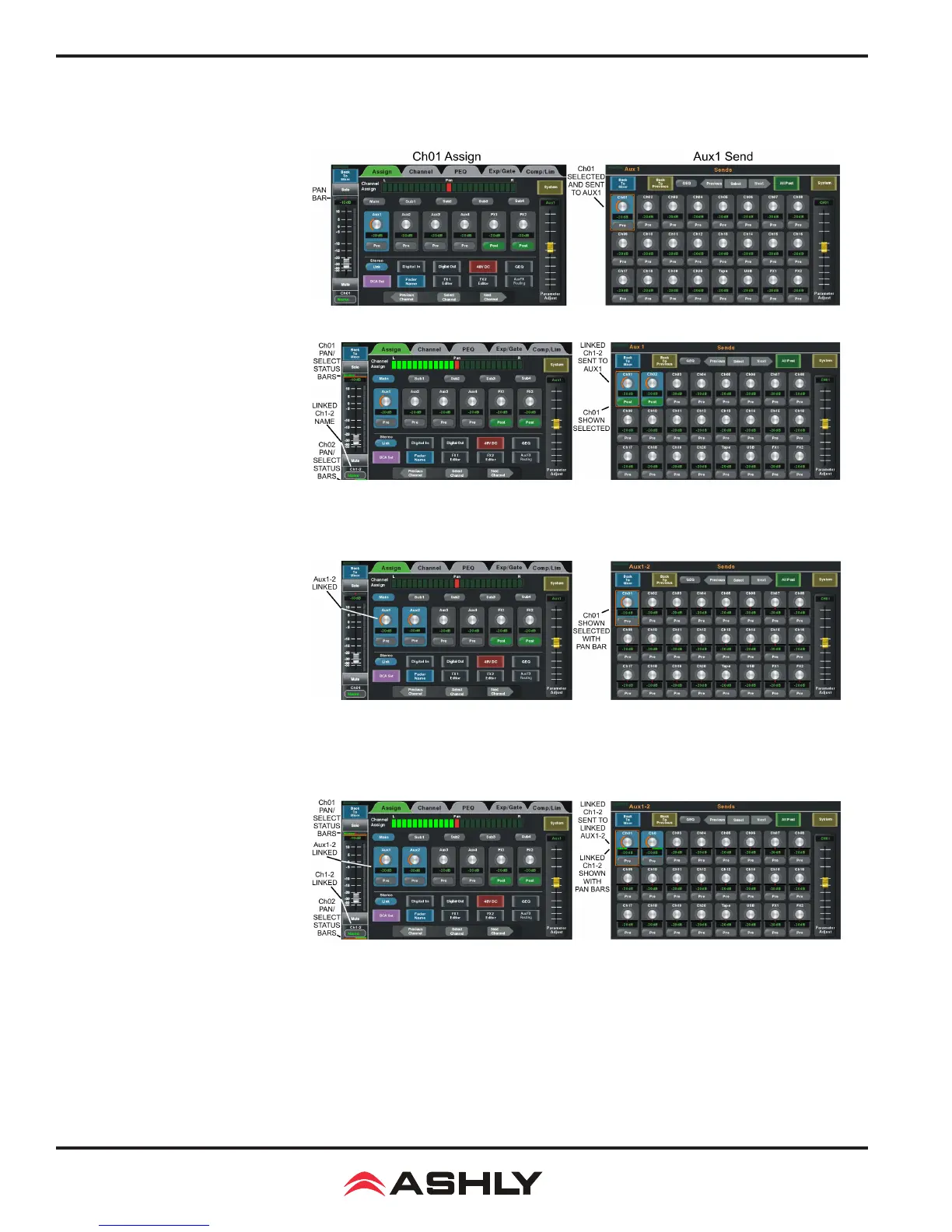

Figure 4.7a: No Linking, Ch01 sent to Aux1 only
Figure 4.7b: Ch1-2 are linked, sent to Aux1, assigned to Main mix
Figure 4.7c: Aux1-2 are linked, Ch01 sent to Aux1-2 and assigned to Main mix
Figure 4.7d: Ch1-2 Linked, Aux1-2 also linked, both can be routed to Main mix
