7 DIGITAL AUDIO
There are two optional
digital audio modules
a v a i l a b l e f o r t h e
digiMIX18, Dante-3018
and USB-3018. These
options provide digital
inputs to channels 1-18,
and digital outputs from
channels 1-18, main L/R,
aux1-8, and solo L/R.
Digital output from Mic
inputs 1-16 can be set
pre or post DSP. Digital
audio channel mapping
is internally fixed in
the mixer and cannot be
changed.
Digital input and output
channels are individually
en a bled, an d s ignal
level is adjustable from
+10dB to -70dB. Press a
channel's On/Off button
to enable/disable digital
audio for that channel,
and use the parameter
adjust knob on the mixer
or touchscreen to adjust
level on the selected channel.
Digital inputs 1-18 are always pre-DSP and pre-fader. See the Block Diagram for details.
Digital outputs from Mic channels 1-16 can be group selected as pre or post DSP using the touchscreen. Whether pre or post DSP,
digital outputs from Mic channels 1-16 are always pre-fader and pre-mute. Note: the mixer will not allow d
igital in and out to be used
simultaneously for the same Mic input channel if digital outputs are set post DSP.
Digital outputs from Line inputs 17-18 are always post-DSP, but pre-fader and pre-mute.
Digital outputs from main L/R, solo L/R, and aux1-8 outputs are always post-DSP and post-fader.
7.1 Dante-3018 Option
Dante, created by Audinate, is an Ethernet based digital AV network technology
that uses existing network infrastructure for delivery of high performance,
high channel count audio signals.
With the optional Dante-3018 module installed, the digiMIX18 can be integrated
into a Dante digital audio network. The Dante-3018 resolution & sampling rate
is 24bit / 48KHZ. The Dante-3018 module can be eld installed and is sold
and shipped separately from the mixer along with installation instructions.
7.1 Dante-3018 Module

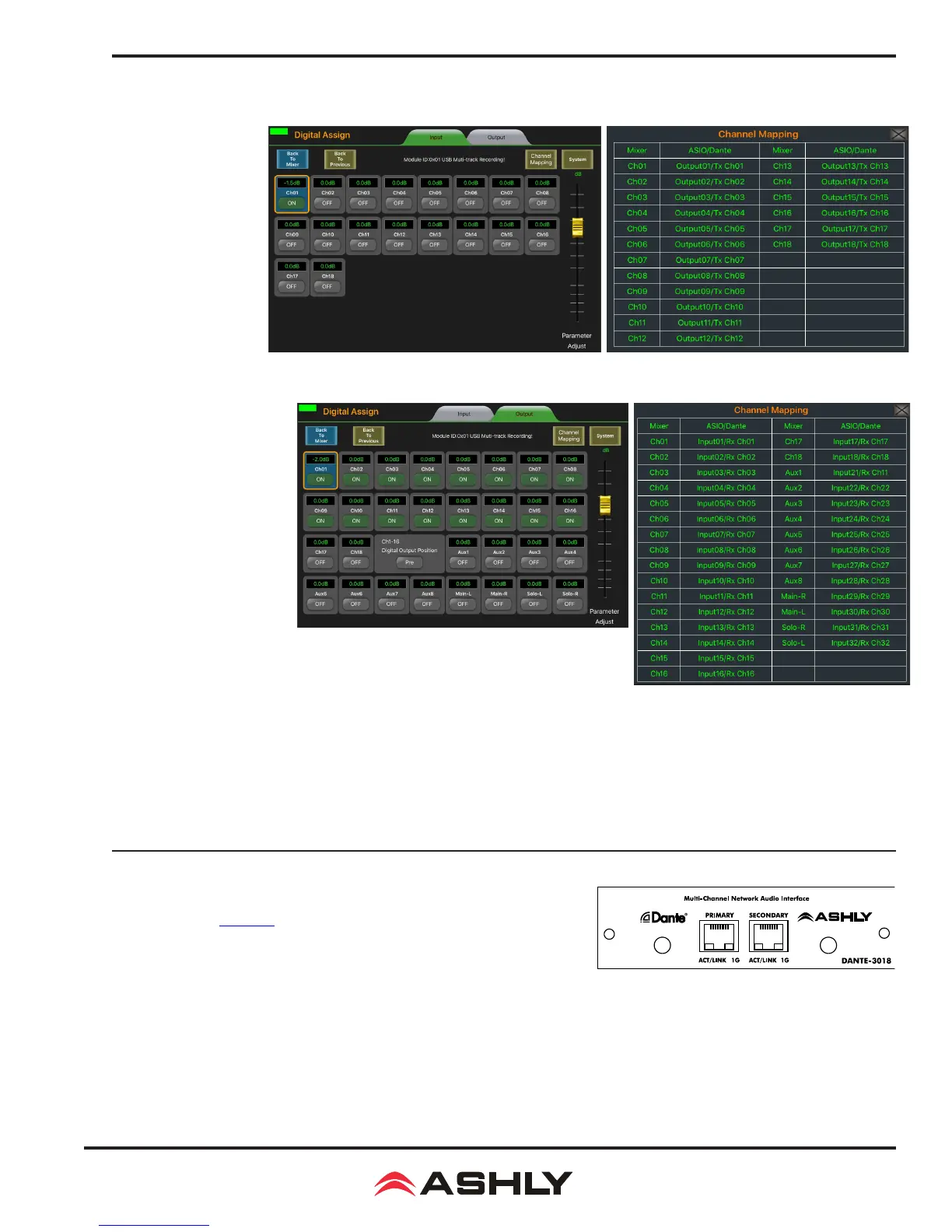

7a: Digital Input Assign and Mapping
7b: Digital Output Assign and Mapping
