AX58200
Motor Control User Guide
Reference Design User Guide
3. Board Description
3-1 AX58200-TSB-1 Rev3.0

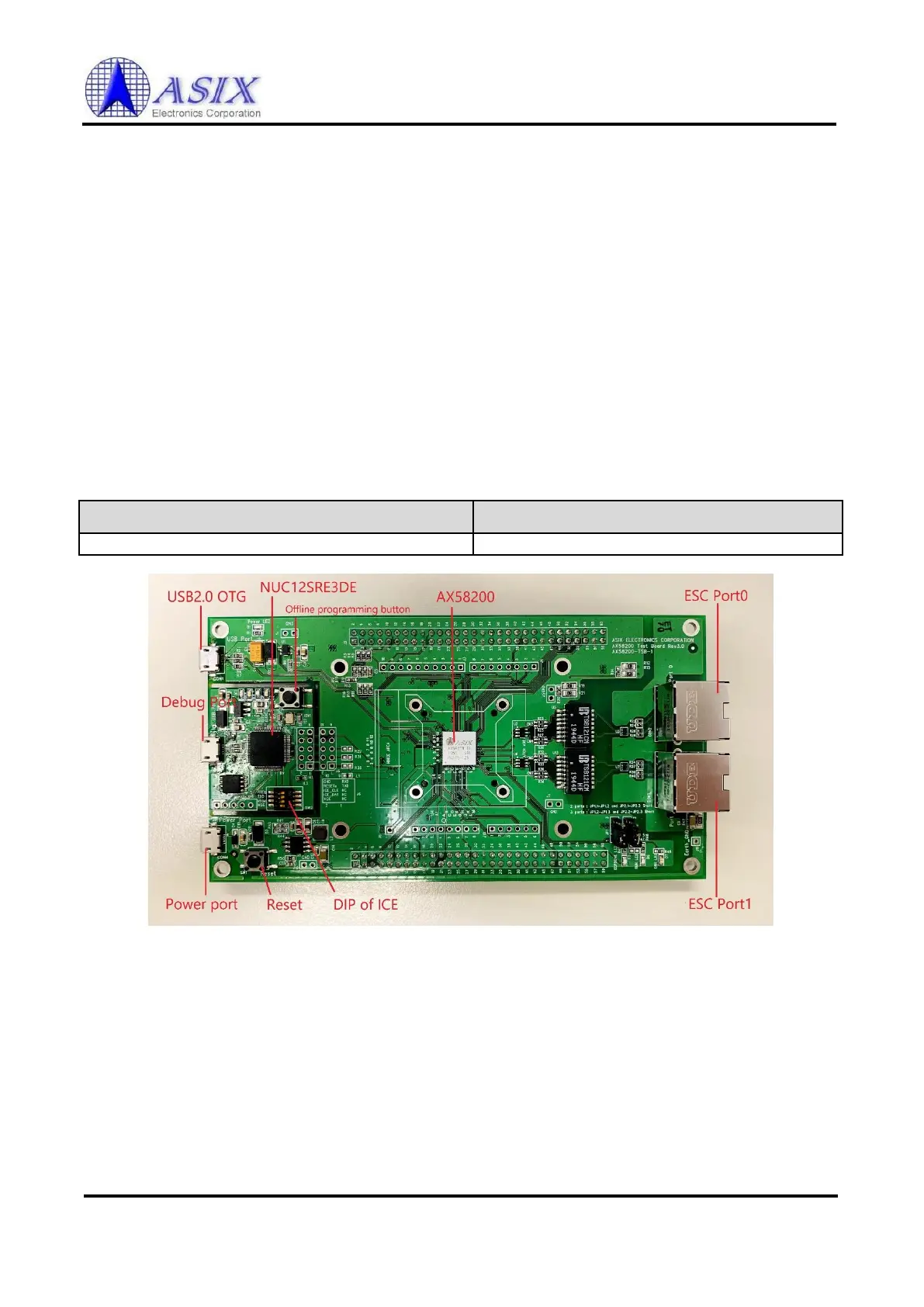

AX58200-TSB is a test / evaluation board for AX58200 IC and has below components:
⚫ AX58200 – An ASIX IC that integrated an ESC (EtherCAT Slave Controller) + an ARM cortex-M4
⚫ ESC Port0 – Port0 of the ESC
⚫ ESC Port1 – Port1 of the ESC
⚫ NUC12SRE3DE – A NUVOTON IC with ICE functionality for development / debug
⚫ Offline programming button – This button is used for offline programming through the ICE
⚫ Debug Port – Debug port of the ICE.
⚫ DIP of ICE – Dip switch for select mode of the debug port
⚫ USB2.0 OTG – USB2.0 OTG port of AX58200
⚫ Power – Power input port of AX58200-TSB
⚫ Reset – Reset button of AX58200
Attention! Because AX58200-TSB is a multi-purpose module, please check that the
following resistors have been removed before use.
Components
Status
R95, R104, R105, R106, R118, R119
Removed
Figure 3 - 1
