6-3 ARM KEIL MDK Method
If you are a software developer and own below 2 items legally, you can reference the method of this section.
⚫ Licensed ARM KEIL MDK
⚫ BECKHOFF SSC (Slave Stack Code) or SSC Tool
We don’t introduce the ARM KEIL MDK and SSC tool installation here. We assume it is ready in your
environment. Before opening the KEIL project file you must generate related source files through BECKHOFF
SSC Tool.
If you already prepared above-mentioned items, you can keep following below description.

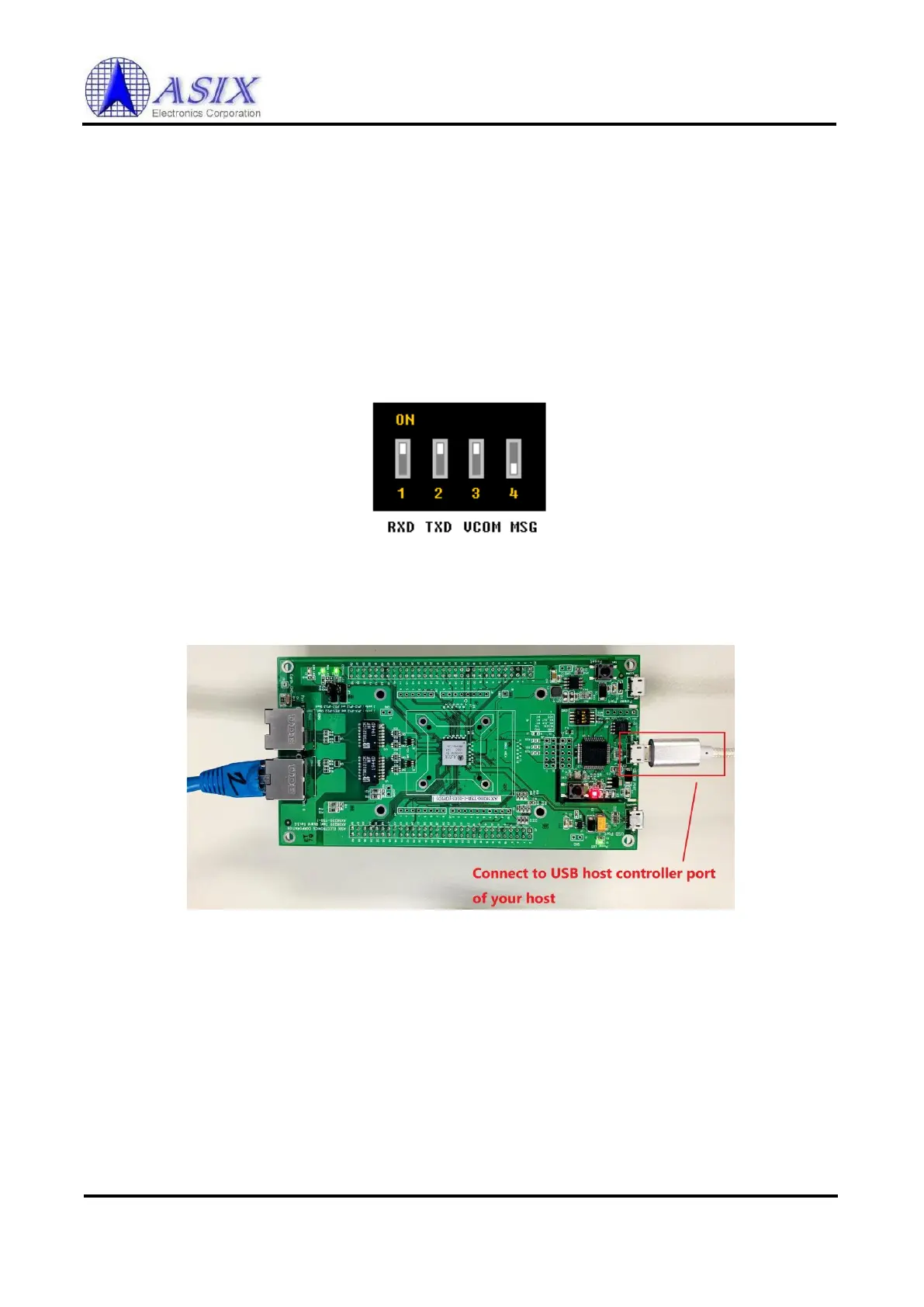

Make sure to take off the USB power cable and modify the “DIP of ICE” to below state:
Figure 6 - 13
And let “Debug Port” to connect your host:
Figure 6 - 14
To Next Page
