ASIX AX58200 User Manual

28
Copyright (C) 2020-2021 Reserved by ASIX Electronics Corporation, All Rights Reserved.
AX58200
Motor Control User Guide
Reference Design User Guide
6-2 NUVOTON ICP Tool Method
Please install NUVOTON ICP (In Circuit Programming) Tool first. You can download the tool through the link
Nuvoton ICP Programming Tool, or install it from AX58200 BSP\Tool folder directly.

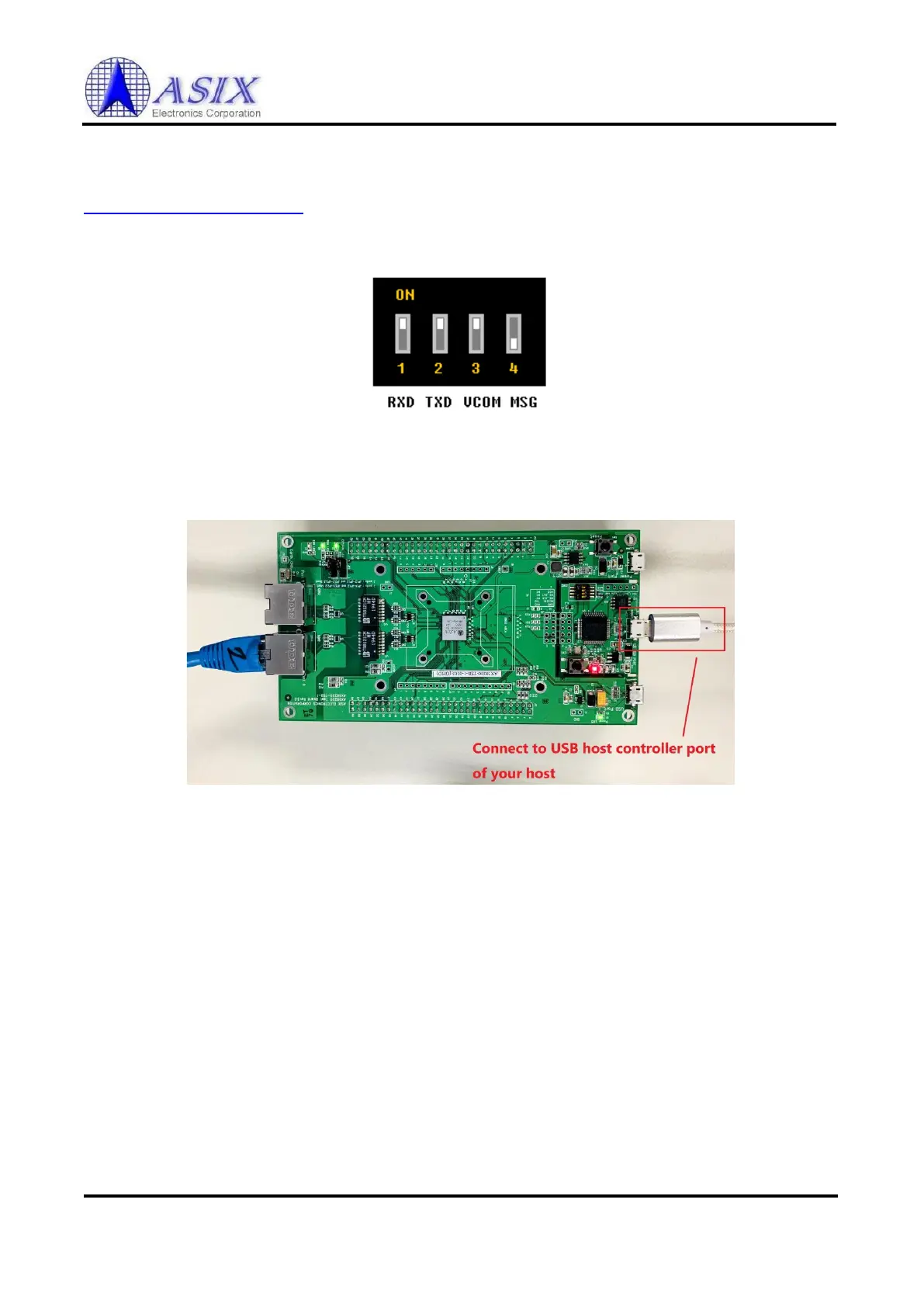

Make sure to take off the USB power cable and modify the “DIP of ICE” to below state:
Figure 6 - 4
And let “Debug Port” to connect your host as following:
Figure 6 - 5
