AX58200
Motor Control User Guide
Reference Design User Guide

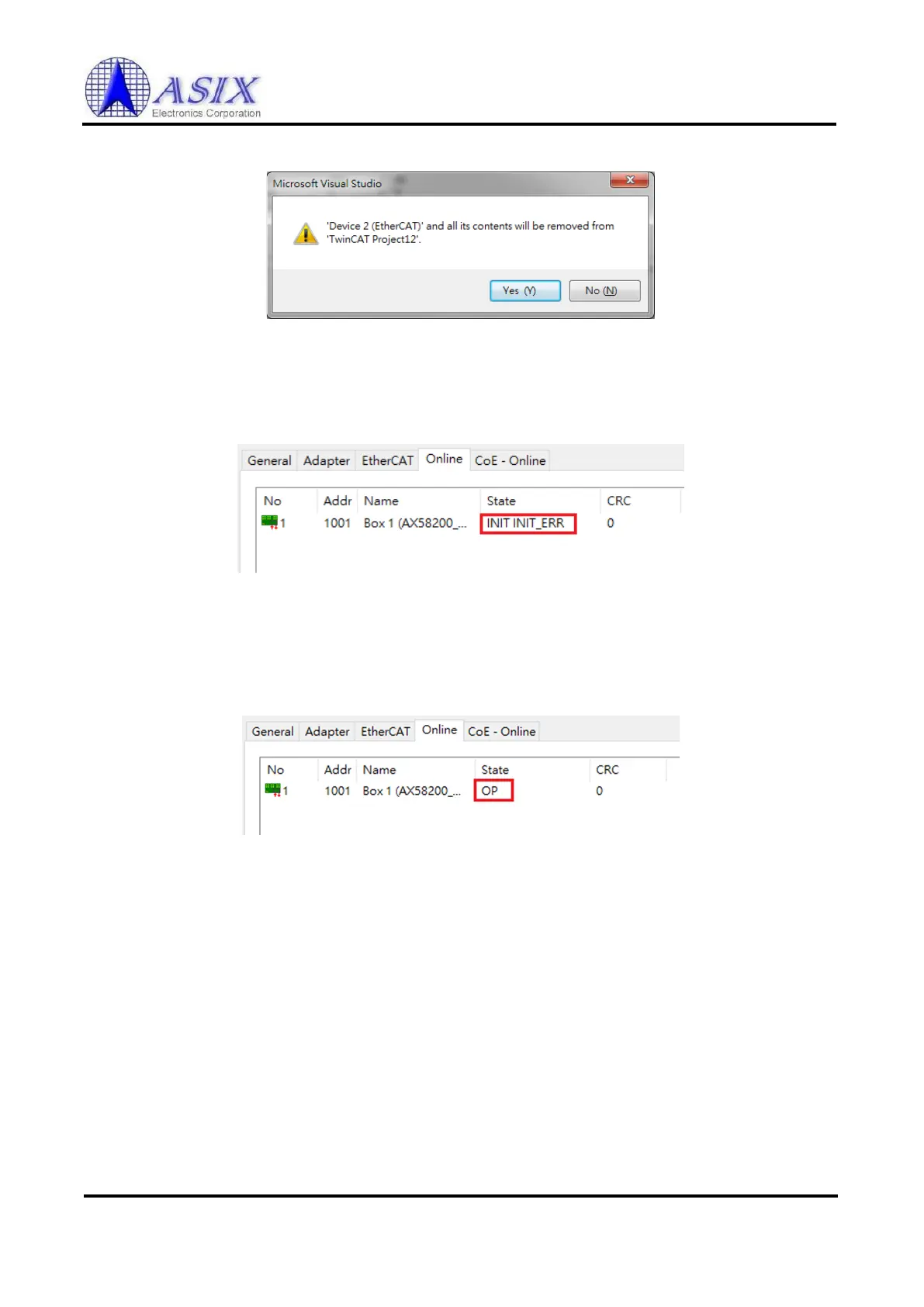

⚫ Step 18: Click “Yes”.
Figure 5 - 17
⚫ Step 19: Execute “Scan” again (repeat Step 7 ~ 11) and you will see below screen.
Assume AX58200 did not download available firmware with Slave Stack Code yet.
So, the state field “INIT INIT_ERR” is properly / reasonable.
Figure 5 - 18
If there is an available firmware with Slave Stack Code in AX58200, you should see below
screen. The “State” field is “OP” mode.
Figure 5 - 19
Note: Please refer to Chapter 6 for download firmware.
