⚫ Step 2: Select “AX58200_MotorControl.efw” under path:
“YOUR_BSP_FOLDER\SampleCode\Ethercat_MotorControl_Reference_Design\ For_TwinCAT\Upgrade\”,
and then click “Open”.

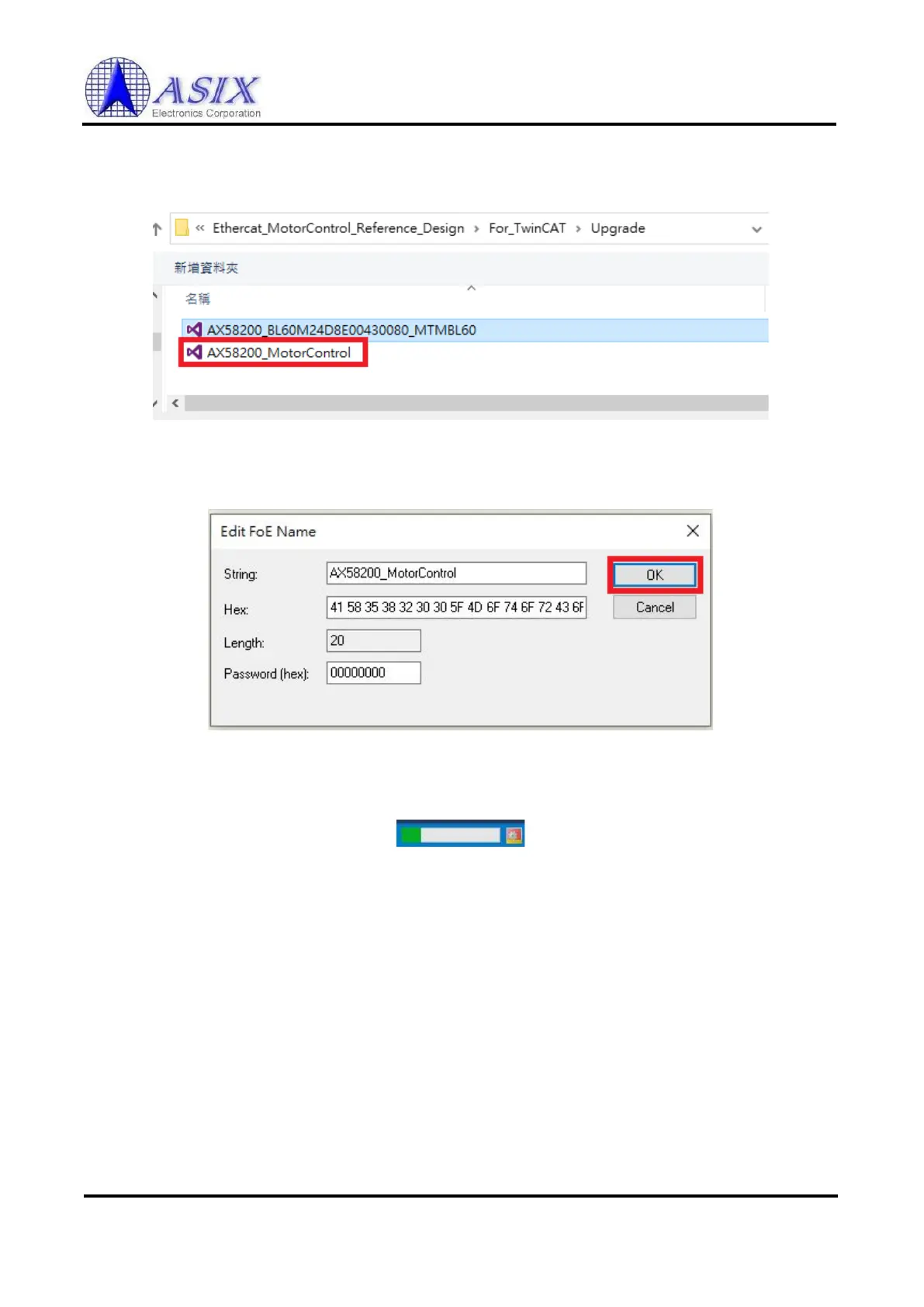

Figure 6 - 36
⚫ Step 3: Click the “OK”.
Figure 6 - 37
⚫ Step 4: Wait for progress bar at lower right corner of the TwinCAT screen.
Figure 6 - 38
