PANEL

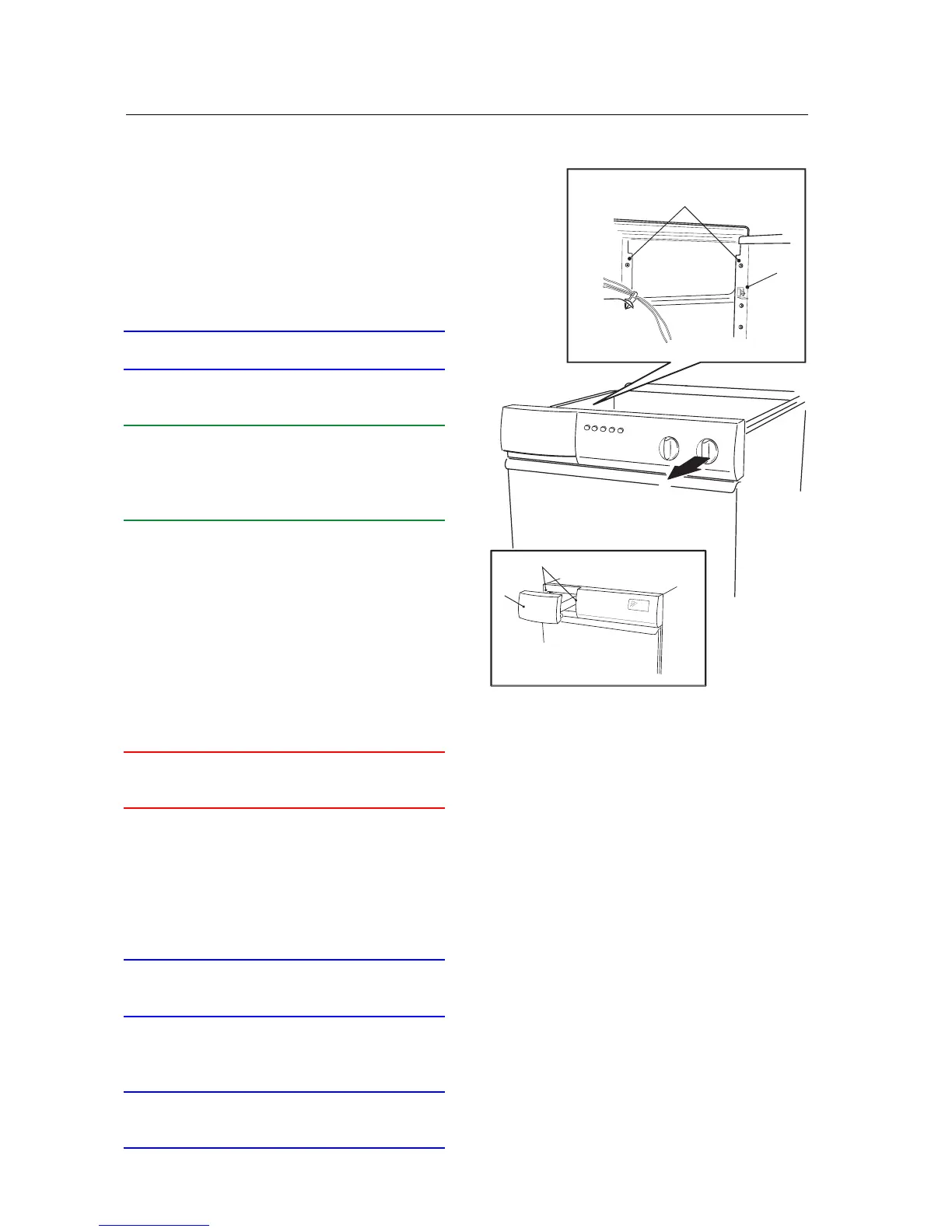

Removing the panel
1. Remove the three screws at the rear edge and
lift off the top cover.
2. T700/720: Remove the knobs by pulling
them outwards.
IMPORTANT
Position the knobs with their markings facing up.
NOTE
It is possible to use a polygrip (mole wrench) to
remove the knobs, but in that case remember to
put some soft material in the jaws so as not to
scratch the plastic.
3. T720/780: Pull out the water tank.
4. T720/780: Unscrew the 2 screws that secure
the panel to the front rail.
5. T700/760: Unscrew the 2 screws securing the
front rail.
6. Remove the 4 snap fasteners at the bottom
edge by bending the clips apart with a screw-
driver with a 6.5 to 7 mm wide blade. Un-
hook the panel.
WARNING
Take care when bending the clips apart not to
damage the plastic snap fasteners in the panel.
Installing the panel
7. T700/720: Guide the panel over the program-
ming buttons.
8. Hook on the top edge of the panel and snap
closed the 4 snap fasteners at the bottom edge.
IMPORTANT
Support the centre with a screwdriver as the pa-
nel is pressed into place.
9. Refit the removed parts.
IMPORTANT
Don't forget the 2 star washers for the outermost
screws when installing the top cover.
