ADJUSTMENTS AND PERIODIC MAINTENANCE
REAR DRUM BRAKE (NGS1)

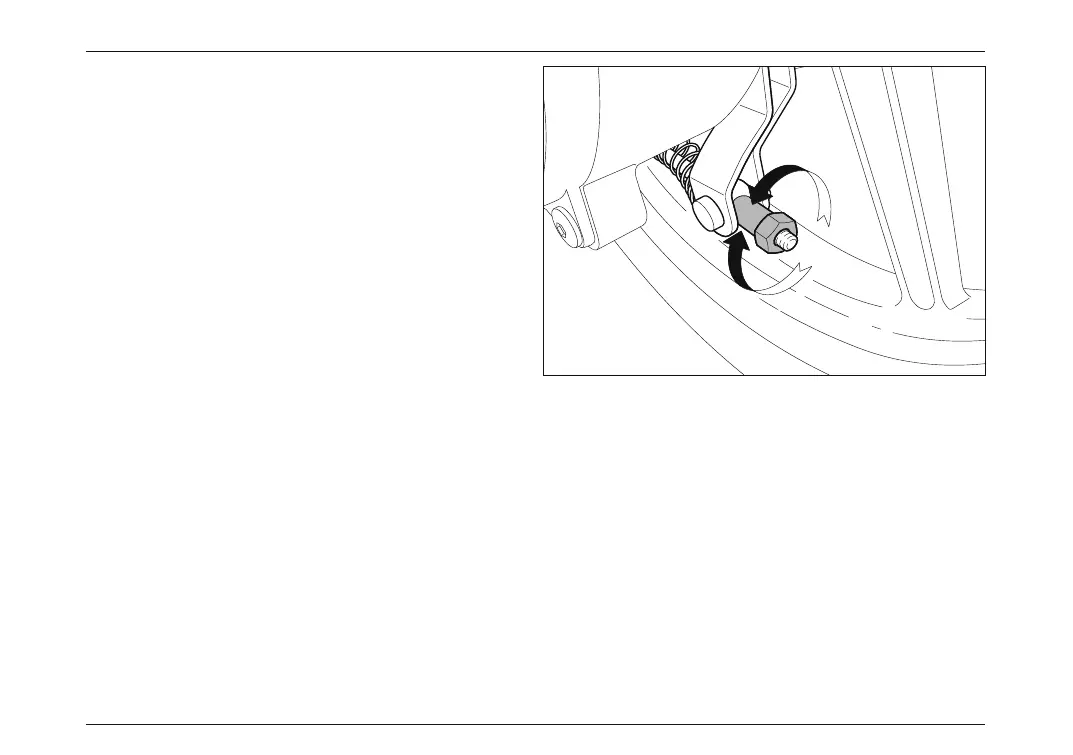

To adjust rear brake act on the nut as shown.
Tightening the nut, free play of the control lever
decreases and braking action increases.
Conversely, loosening the nut, free play of the control
lever increases and braking action decreases. After
adjustment, with the brake control lever in rest position,
check that the wheel turns freely.
Effective braking action should begin after
approximately 1/3 of the brake lever stroke.
