ASL INTERCOM VAR8 - Network Interface

VAR8 and Variants - Product Description
Issue: 02 complete, approved
Page 40 of 54

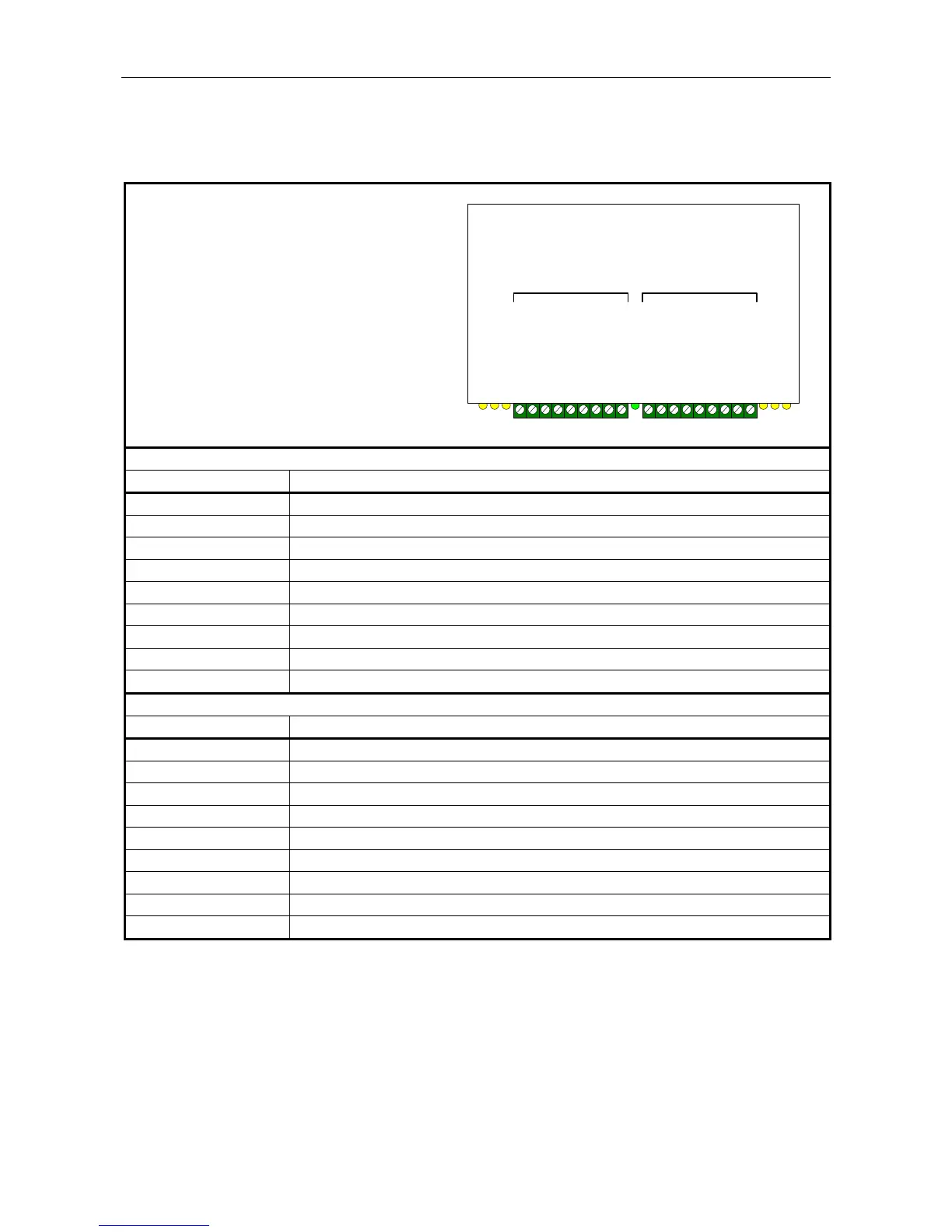

8.1 Network Interface
Upstream and Downstream
• 9 way terminal block (3.8 mm).
• Upstream and Downstream network interface
connections, comprising a RS485 control bus
and a 3-channel audio bus.
L This interface is only provided on VAR8
Routers which are fitted with the ANIC
Network Interface Card.
L The Audio Bus connections are outputs at the
ACU Audio Control Unit and inputs at the
VAR8 Slave Units.
Network Interface
1 FAULT 2 FAULT 3 FAULT 1 FAULT 2 FAULT 3 FAULT
SCRN
DXP
DXN
BUS1+
BUS1-
BUS2+
BUS3-
BUS3+
BUS2-
GND
DXP
DXN
BUS1+
BUS1-
BUS2+
BUS3-
BUS3+
BUS2-
ACTIVITY (DOWN / UP)
DOWNSTREAMUPSTREAM
Downstream
Signal Description
SCRN For cable screen connection
DXP Data Bus+ (EIA RS485 38400 baud)
DXN
Data Bus− (EIA RS485 38400 baud)
BUS1+ Audio bus Loop 1 (+20 dBu Analogue audio)
BUS1−
Audio bus Loop 1
BUS2+ Audio bus Loop 2 (+20 dBu Analogue audio)
BUS2−
Audio bus Loop 2
BUS3+ Audio bus Loop 3 (+20 dBu Analogue audio)
BUS3−
Audio bus Loop 3
Upstream
Signal Description
GND For cable screen connection
DXP Data Bus+ (EIA RS485 38400 baud)
DXN
Data Bus− (EIA RS485 38400 baud)
BUS1+ Audio bus Loop 1 (+20 dBu Analogue audio)
BUS1−
Audio bus Loop 1
BUS2+ Audio bus Loop 2 (+20 dBu Analogue audio)
BUS2−
Audio bus Loop 2
BUS3+ Audio bus Loop 3 (+20 dBu Analogue audio)
BUS3−
Audio bus Loop 3
