GENERAL ADVICE
√When the appliance is not being used, it is advisable to keep
the gas tap closed.
√If the gas tap becomes stiff,it is necessary to dismount it
accurately ,clean it with gasoline and spread a bit of special
grease resistant to high temperatures on it.This operation must
be executed by a qualified technician.
TRIPLE RING BURNER

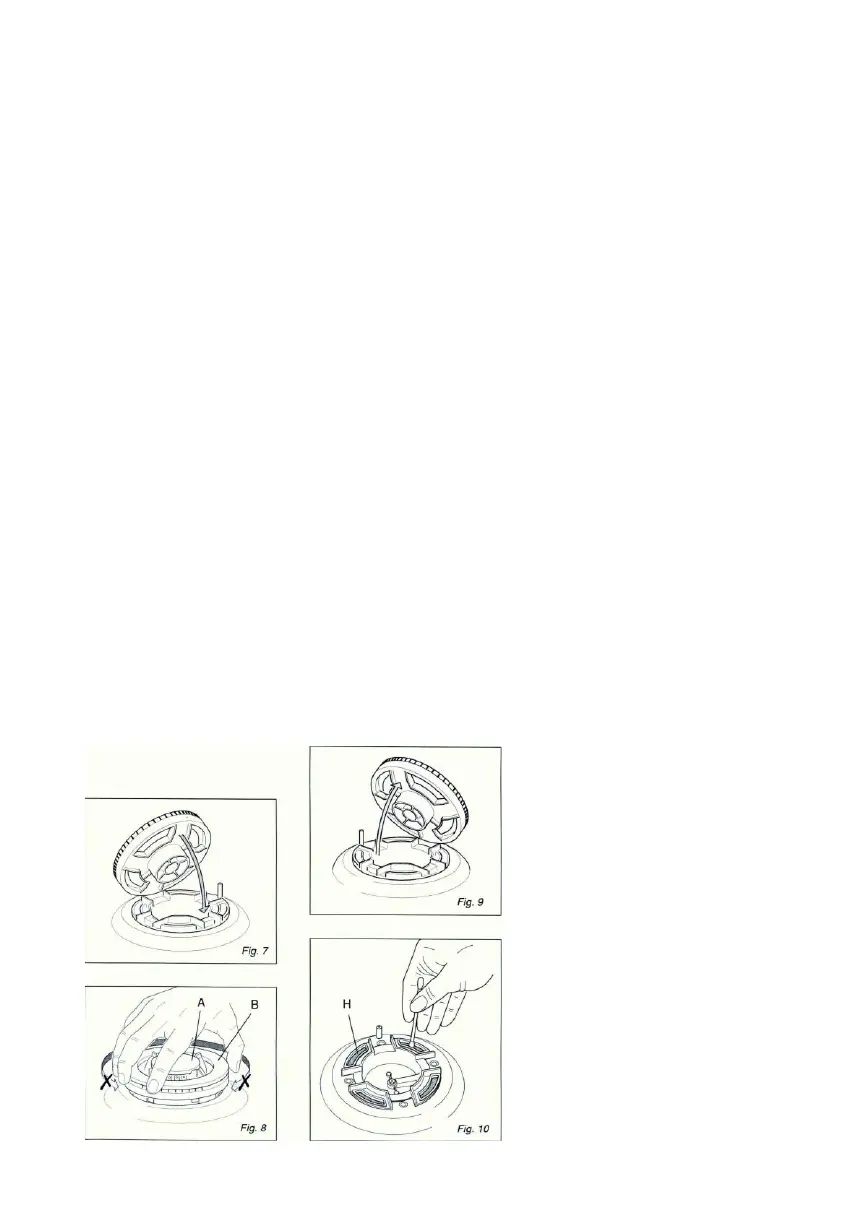

The triple ring burner must be correctly positioned(seen fig.7);the
burner rib must be enter in their logement as shown by the
arrow.
The burner correctly positioned must not rotate(fig.8).
Then position the cap A and the ring B(fig.8).
CLEANING THE TRLPLE RING BURNER
Pay special attention to this burner:the four holes around the
outside of the crown must always be kept clean.
When cleaning ,remove the flame divider (fig.9)and use a cotton
bud,toothbrush,or some other item to clean out any incrustations
or dirt from the four holes marked.“H”(fig.10).
This procedure is necessary to ensure the burner functions
correctly.
