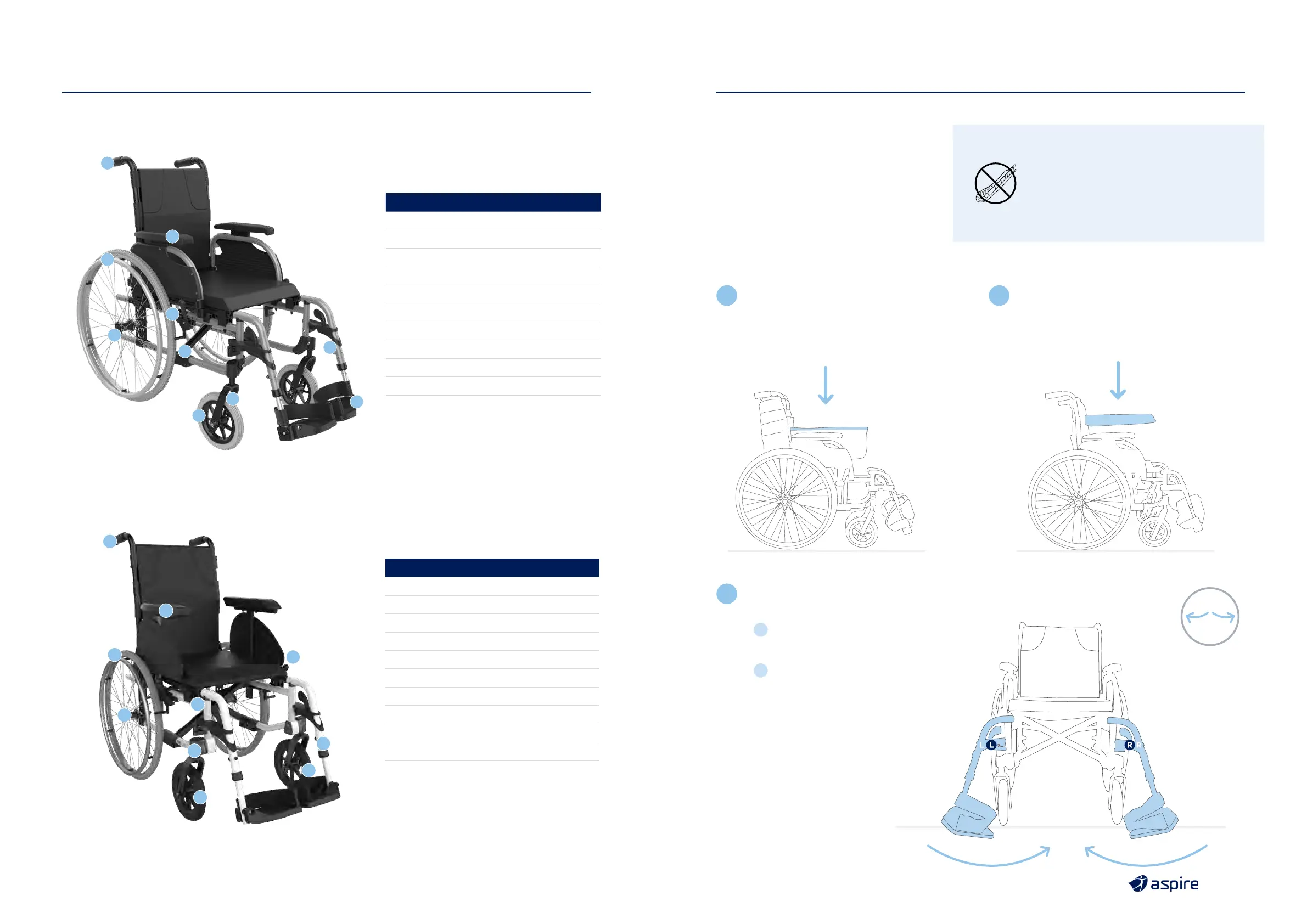

7. LIST OF COMPONENTS
ASPIRE EVOKE 2 MANUAL WHEELCHAIR
1
2
3
4
7
8
9
10
5
6
No. Description
1 Rear Wheels
2 Quick Release Axles
3 Armrests
4 Footrests
5 Height Adjustable Castor Fork
6 Front Castor Wheel
7 Foot Plate with Heel Loop
8 Attendant Hand Grips
9 Hand Brakes
10 Cross Bar
ASPIRE EVOKE 2 JNR MANUAL WHEELCHAIR
1
2
3
4
7
8
9
10
5
6
No. Description
1 Rear Wheels
2 Quick Release Axles
3 Armrests
4 Footrests
5 Height Adjustable Castor Fork
6 Front Castor Wheel
7 Foot Plate with Heel Loop
8 Attendant Hand Grips
9 Hand Brakes
10 Cross Bar
Wheelchairs come with a left and
right legrest.
a. Insert the legrest into the
corresponding receiver at a 90º
angle (as shown).
b. Twist and hold the latch,
simultaneously rotating the legrest
towards the centre until it clicks into
place. Repeat for the other side.
8. ASSEMBLY
BOX CONTAINS:
Wheelchair frame fitted with rear wheels
• Wheelchair
• Left Legrest
• Right Legrest
• Allen Keys (4mm, 5mm)
• User Manual
• Seat Cushion
1
When opening the carton, ensure it
is done in a safe and careful manner.
DO NOT USE a box cutter or sharp
implement as this may damage the
product. For WH&S purposes, lay the
carton on its side with the top of the
carton open and slide the plastic bag
out containing the wheelchair.
2
3
Push
Rotate
towards centre
Place the wheelchair on levelled ground.
Then pushdown on the side rails of the seat
until flat.
Secure the cushion onto the base.
a
b
REMOVING LEGRESTS:
Twist and hold the
hook outwards
and lift.
