WARNING! DO NOT transport an occupant in the wheelchair if the above process is not correctly
followed. It is imperative that these steps are completed in order to ensure user safety. The wheelchair
is to always be facing the same direction of seats within the vehicle, not to the side or backwards.

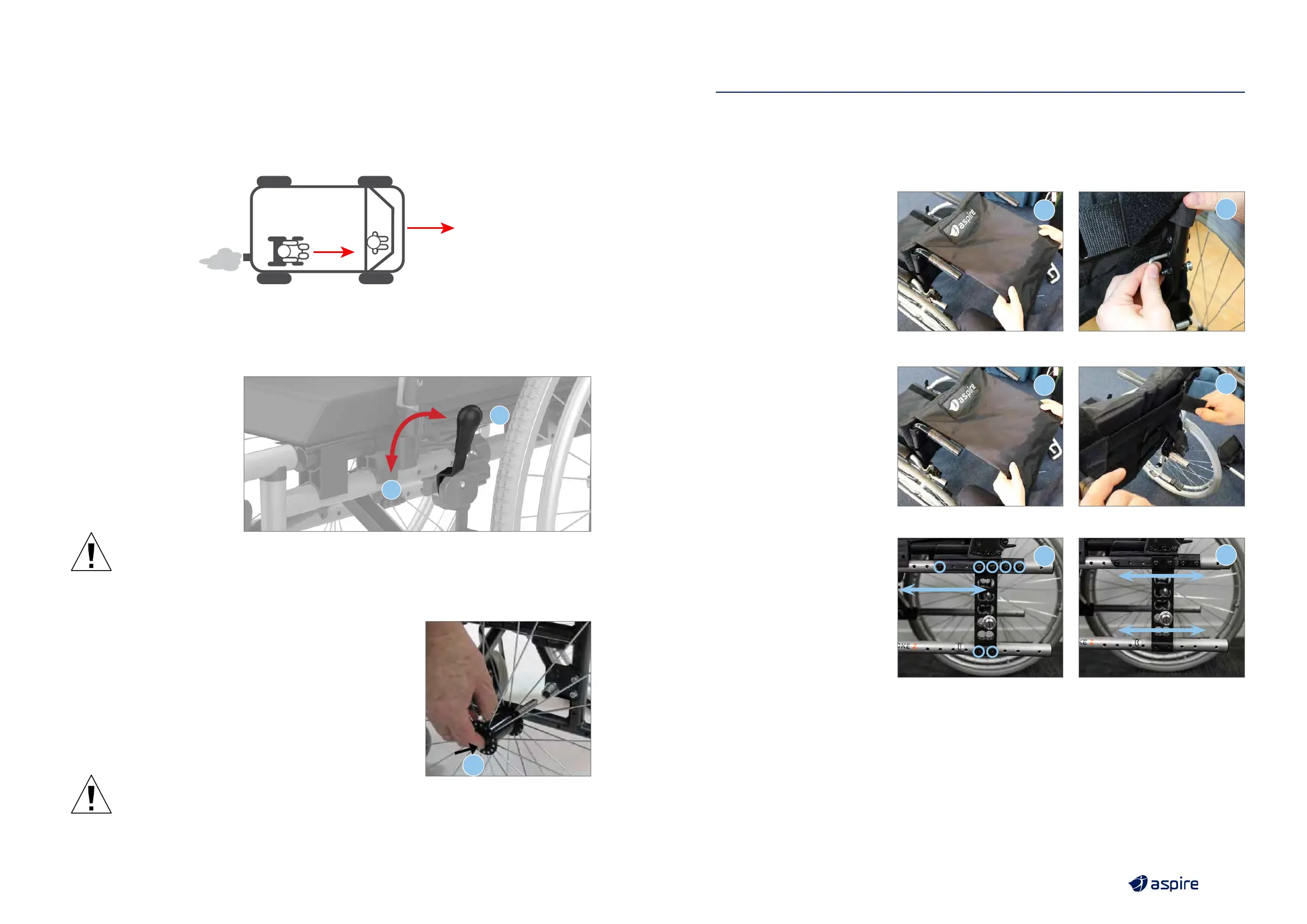

10.7 USING THE WHEELCHAIR BRAKES
Aspire Evoke 2 Manual Wheelchairs have locking brakes to ensure no movement occurs when the
wheelchair is in a stationary position.
1. To engage brakes, push
forward on the brake lever
until firmly locked in place.
2. To disengage brakes, pull
back on the brake lever
until unlocked.
WARNING
WARNING! Brakes should always be locked when leaving a user unattended in the wheelchair.
10.8 QUICK RELEASE WHEELS
If the rear wheels need to be removed for repair or replacement,
quick release axles are fitted to assist.
1. To detach the rear wheel from the frame, press & hold the release
button and remove the wheel from the frame.
2. To attach wheel, reverse step 1.
WARNING
WARNING! Ensure quick release axles are mounted correctly and locked in place prior to
seating a user.
1
2
1
Aspire Evoke 2 & Evoke 2 JNR Manual Wheelchairs have multiple adjustment points to ensure maximum
comfort for users. It is very important that the below steps are followed when adjusting the wheelchair
to ensure maximum safety.
11. ADJUSTMENTS
1
2
11.1 BACKREST HEIGHT
ADJUSTMENT
1. Peel back upholstery in the
lower edge of the backrest
cane to reveal two bolt heads.
2. Remove 8 bolts (4 x each
side) and reposition canes
as required.
3. Tighten bolts and
reattach upholstery.
1
2
11.2 BACKREST TENSION
ADJUSTMENT
1. Peel back upholstery
to reveal Velcro
adjustment straps.
2. Reposition straps to desired
position and reapply
upholstery securing in place
with Velcro.
NOTE: Ensure the rear wheels are located in symmetrical positions on both sides of the chair
to maintain stability.
1
2
11.3 SEAT DEPTH AND
REAR WHEEL
ADJUSTMENT
1. Remove all bolts as shown
and move backrest receiver
bracket to the desired
seat depth.
2. To adjust rear wheel
position and height, the
axle mount and receiver
can be adjusted as shown.
Once at the desired position,
ensure all hardware is
tightened securely.
