19
2.5 Installation of Memory Modules (DIMM)
This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,
and supports Dual Channel Memory Technology. For dual channel configuration,
you always need to install two identical (the same brand, speed, size and chip-
type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory
Technology. Otherwise, it will operate at single channel mode.
1. It is not allowed to install a DDR or DDR2 memory module into a
DDR3 slot; otherwise, this motherboard and DIMM may be
damaged.
2. If you install only one memory module or two non-identical
memory modules, it is unable to activate Dual Channel
Memory Technology.
3. Some DDR3 1GB double-sided DIMMs with 16 chips may not
work on this motherboard. It is not recommended to install them
on this motherboard.
Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

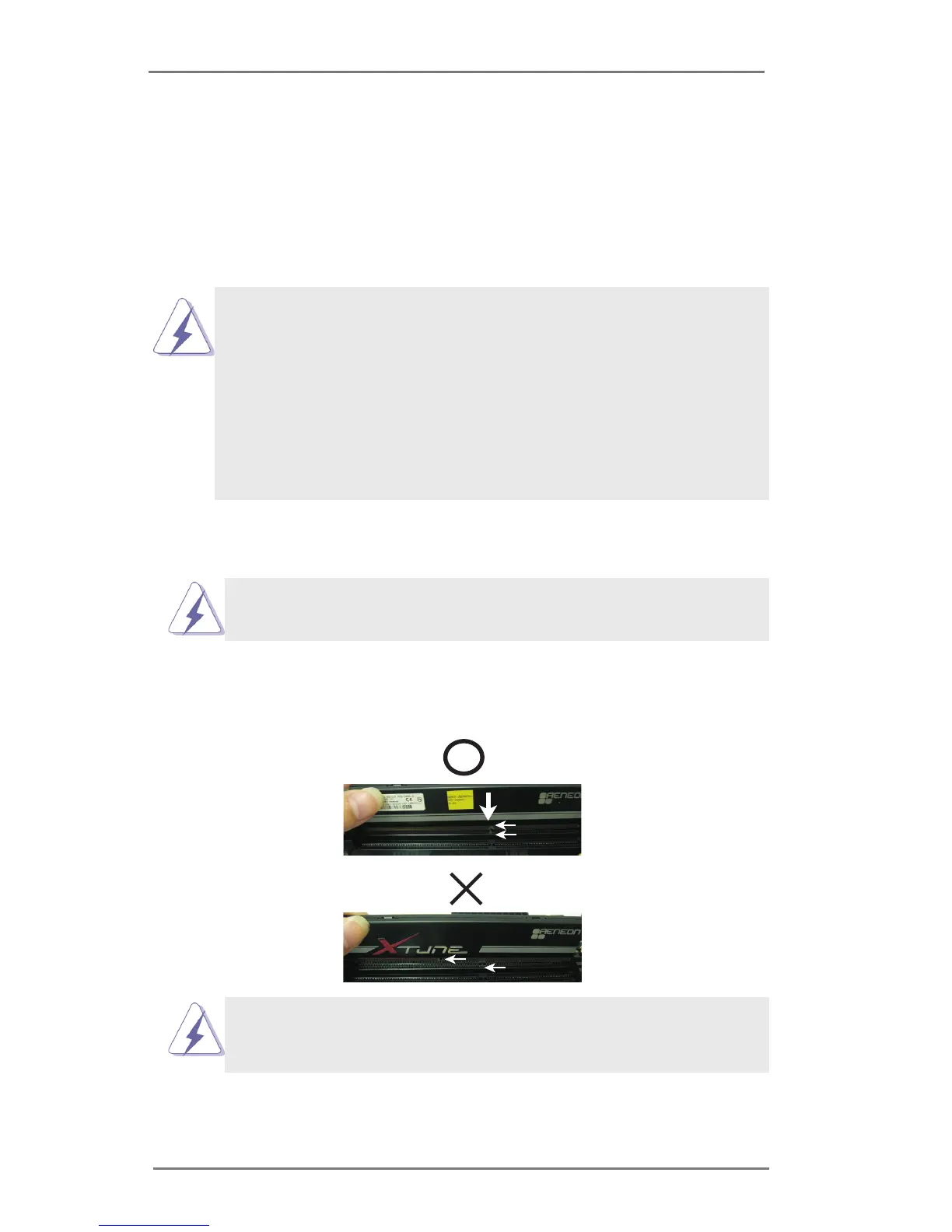

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the
break on the slot.
The DIMM only ts in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into
the slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends
fully snap back in place and the DIMM is properly seated.
notch
break
notch
break

Table of Contents

Other manuals for ASROCK B75M-GL R2.0

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK B75M-GL R2.0 and is the answer not in the manual?

ASROCK B75M-GL R2.0 Specifications

General IconGeneral
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR3-SDRAM
Maximum internal memory16 GB
Supported memory clock speeds1066, 1333, 1600 MHz
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Core i3, Intel Core i5, Intel Core i7
CPU fan connectorYes
USB 2.0 connectors-
Number of SATA II connectors5
S/PDIF in connectorNo
Internal memory typeDDR3
eSATA/USB 2.0 ports quantity0
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
CertificationFCC, CE, WHQL ErP/EuP Ready
Component forPC
Power source typeATX
Motherboard chipsetIntel B75
Audio output channels5.1 channels
Motherboard form factormicro ATX
Compatible operating systemsWindows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Supported storage drive interfacesSATA III
Maximum resolution2048 x 1536 pixels
PCI Express slots version2.0, 3.0
LAN controllerRealtek RTL8111E
Networking featuresLAN
Ethernet interface typeGigabit Ethernet
BIOS typeAMI
ACPI version1.1
BIOS memory size64 Mbit
Weight and Dimensions IconWeight and Dimensions
Depth213 mm
Width244 mm
