65

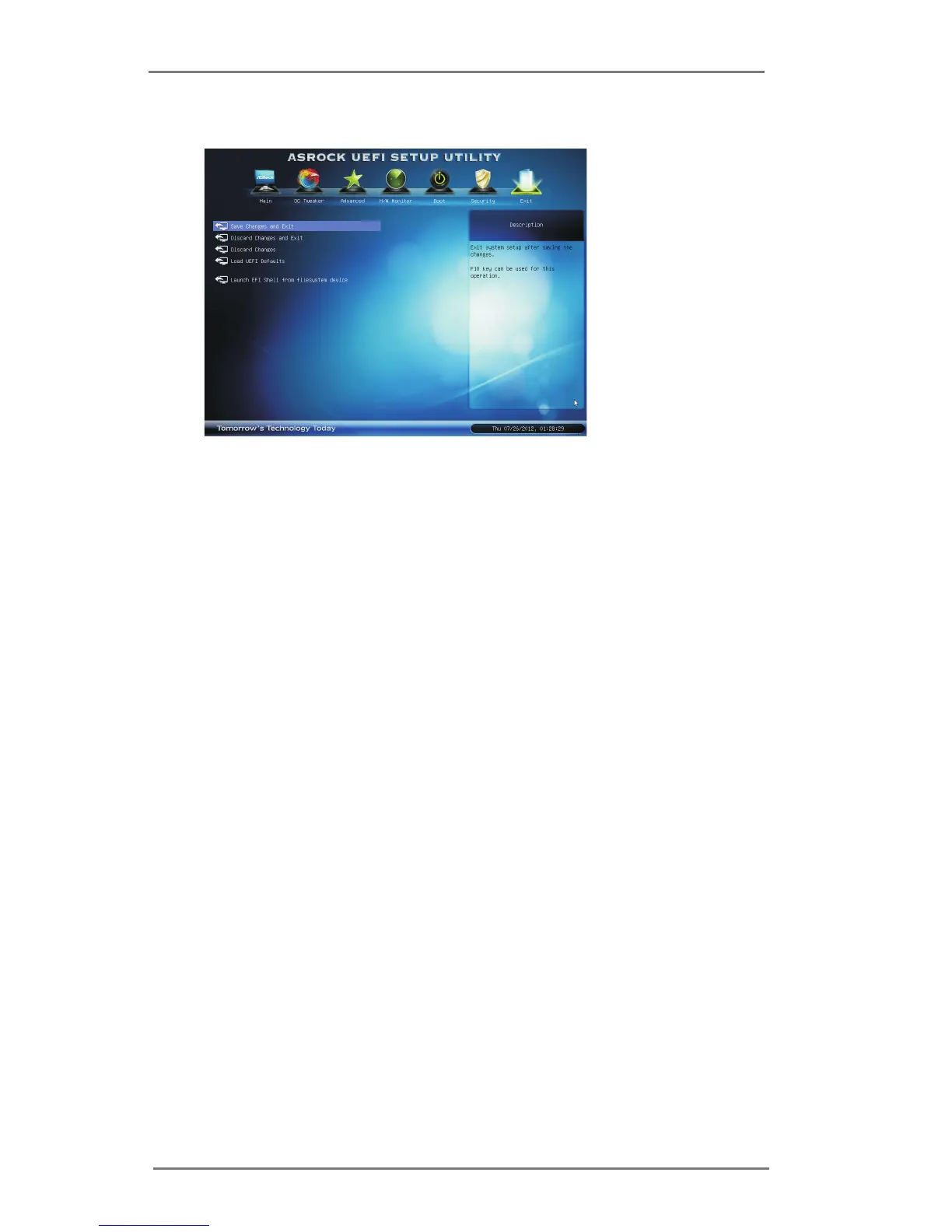

3.8 Exit Screen
Save Changes and Exit
When you select this option, the following message “Save conguration
changes and exit setup?” will pop-out. Select [Yes] to save the changes
and exit the UEFI SETUP UTILITY.
Discard Changes and Exit
When you select this option, the following message “Discard changes and
exit setup?” will pop-out. Select [Yes] to exit the UEFI SETUP UTILITY
without saving any changes.
Discard Changes
When you select this option, the following message “Discard changes?”
will pop-out. Select [Yes] to discard all changes.
Load UEFI Defaults
Load UEFI default values for all the setup questions. F9 key can be used
for this operation.
Launch EFI Shell from lesystem device
Attempts to Launch EFI Shell application (Shell64.efi) from one of the
available lesystem devices.

Table of Contents

Other manuals for ASROCK B75M-GL R2.0

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK B75M-GL R2.0 and is the answer not in the manual?

ASROCK B75M-GL R2.0 Specifications

General IconGeneral
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR3-SDRAM
Maximum internal memory16 GB
Supported memory clock speeds1066, 1333, 1600 MHz
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Core i3, Intel Core i5, Intel Core i7
CPU fan connectorYes
USB 2.0 connectors-
Number of SATA II connectors5
S/PDIF in connectorNo
Internal memory typeDDR3
eSATA/USB 2.0 ports quantity0
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
CertificationFCC, CE, WHQL ErP/EuP Ready
Component forPC
Power source typeATX
Motherboard chipsetIntel B75
Audio output channels5.1 channels
Motherboard form factormicro ATX
Compatible operating systemsWindows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Supported storage drive interfacesSATA III
Maximum resolution2048 x 1536 pixels
PCI Express slots version2.0, 3.0
LAN controllerRealtek RTL8111E
Networking featuresLAN
Ethernet interface typeGigabit Ethernet
BIOS typeAMI
ACPI version1.1
BIOS memory size64 Mbit
Weight and Dimensions IconWeight and Dimensions
Depth213 mm
Width244 mm
