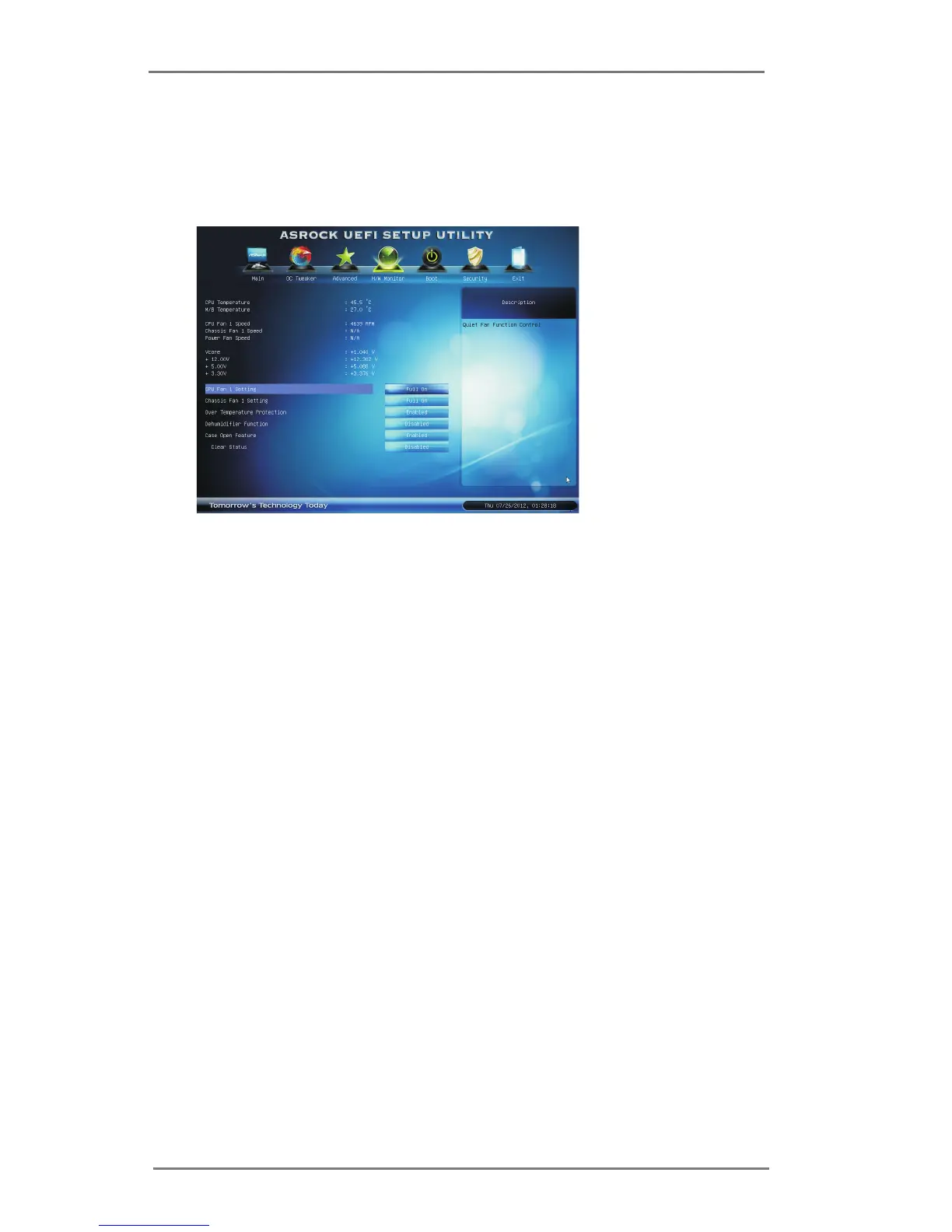

3.5 Hardware Health Event Monitoring Screen
In this section, it allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, CPU
fan speed, chassis fan speed, and the critical voltage.
CPU Fan 1 Setting
This allows you to set CPU fan 1’s speed. Conguration options: [Full On]
and [Automatic Mode]. The default value is [Full On].
Chassis Fan 1 Setting
This allows you to set chassis fan 1’s speed. Conguration options:
[Full On], [Automatic Mode] and [Manual]. The default value is [Full On].
Over Temperature Protection
Use this to enable or disable Over Temperature Protection. The default
value is [Enabled].
Dehumidier Function
Users may prevent motherboard damages due to dampness by enabling
“Dehumidier Function”. When enabling Dehumidier Function, the com-
puter will power on automatically to dehumidify the system after entering
S4/S5 state.
Dehumidier Period
This allows users to congure the period of time until the computer powers
on and enables “Dehumidier” after entering S4/S5 state.
Dehumidier Duration
This allows users to congure the duration of the dehumidifying process
before it returns to S4/S5 state.
Dehumidier CPU Fan Setting
Use this setting to congure CPU fan speed while “Dehumidier” is en-
abled.

ASROCK B75M-GL R2.0 Specifications

General

Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
CPU fan connector	Yes
USB 2.0 connectors	-
Number of SATA II connectors	5
S/PDIF in connector	No
Internal memory type	DDR3
eSATA/USB 2.0 ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Certification	FCC, CE, WHQL ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Supported storage drive interfaces	SATA III
Maximum resolution	2048 x 1536 pixels
PCI Express slots version	2.0, 3.0
LAN controller	Realtek RTL8111E
Networking features	LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	244 mm
