31

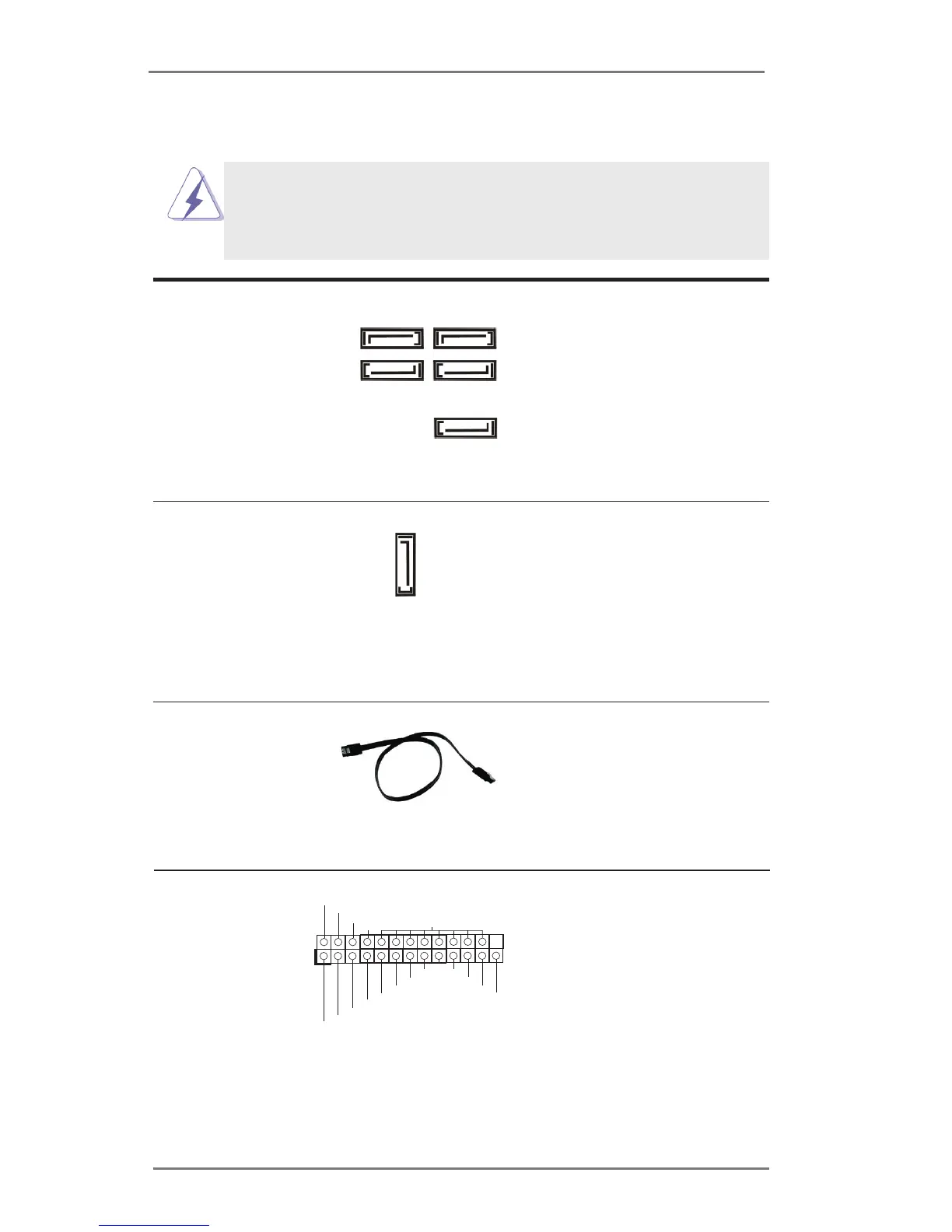

2.11 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These ve Serial ATA2 (SATA2)
(SATA2_1: see p.13, No. 12)
connectors support SATA data
(SATA2_2: see p.13, No. 17)
cables for internal storage
(SATA2_3: see p.13, No. 13)
devices. The current SATA2
(SATA2_4: see p.13, No. 14)
interface allows up to 3.0 Gb/s
(SATA2_5: see p.13, No. 16)
data transfer rate.
Serial ATA3 Connector This Serial ATA3 (SATA3)
(SATA3_0: see p.13, No. 7)
connector supports SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
SATA3_0
SATA2_1 SATA2_3
SATA2_2 SATA2_4
SATA2_5
Print Port Header This is an interface for print port
(25-pin LPT1)
cable that allows convenient
(see p.13, No. 24)
connection of printer devices.
1
AFD#
ERROR#
PIN IT#
GND
SLI N#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK #
BUSY
PE
SLC T
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA / SATA2 / SATA3 hard
disk or the SATA2 / SATA3
connector on this motherboard.
