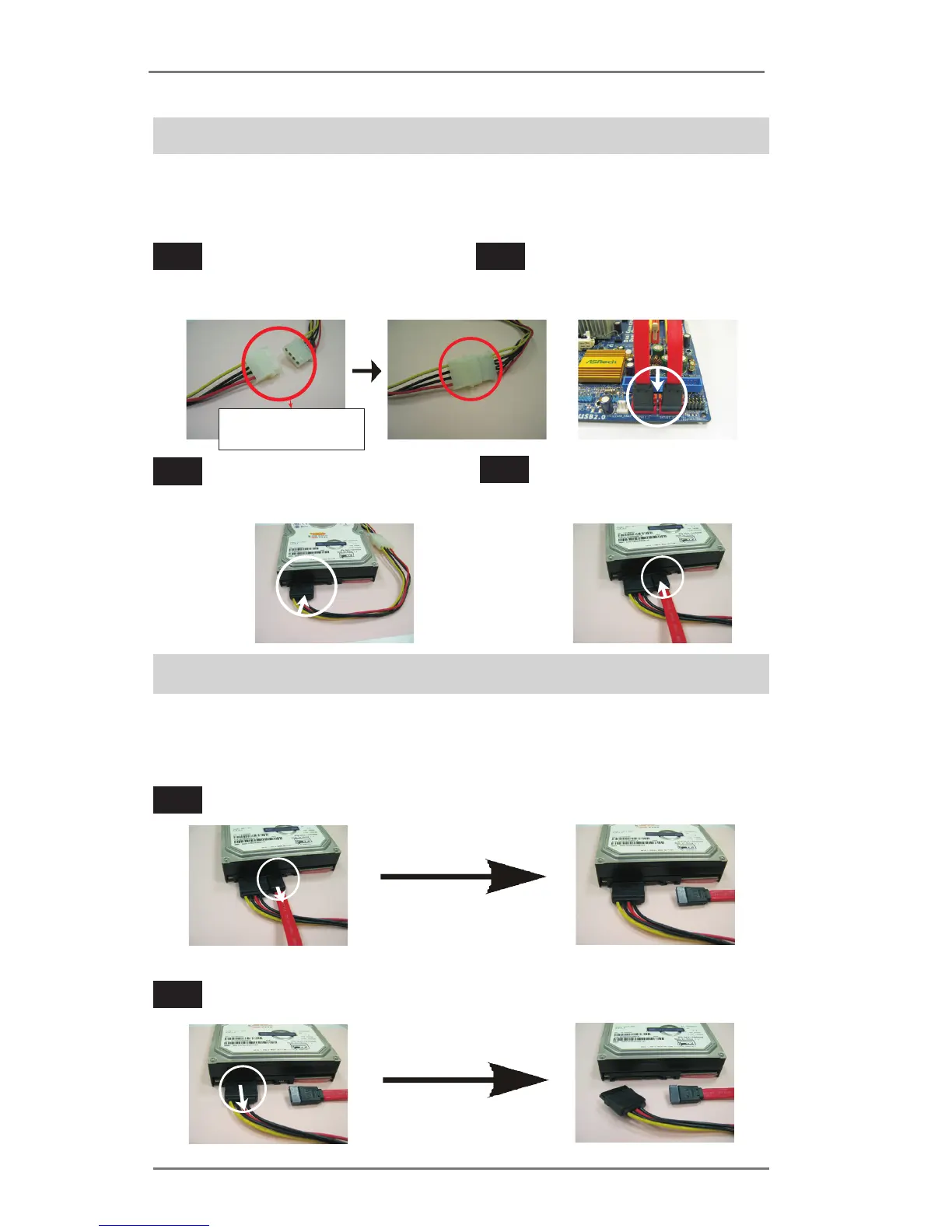

How to Hot Plug a SATA / SATA2 / SATA3 HDD:
Points of attention, before you process Hot Plug:
Please follow the instructions below to process Hot Plug, improper procedure will
cause the SATA / SATA2 / SATA3 HDD damage and data loss.
Connect SATA data cable to the
motherboard’s SATA2 / SATA3
connector.
Connect SATA 15-pin power cable
connector (Black) end to SATA / SATA2
/ SATA3 HDD.
Connect SATA data cable to
the SATA / SATA2 / SATA3 HDD.
How to Hot Unplug a SATA / SATA2 / SATA3 HDD:
Points of attention, before you process the Hot Unplug:
Please do follow below instruction sequence to process the Hot Unplug, improper
procedure will cause the SATA / SATA2 / SATA3 HDD damage and data loss.
Please connect a SATA power cable’s
1x4-pin end (White) to the power
supply’s 1x4-pin cable.
Step 1
Step 2
Step 3
Step 4
Step 2
SATA power cable 1x4-pin
power connector (White)
Unplug SATA data cable from SATA / SATA2 / SATA3 HDD side.
Step 1
Unplug SATA 15-pin power cable connector (Black) from SATA / SATA2 / SATA3 HDD side.

ASROCK B75M-GL R2.0 Specifications

General

Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
CPU fan connector	Yes
USB 2.0 connectors	-
Number of SATA II connectors	5
S/PDIF in connector	No
Internal memory type	DDR3
eSATA/USB 2.0 ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Certification	FCC, CE, WHQL ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Supported storage drive interfaces	SATA III
Maximum resolution	2048 x 1536 pixels
PCI Express slots version	2.0, 3.0
LAN controller	Realtek RTL8111E
Networking features	LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	244 mm
