ASROCK GENOAD8X-2T/BCM - I;O Panel

10 11
English

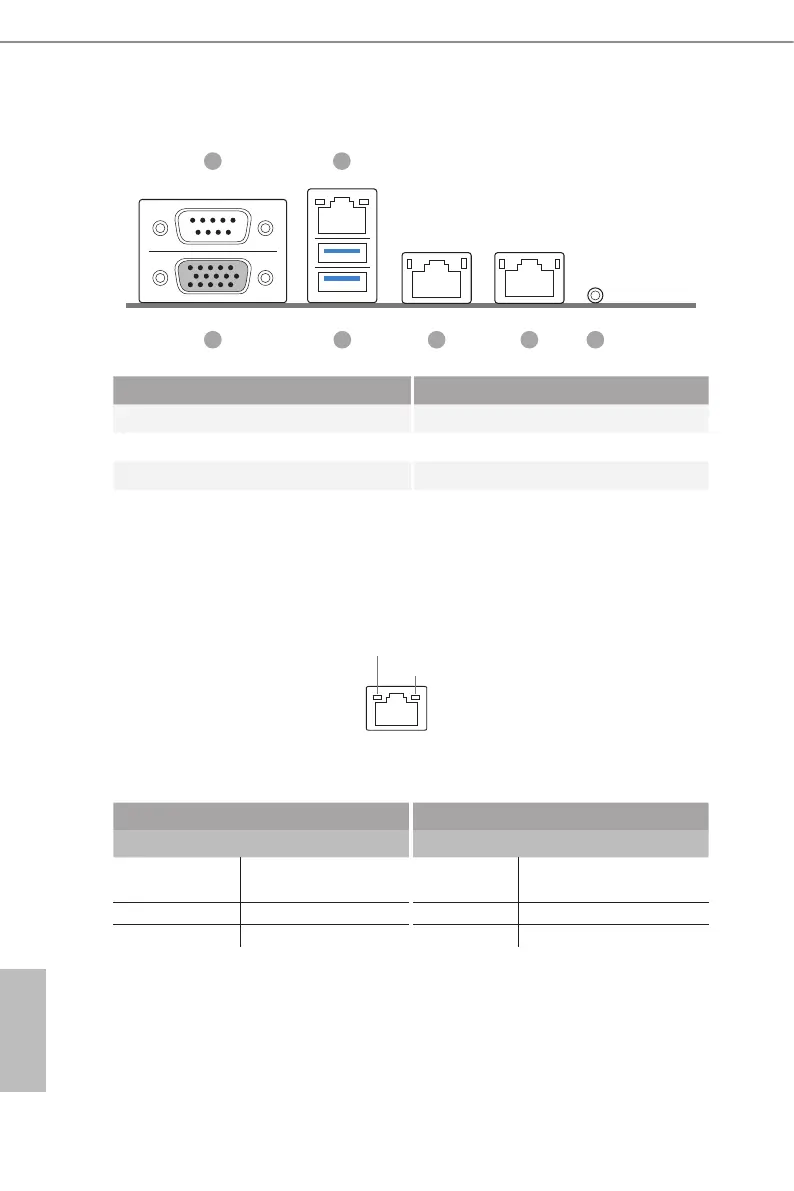

1.6 I/O Panel
2
6
53
1
4
7
No. Description No. Description
1 VGA Port (VGA) 5 10G LAN RJ-45 Port (LAN1)**
2 Serial Port (COM1) 6 10G LAN RJ-45 Port (LAN2)**
3 USB 3.2 Gen1 Ports (USB3_1_2) 7 UID Switch (UID1)
4 IPMI LAN Header (IPMI_LAN1)*
LAN Port LED Indications
*ere are two LEDs next to the IPMI LAN port. Please refer to the table below for the
LAN port LED indications.
LAN Port
ACT/LINK LED
SPEED LED
IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection or no
link
Blinking Yellow Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
