2.10 M.2 SSD Module Installation Guide
e M.2 Socket (M2_1/M2_2, Key M) supports type 2280/22110 M.2 PCI Express module
up to Gen4 x4 (16GT/s x4).
Installing the M.2 SSD Module

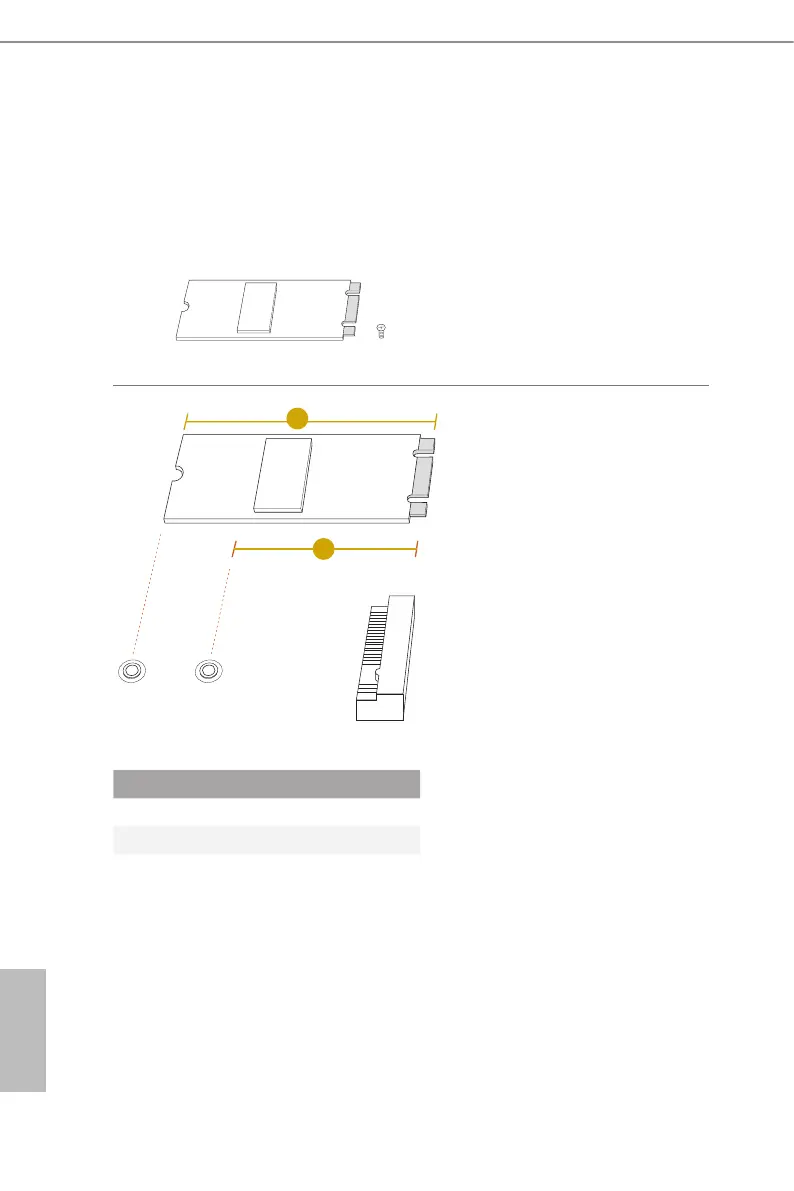

Step 1
Prepare a M.2_SSD module and the
screw.
2
1
AB
Step 2
Depending on the PCB type and
length of the M.2 SSD module, nd
the corresponding nut location to be
used.
No. 1 2
Nut Location A B
PCB Length 8cm 11cm
Module Type Type2280 Ty pe 22110
