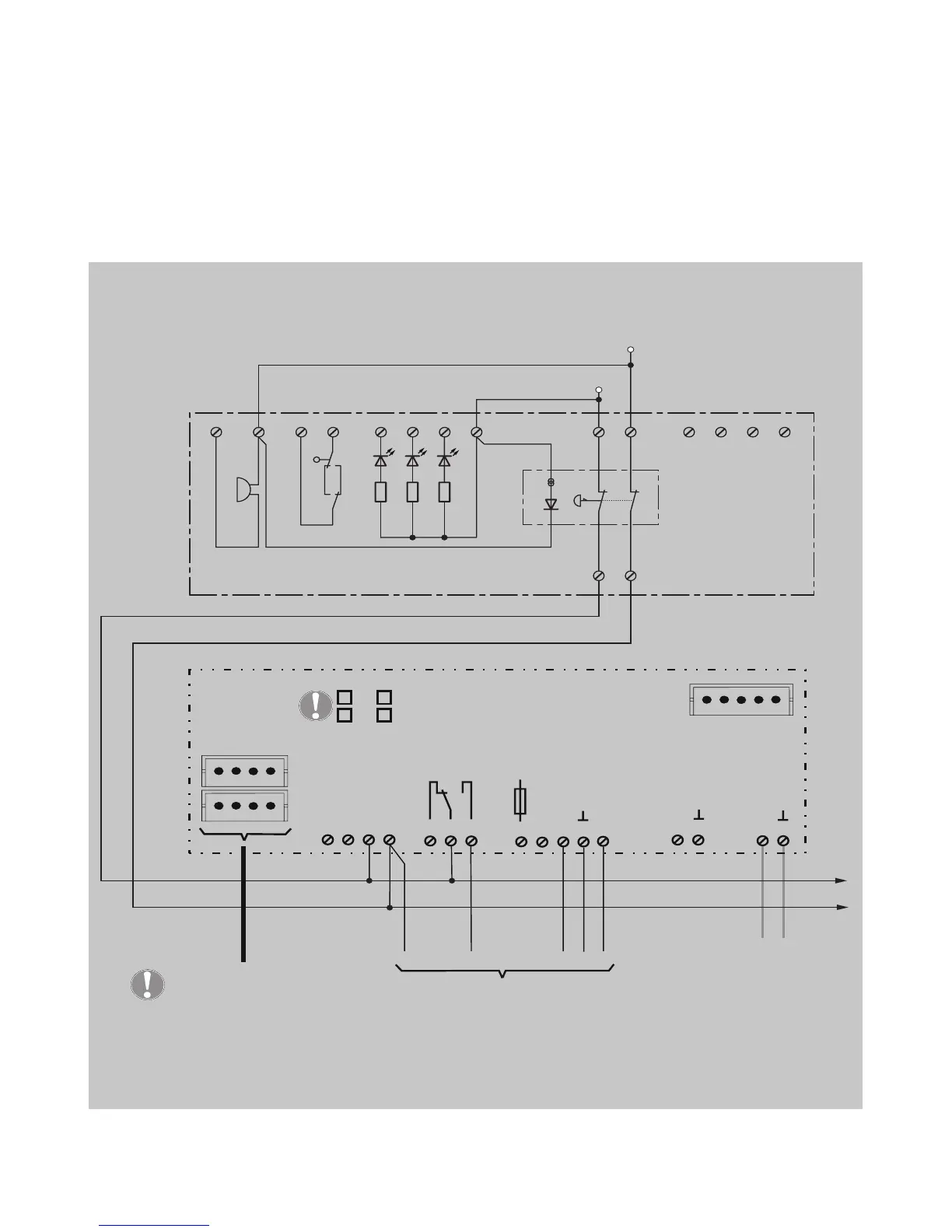

Circuit diagram
S2
JP
1
2
3
S
+
-
+
-
5 8 7 6 9121110 31 16151413
4
2
F1
Littelfuse
154001
1AF
2
1
3
4
5
6
7
8
9
11
12
10
13
14
15
16
AB ED F
Data
LB1
LB2
Power supply via a external power unit
12 - 24 VDC +15% / -10%
according to the connected
locking element
Connection of the
respective locking
element
Power supply via
SYSCON 4
SYSCON-5
Emergency button
1380
SYSCON-4
max. 24V / 1A
See instruction D00470..
Remove jumpers LB1/LB2
To additional 1385
TS-Bus to
Bus-panel
(permanently occupied
central point)
Kl. 4
Kl. 3, 6
