Concealed Vertical Rod Exit Device
7220
Installation Instructions
2
80-9472-0020-000 10/23
1-800-438-1951 • www.assaabloy.com
Copyright © 1999, 2013, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

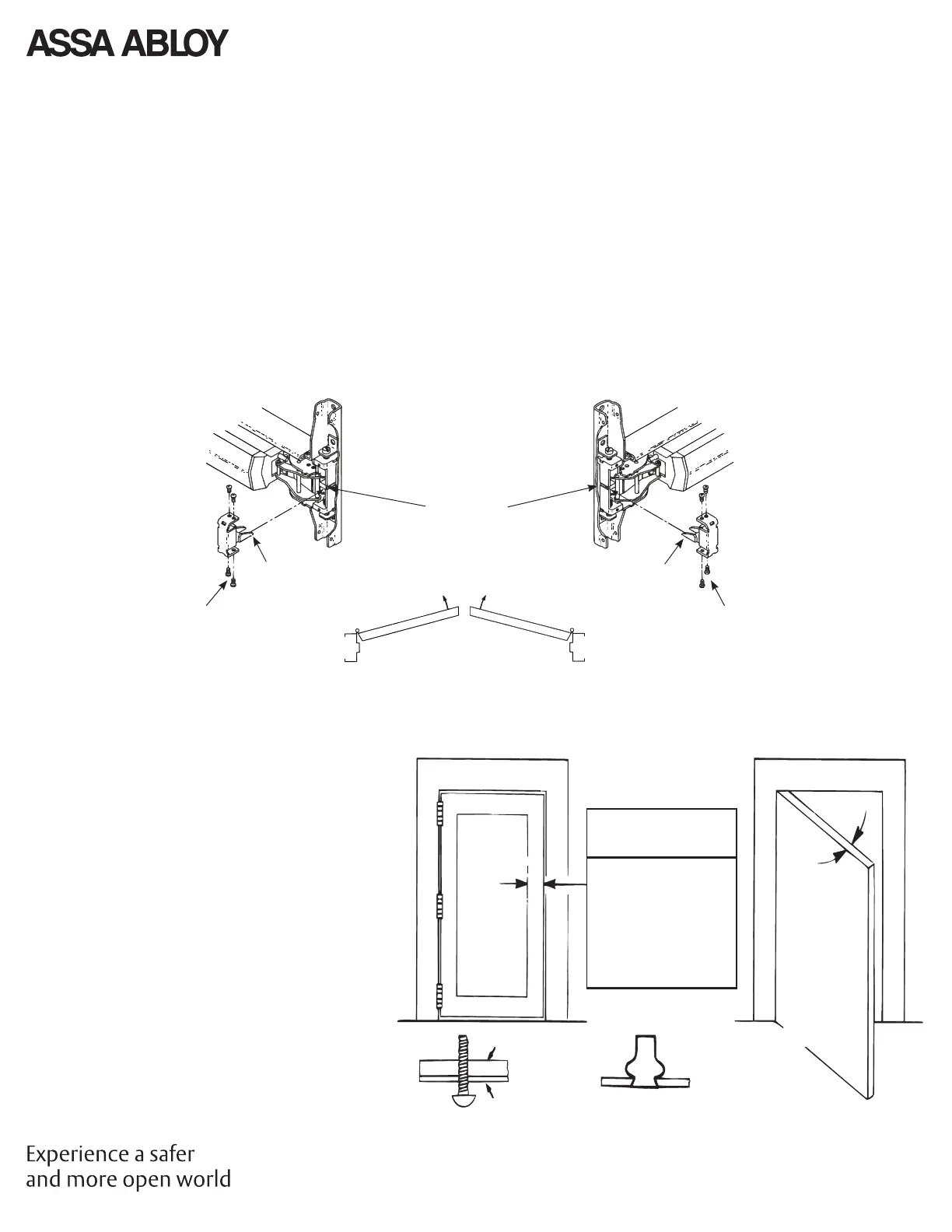

To Change Hands
1. Remove four (4) screws and Vertical Lifter Assembly.
2. Rotate device to opposite hand (180 degrees).
3. Insert Lifter Assembly under Lift Block and re-install screws.
Check Before Starting
Unreinforced Doors or Frames
Doors and Frames with walls having a structural
thickness (metal skin plus reinforcement or solid
hardwood) to engage less than (3) full screw threads
are considered unreinforced.
Unreinforced Doors: Use SNB (sex nuts and bolts).
Unreinforced Frames: Use Blind Rivet Nuts.
Recommended fasteners for unreinforced openings
are not necessarily supplied by ASSA ABLOY.
The device must seat fl ush on the door surface.
To clear raised molding, consult the factory.
Blind Rivet Nut
Door Skin
Reinforcement
Door Must Swing Freely
Minimum Door Style
2" (50 mm)
Door and frame
must meet structural
and dimensional
specifi cations on exit
device template(s)
for door and frame
preparation.
RHR Device LHR Device
RHR Door LHR Door
Lift Block
Vertical Lifter AssemblyVertical Lifter Assembly
(4) 8-32 x 3/16" PRHMS(4) 8-32 x 3/16" PRHMS
Under
Lift Block
Under
Lift Block
Maintenance
• Periodically remove covers and coat mechanisms with a silicone base lubricant. This is particularly required in corrosive
environments for proper product function.
• Check mounting fasteners periodically. Retighten if found loose. Apply screw locking compound (available at automotive part
stores) or change part fasteners if screws continue to back out.
• Periodic checks (and adjustments) of strikes are required to compensate for changes in the opening (e.g. door sagging).
