Hub LED
Indications
Online
Aperio Lock Offline
EAC Offline
Aperio Lock and EAC Offline
UHF Communication
Green
Green + One Red Flash
Green + Two Red Flashes
Green + Three Red Flashes
Yellow + Off, Fast Flash
Pairing Active
Yellow

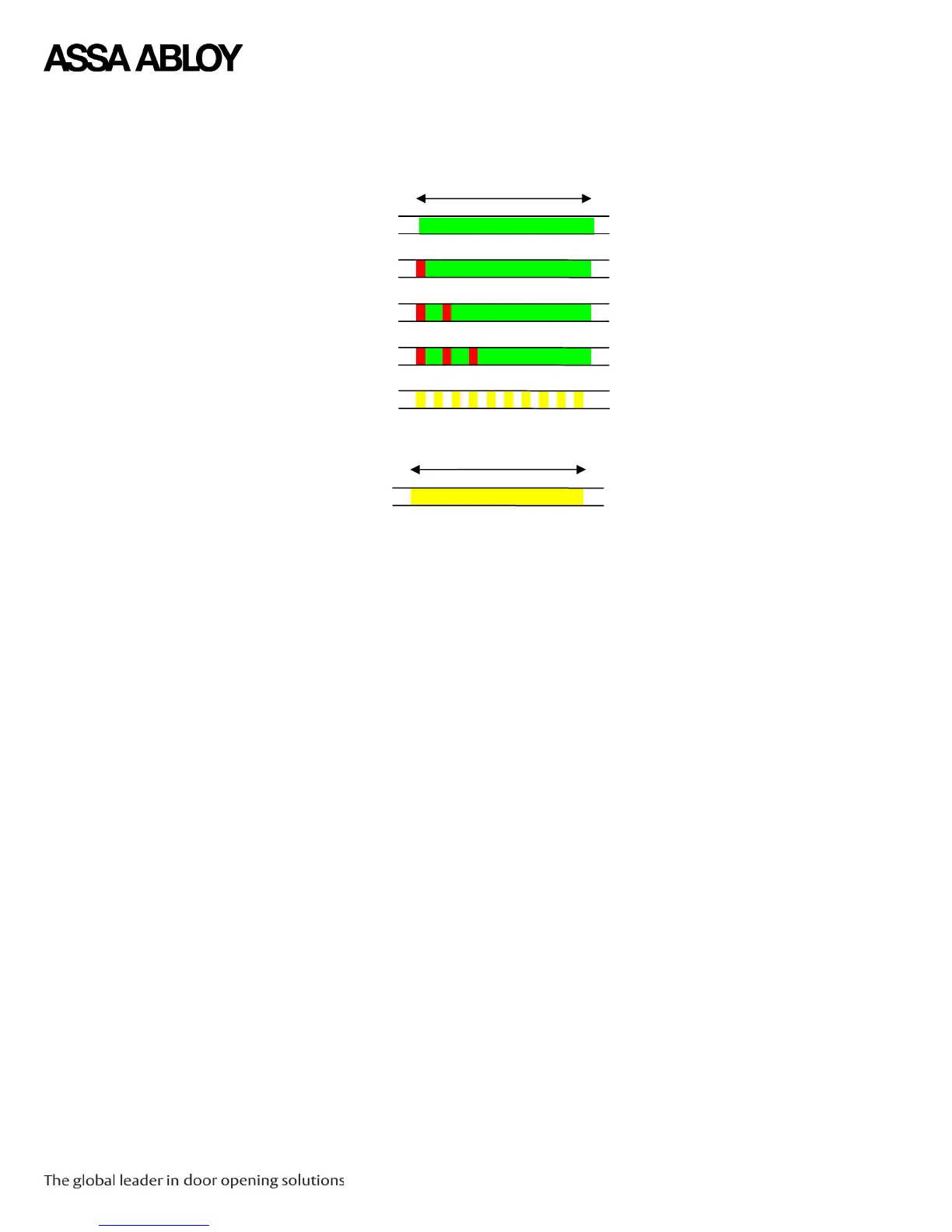

Figure 7. Communication Hub Normal LED Indications
Figure 8. Communication Hub Normal LED Indications
The Communication Hub has a single LED that supports an optical scheme with red, green and yellow.
The indication scheme is described by the two figures below:
