10
800-810-WIRE (9473) • www.sargentlock.com • A7113E
12/15/07 © SARGENT Manufacturing Company 2005, 2007. All rights reserved.
Keypad 10 Line Lock
8/14/08 Copyright © 2005, 2007,2008, SARGENT Manufacturing, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.

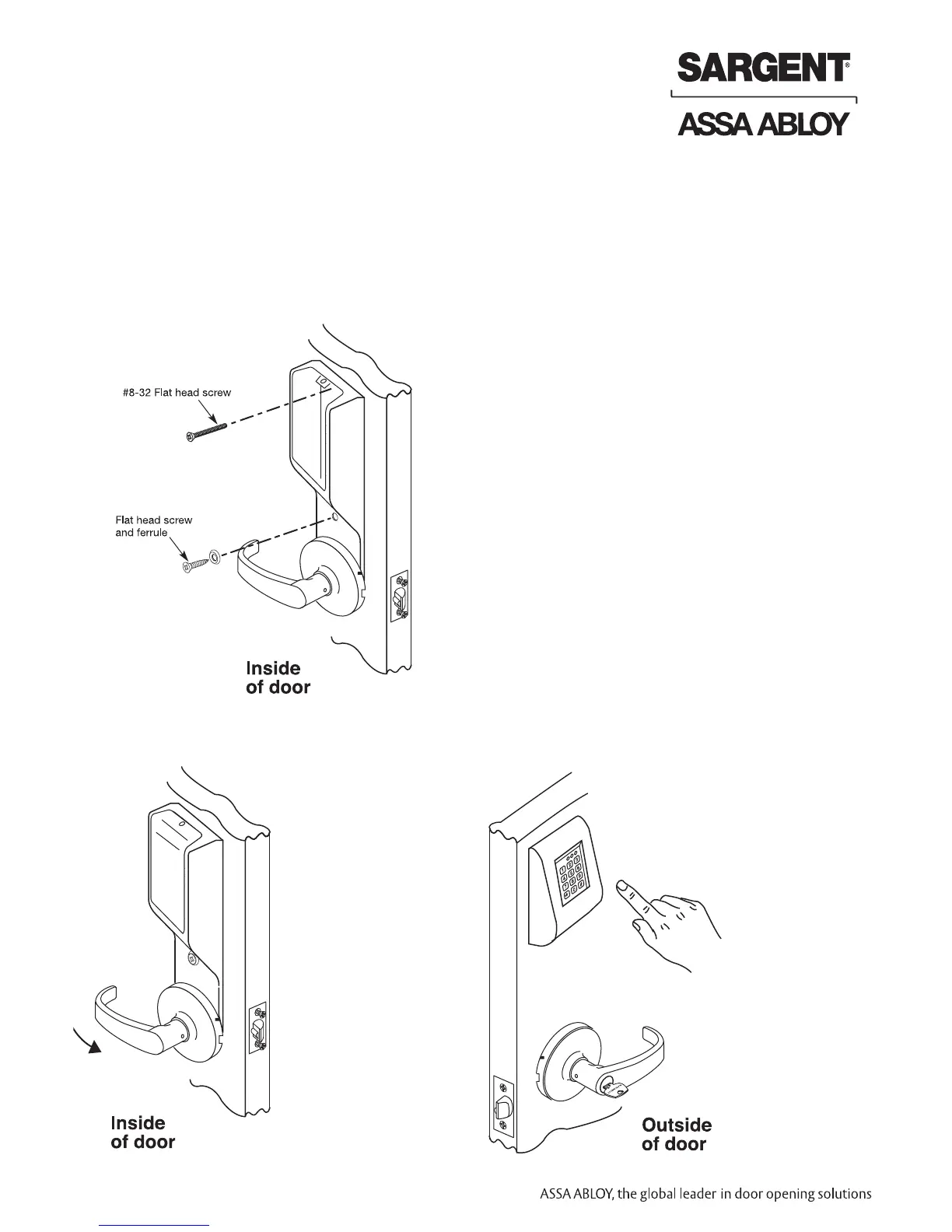

Step #10 Securing of Inside Escutcheon
• Remove black plastic battery cover with security hex wrench (provided)
• Carefully tuck the wire into the routed groove in wood door. The remainder can fit within
bottom portion of escutcheon. Make certain that wires are not pinched by obstructions in escutcheon
• Place inside escutcheon flat against the door
• Secure inside escutcheon with one flat head screw thru interior of inside escutcheon and into
post of exterior escutcheon
• Secure bottom of escutcheon with flat head screw and ferrule
Step #11 Test Lockset
• Rotate inside lever
to test for latch
bolt retraction
• Place key into
cylinder and rotate
key for latch
bolt retraction
• Tighten latch
bolt screws on
edge of door
• Test keypad
operation per
manual's
instructions
