Passport 1000 P2 Mortise Lock
Attach front plate with (2) #8-32 X 1/4” flat head
screws (Fig. 14).

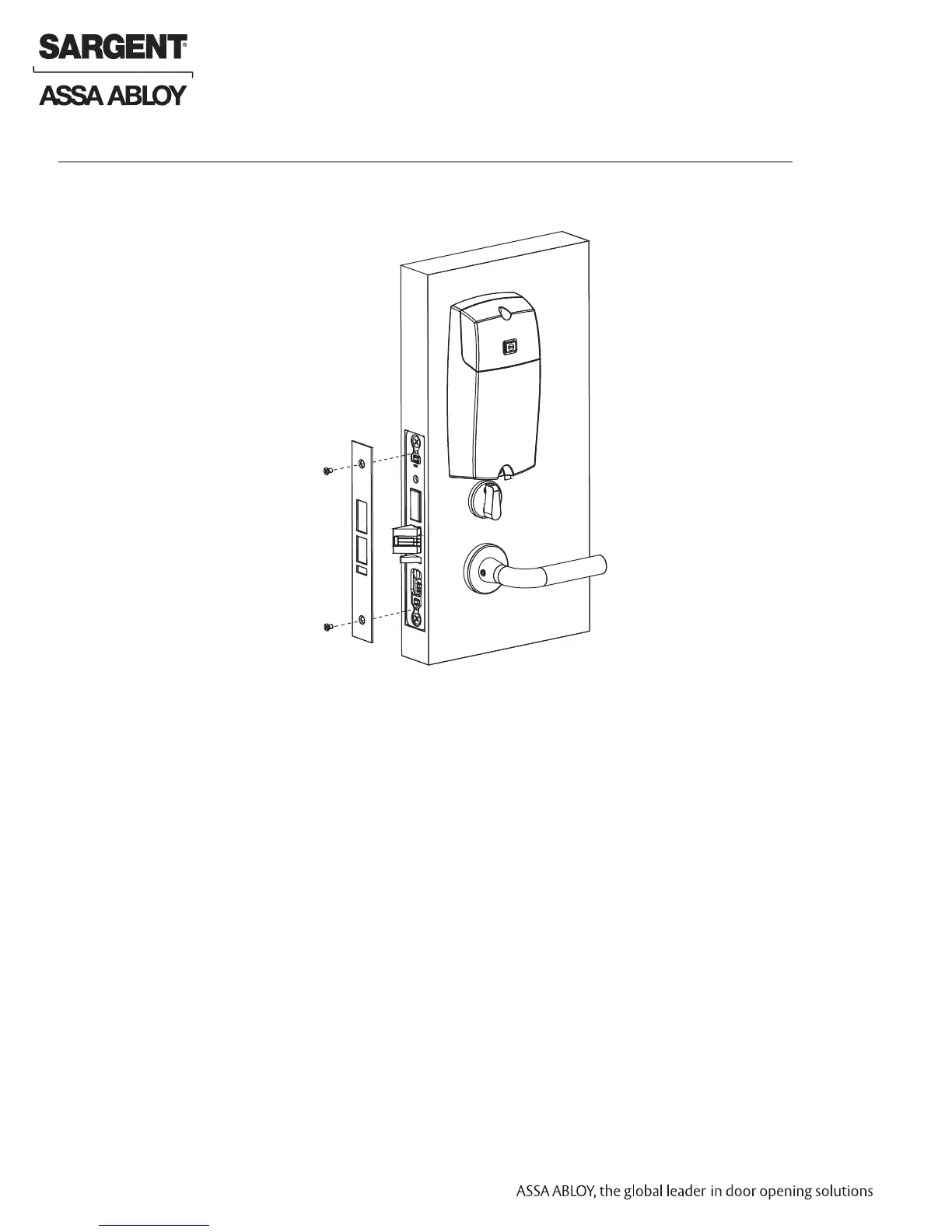

14 Attach Outside Front Plate
Inside of Door
(2) #8-32 x 1/4”
Flat Head Screws
Fig. 14
