For technical support contact Yale
®
at 800.438.1951 or support@yalelocks.com
An ASSA ABLOY Group brand
9
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

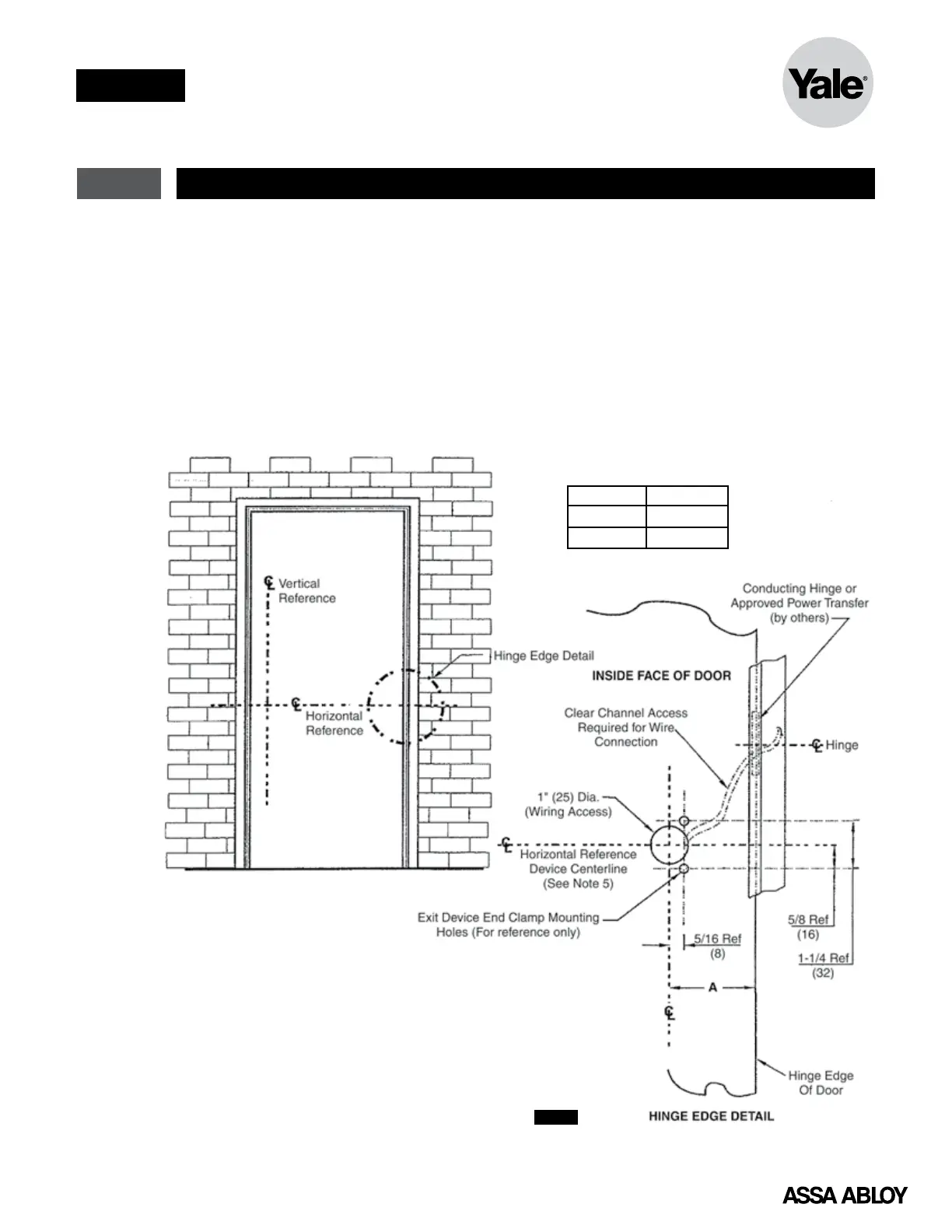

7 Non-ElectroLynx Door Prep
Figure 8
NOTE:
1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. LHR H.M. opening shown. Details are
typical for all opening materials (both
hands).
4. This preparation is an addition to
preparation shown on device template.
5. See device template to locate
centerline of device template.
6. Shields for wring access
recommended for insulated and
composite doors.
7. Locate and prepare wiring access
holes when installing device.
Exit Device
7100 Series
7200 Series
Dim. A
2-5/16 (59)
1-11/16 (43)
