12
P/N - - - Rev BYRL EMICL PBINSTL FUL
6

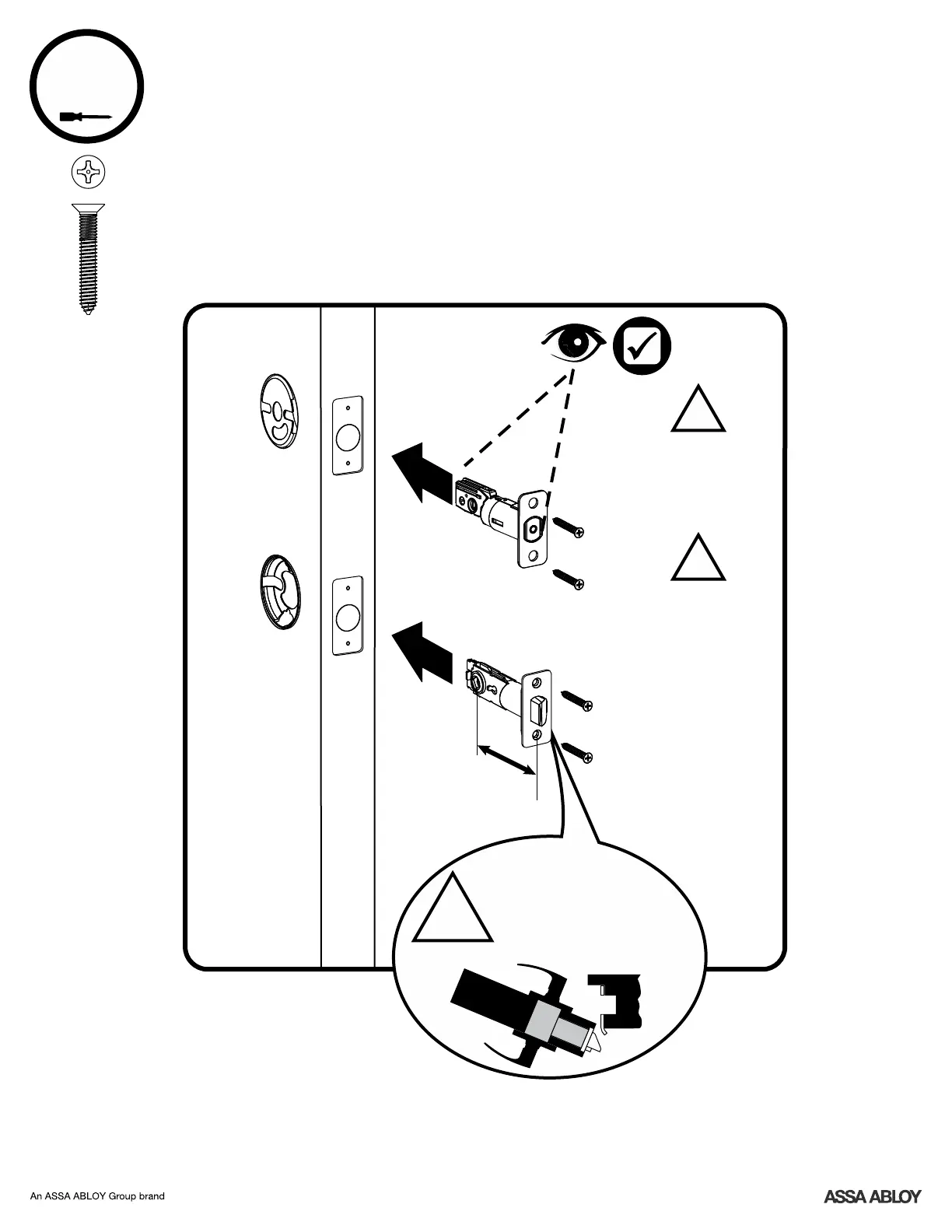

Installing Deadbolt Latch & Latchbolt
x4
7-16 / 8-32 x 1" UNCWS
Curved edge of latchbolt
faces direction door closes.
!
Choose latchbolt
based on backset.
(2-3/8" or 2-3/4")
Inside of Door
Bolt must be in
retracted (unlocked)
position before
installing.
!
Ensure arrow
stamped on deadbolt
is .UP
!
UP
