14
P/N - - - Rev BYRL EMICL PBINSTL FUL
8

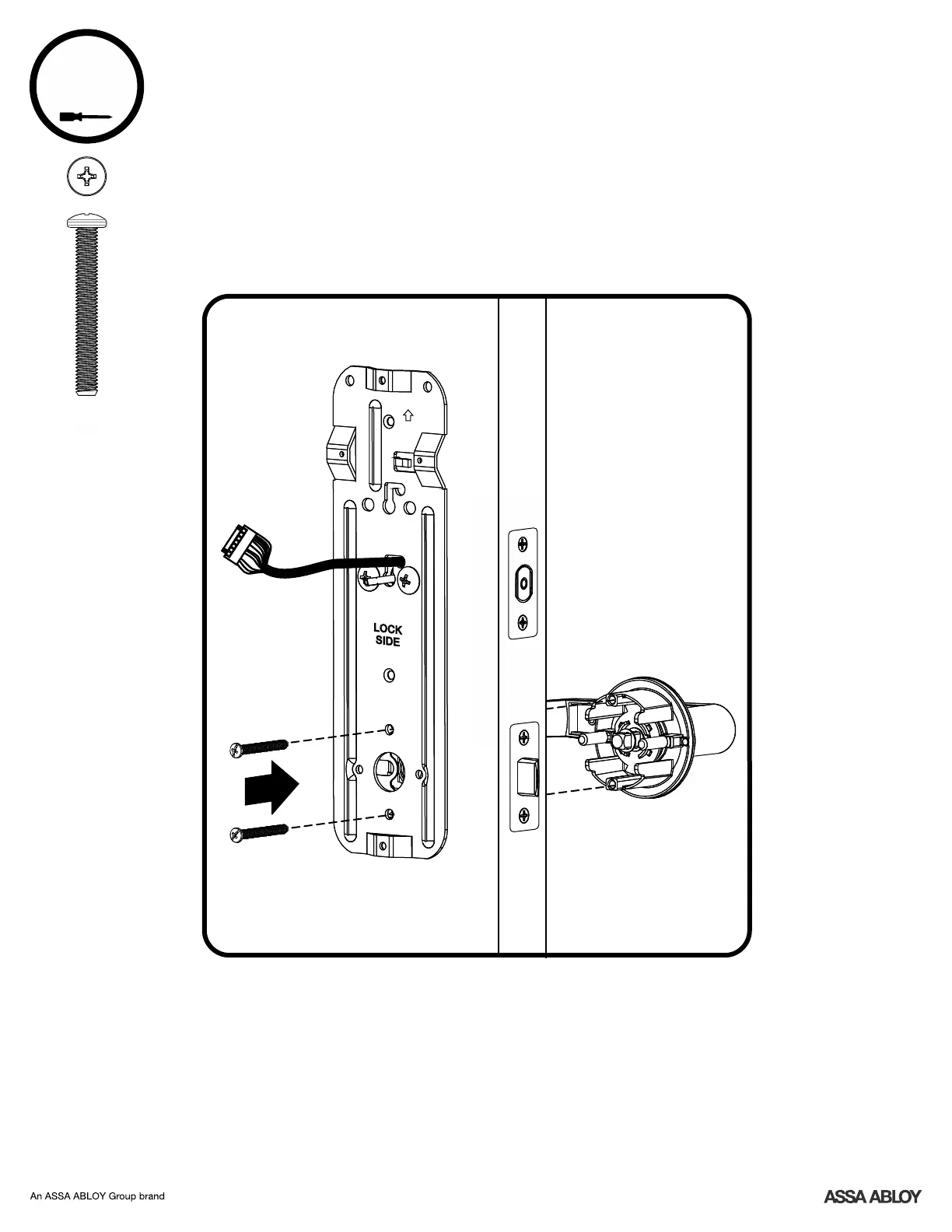

Installing Lock Chassis
10-32 x 1-1/2" PPHMS
Inside of Door
x2
U
P
