ASTRO RG21 - Indicators on Rear Panel

6
Indicators on Rear Panel
LED
Colour
Status
Description
WAN
Amber
OFF
No WAN Connection
ON
1000Mbit WAN Connection established
Blink
10/100Mbit WAN Connection established
Green
OFF
No WAN Connection
ON
WAN Connection established
Blink
WAN is transferring data
LAN1
LAN2
LAN3
Amber
OFF
No LAN Connection
ON
1000Mbit LAN Connection established
Blink
10/100Mbit LAN Connection established
Green
OFF
No LAN Connection
ON
LAN Connection established
Blink
LAN is transferring data

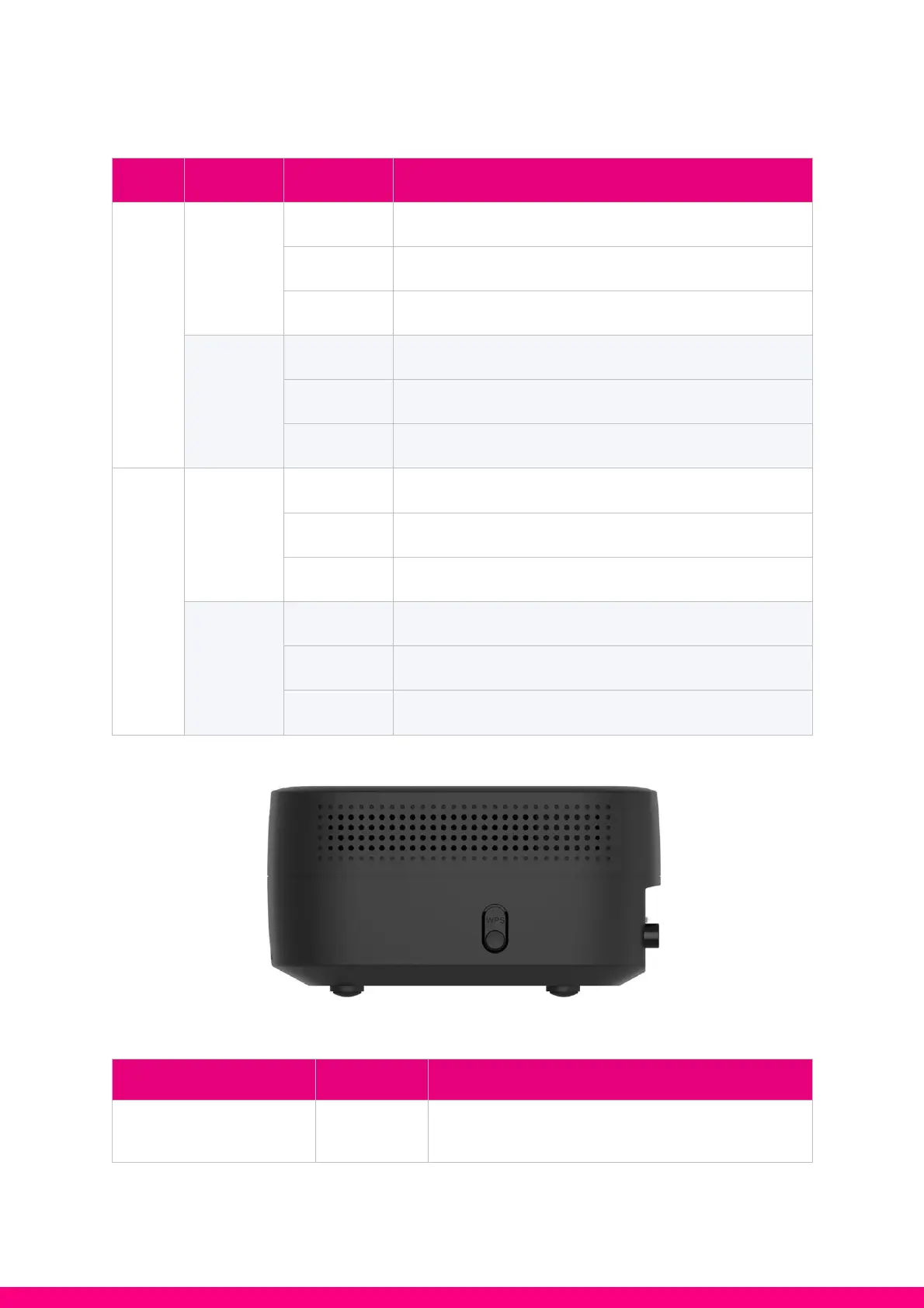

Broadside Panel Interface
Name
Colour
Description
WPS
Black
WPS button, press for 3 seconds to enable
MESH/WPS pairing process
