Asus B85-PLUS - CPU Socket Information

ASUS B85-PLUS
1-3
1.2.4 Layout contents
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel
®
4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium
®
, Celeron
®
processors.

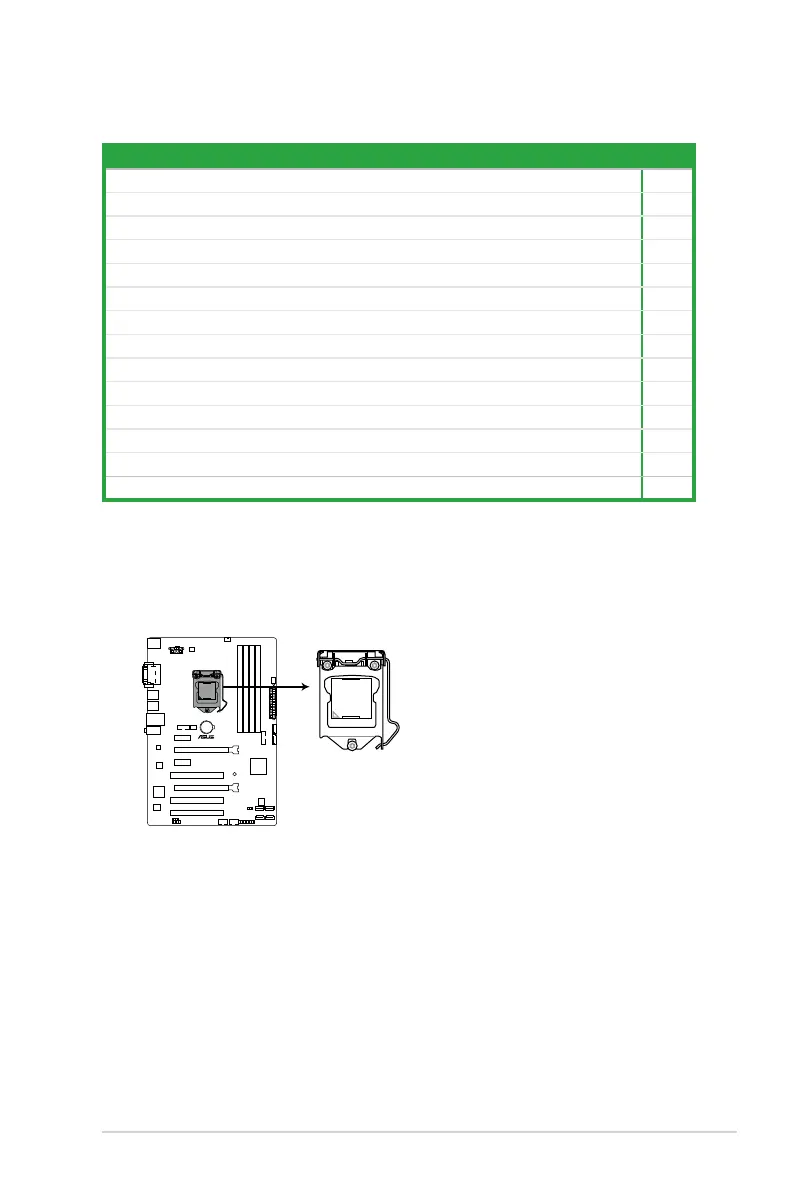

B85-PLUS
B85-PLUS CPU socket LGA1150
Connectors/Jumpers/Slots/LED Page
1. Serial port connectors (10-1 pin COM) 1-13
2. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 1-14
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1/2) 1-16
4. Intel
®
LGA1150 CPU socket 1-3
5. DDR3 DIMM slots 1-7
6. Intel
®
B85 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~4 [yellow]) 1-17
7. USB 3.0 connector (20-1 pin USB3_12) 1-16
8. Onboard LED (SB_PWR) 1-19
9. Clear RTC RAM (3-pin CLRTC) ) 1-10
10. Intel
®
B85 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~2 [dark brown]) 1-17
11. System panel connector (20-8 pin F_PANEL) 1-18
12. USB 2.0 connectors (10-1 pin USB11~14) 1-15
13. Digital audio connector (4-1 pin SPDIF_OUT) 1-14
14. Front panel audio connector (10-1 pin AAFP) 1-15
