Asus F1A55-M LX3 PLUS R2.0 User Manual

1.4 Accelerated Processing Unit (APU)
This motherboard comes with an FM1 socket designed for AMD
®
A- & E2- series accelerated
processors with AMD
®
Radeon™ HD 6000 series graphics.
Ensure that you use a APU designed for the FM1 socket. The APU ts in only one correct
orientation. DO NOT force the APU into the socket to prevent bending the pins and
damaging the APU!

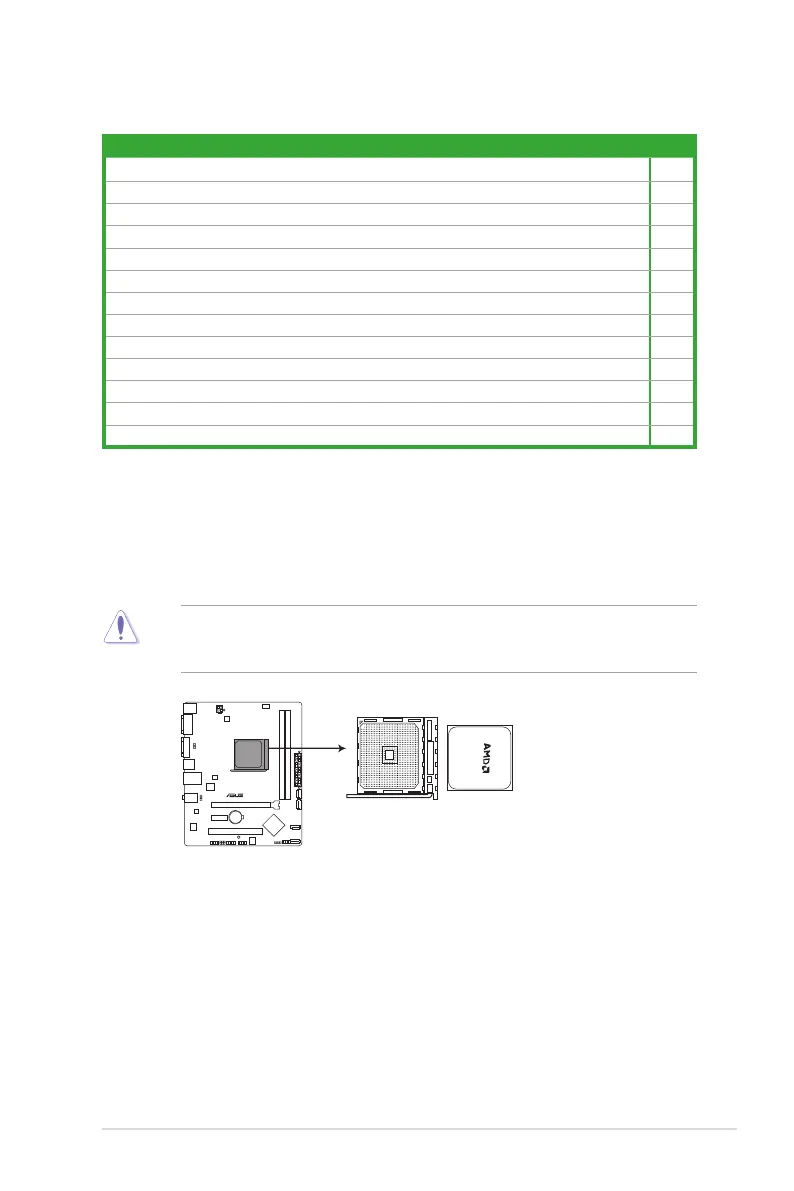

1.3.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. Keyboard power (3-pin KBPWR) 1-20
2. USB device wake-up (3-pin USBPW1-4, 3-pin USBPW5-8) 1-20
3. CPU and chassis fan connectors (4-pin CPU_FAN and 3-pin CHA_FAN) 1-22
4. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-23
5. AMD FM1 socket 1-7
6. DDR3 DIMM slots 1-11
7. SATA 3.0Gb/s connectors (7-pin SATA3G_1~4) 1-24
8. System panel connector (10-1 pin F_PANEL) 1-25
9. Speaker connector (4-pin SPEAKER) 1-23
10. Standby power LED (SB_PWR) 1-4
11. USB 2.0 connectors (10-1 pin USB56, USB78) 1-27
12. Clear RTC RAM (3-pin CLRTC) 1-19
13. Front panel audio connector (10-1 pin AAFP) 1-26
F1A55-M LX3 PLUS R2.0
F1A55-M LX3 PLUS R2.0 CPU socket FM1
ASUS F1A55-M LX3 R2.0 Series
1-7

Asus F1A55-M LX3 PLUS R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	AMD A55 (Hudson D2)
CPU Socket	FM1
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	32GB
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111F, 1 x Gigabit LAN Controller
Video Outputs	VGA, DVI
Power Connector	24-pin ATX
