Asus F1A55-M LX3 PLUS R2.0 User Manual

5. System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The HD LED lights up or ashes when data is read from or written to
the HDD.
• ATX power button/soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
PIN 1
PWRBTN
PLED+ PLED- PWR GND
HD_LED+
HD_LED-
Ground
Reset
F_PANEL
PLED
+HDLED RESET
F1A55-M LX3 PLUS R2.0

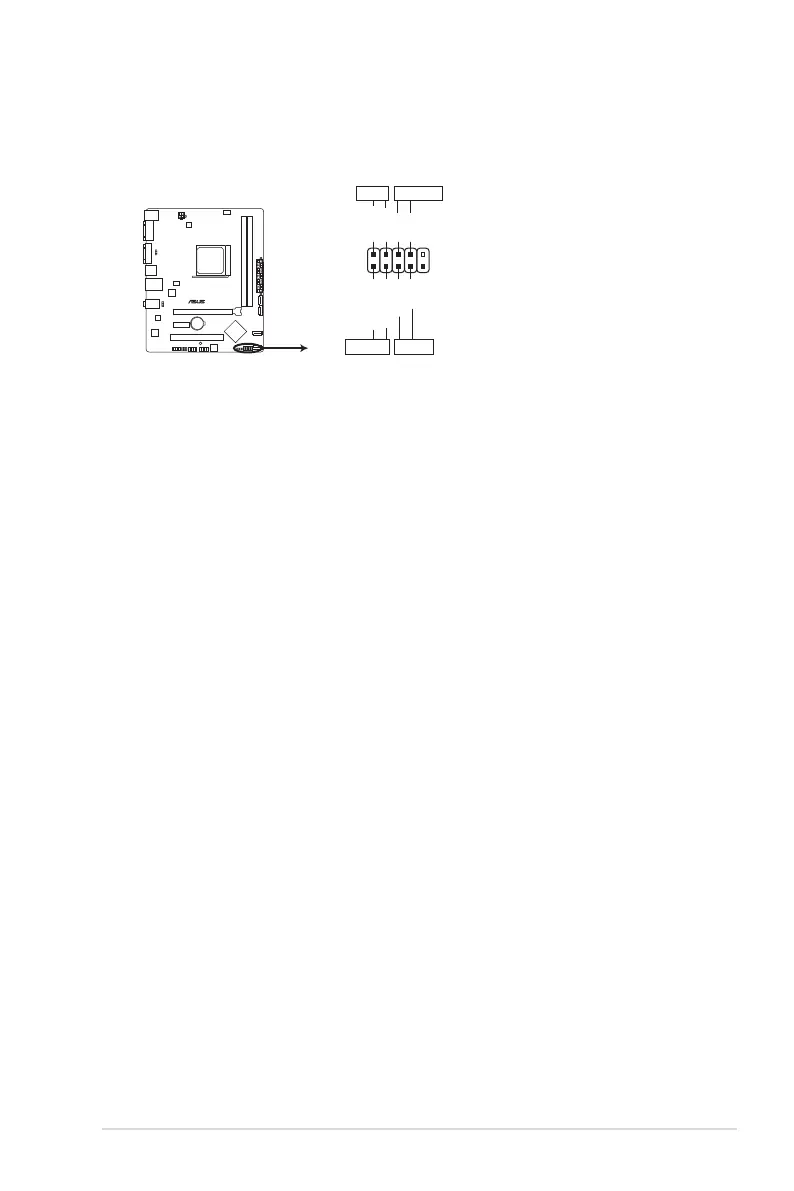

F1A55-M LX3 PLUS R2.0 System panel connector
ASUS F1A55-M LX3 R2.0 Series
1-25

Asus F1A55-M LX3 PLUS R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	AMD A55 (Hudson D2)
CPU Socket	FM1
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	32GB
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111F, 1 x Gigabit LAN Controller
Video Outputs	VGA, DVI
Power Connector	24-pin ATX
