Asus F1A55-M LX3 PLUS R2.0 User Manual

• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard high-denition audio capability.
• If you want to connect a high denition front panel audio module to this connector, set
the Front Panel Type item in the BIOS to [HD]. See section 2.5.5 Onboard Devices
Conguration for details.
• The front panel audio I/O module is purchased separately.

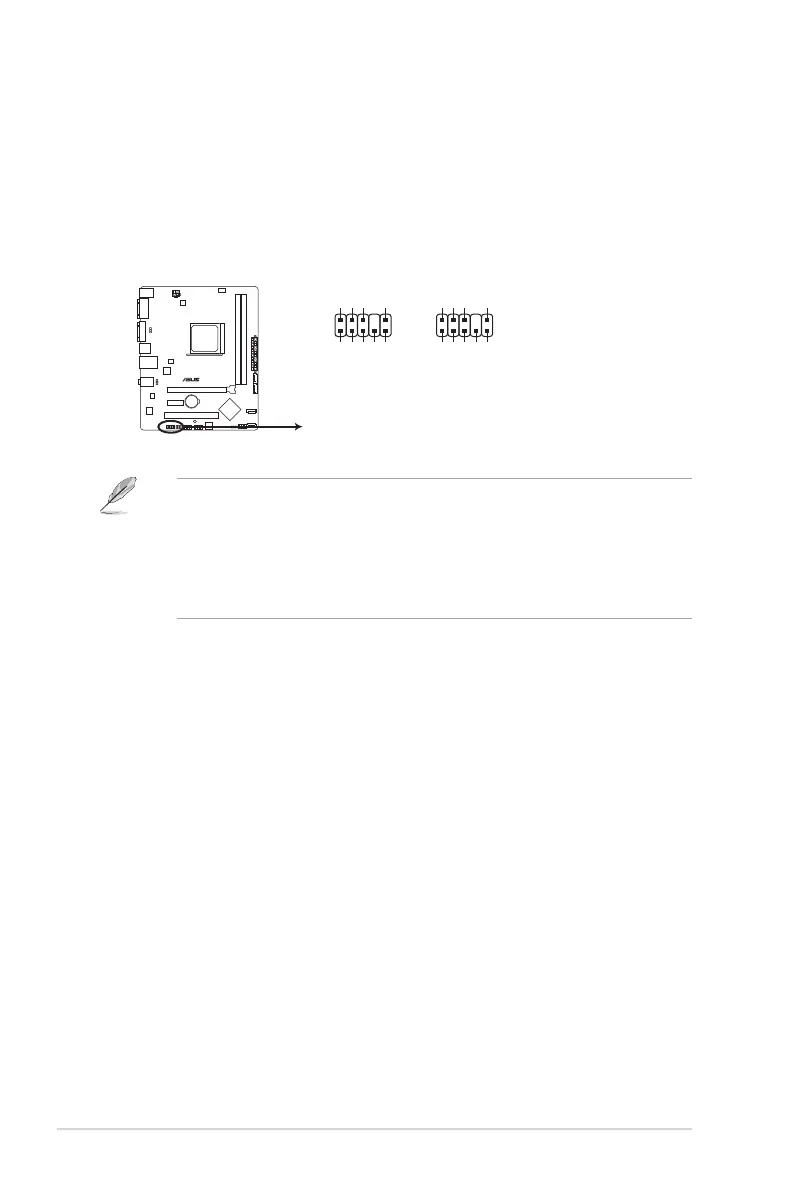

6. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
F1A55-M LX3 PLUS R2.0
F1A55-M LX3 PLUS R2.0 Front panel audio connector
AAFP
PIN 1
AGND NC SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
Chapter 1: Product introduction
1-26

Asus F1A55-M LX3 PLUS R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	AMD A55 (Hudson D2)
CPU Socket	FM1
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	32GB
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111F, 1 x Gigabit LAN Controller
Video Outputs	VGA, DVI
Power Connector	24-pin ATX
