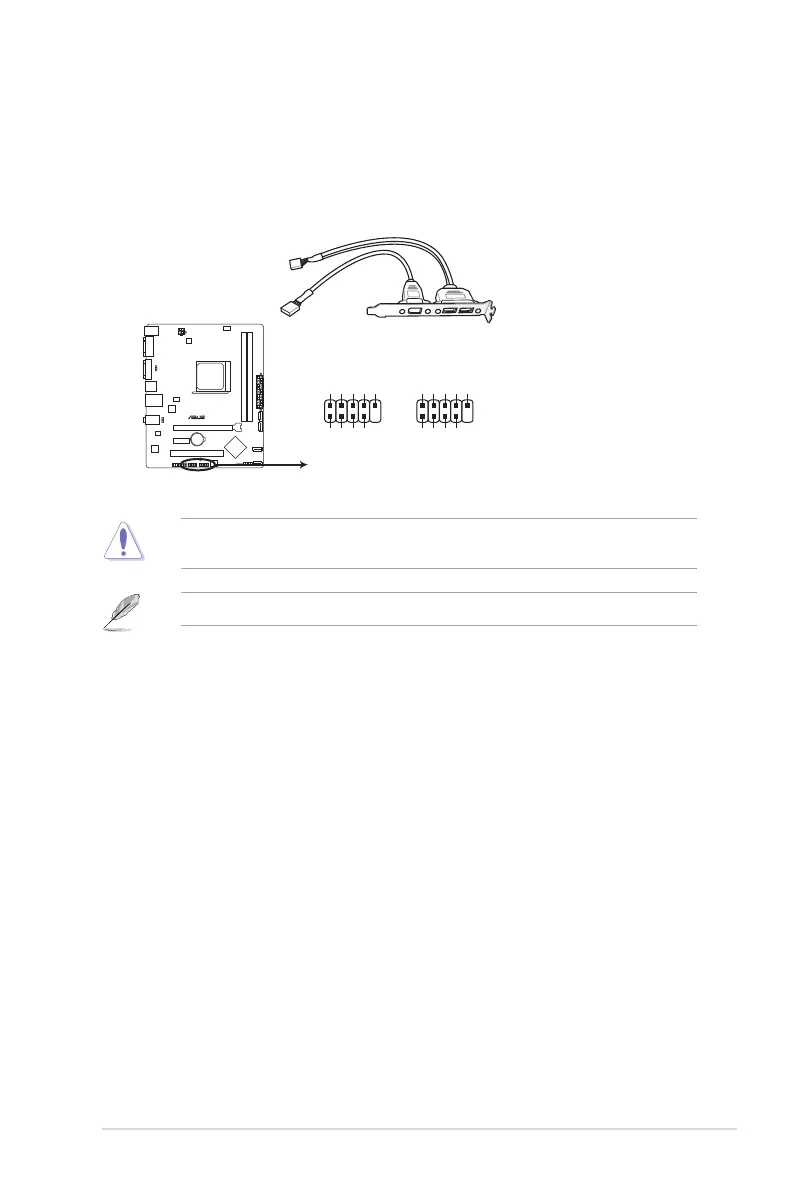

7. USB 2.0 connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
F1A55-M LX3 PLUS R2.0
F1A55-M LX3 PLUS R2.0 USB2.0 connectors
PIN 1
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
USB56
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
ASUS F1A55-M LX3 R2.0 Series
1-27

Asus F1A55-M LX3 PLUS R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	AMD A55 (Hudson D2)
CPU Socket	FM1
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	32GB
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111F, 1 x Gigabit LAN Controller
Video Outputs	VGA, DVI
Power Connector	24-pin ATX
