1.8 Connectors

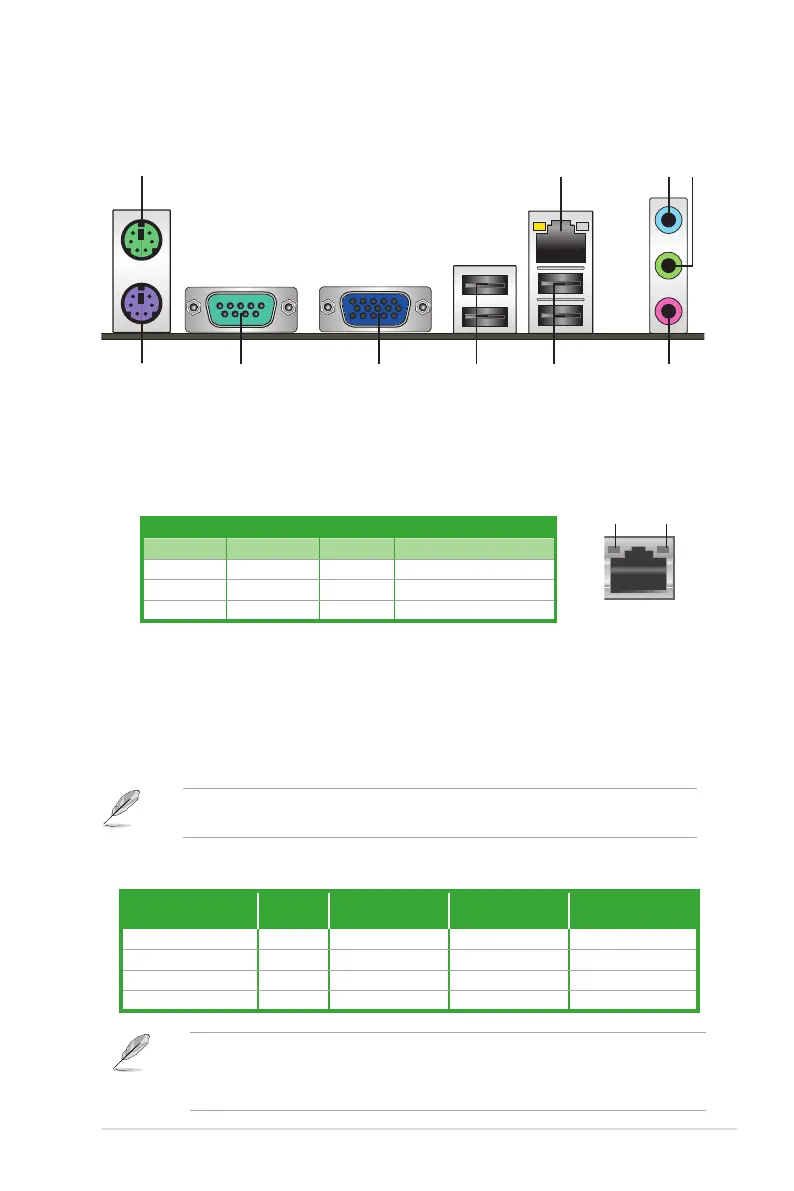

1.8.1 Rear panel ports
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
3 42
57 69 8
1
10
3. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
4. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel,
6-channel, and 8-channel congurations, the function of this port becomes Front
Speaker Out.
5. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table below for the function of the audio ports in the 2, 4, 6,
or 8-channel conguration.
Audio 2, 4, 6, 8-channel conguration
Port
Headset
2-channel
4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) - - - Side Speaker Out
To congure an 8-channel audio output:
Use a chassis with HD audio module in the front panel to support an 8-channel audio
output.
ASUS F1A55-M LX3 R2.0 Series
1-21

Asus F1A55-M LX3 PLUS R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	AMD A55 (Hudson D2)
CPU Socket	FM1
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	32GB
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
LAN	Realtek RTL8111F, 1 x Gigabit LAN Controller
Video Outputs	VGA, DVI
Power Connector	24-pin ATX
