5-17
P11C-C/4L

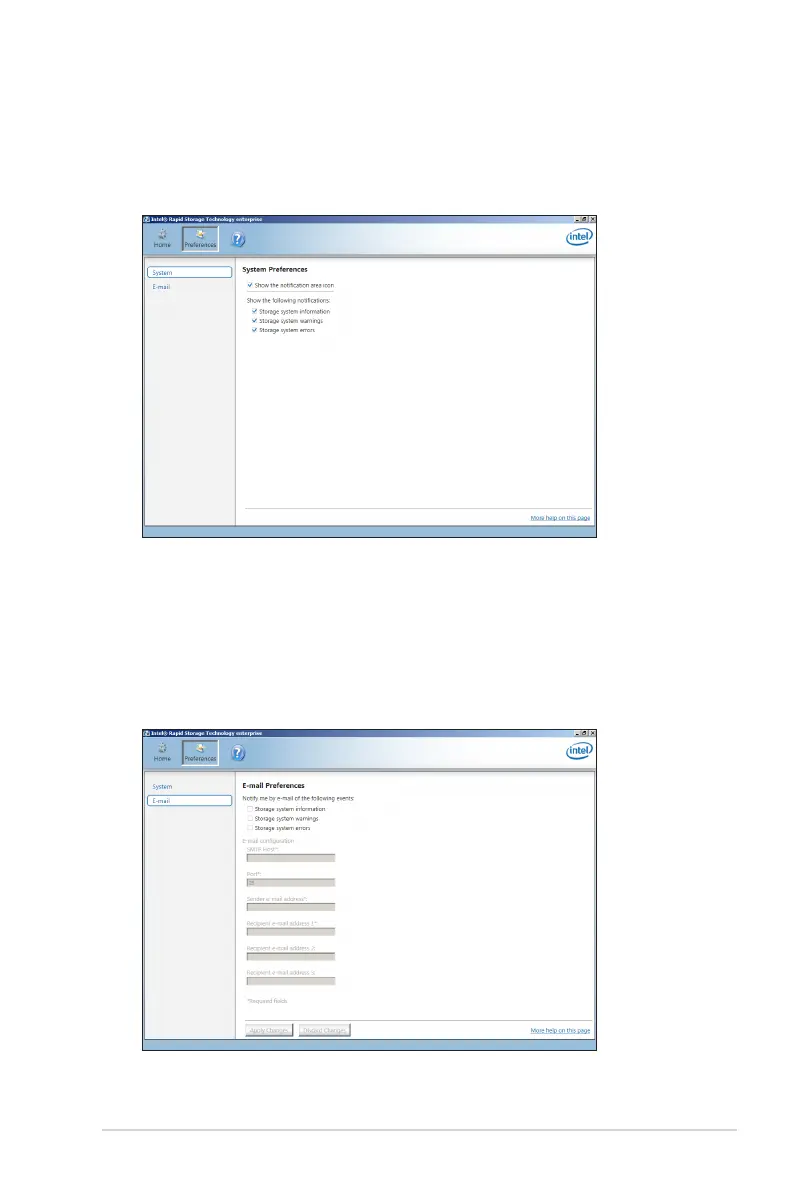

5.3.4 Preferences
System Preferences
Allow you to set to show the notication area icon and show system information, warning, or
errors here.
E-Mail Preferences
Allow you to set to sent e-mail of the following events:
•
Storage system information
•
Storage system warnings
•
Storage system errors
122
124
Table of Contents
default chapter
3
Table of Contents
3
Safety Information
7
About this Guide
8
P11C-C/4L Specifications Summary
10
Chapter 1: Product Introduction
13
Welcome
14
Package Contents
14
Serial Number Label
15
Special Features
15
Product Highlights
15
Innovative ASUS Features
16
Chapter 2: Hardware Information
17
Before You Proceed
18
Motherboard Overview
19
Placement Direction
19
Screw Holes
19
Motherboard Layout
20
Central Processing Unit (CPU)
22
Installing the CPU
22
Installing the CPU Heatsink
25
Uninstalling the CPU Heatsink and Fan
26
Installing the CPU Heatsink in Rack
27
System Memory
28
Overview
28
Memory Configurations
28
Installing a DIMM on a Single Clip DIMM Socket
29
Expansion Slots
30
Installing an Expansion Card
30
Configuring an Expansion Card
30
Interrupt Assignments
31
PCI Express X16 Slot (X16 Gen3 Link)
31
PCI Express X8 Slot (X8 Gen3 Link)
31
PCI Slot
31
Installing the Baseboard Management Card
33
Installing the Audio Card
34
Jumpers
35
Onboard Leds
39
Connectors
43
Rear Panel Connectors
43
Internal Connectors
44
Chapter 3: Powering up
57
Starting up for the First Time
58
Powering off the Computer
59
Using the os Shut down Function
59
Using the Dual Function Power Switch
59
Chapter 4: BIOS Setup
61
Managing and Updating Your BIOS
62
ASUS Crashfree BIOS 3 Utility
62
ASUS EZ Flash Utility
63
BUPDATER Utility
64
BIOS Setup Program
66
BIOS Menu Screen
67
Menu Bar
67
Menu Items
68
Submenu Items
68
Navigation Keys
68
General Help
68
Configuration Fields
68
Pop-Up Window
68
Scroll Bar
68
Main Menu
69
Advanced Menu
70
CPU Configuration
71
Power & Performance
73
Server ME Configuration
74
Trusted Computing
75
APM Configuration
75
Runtime Error Logging Settings
75
Onboard LAN Configuration
76
Serial Port Console Redirection
77
Intel TXT Information
79
PCI Subsystem Settings
80
USB Configuration
80
Network Stack Configuration
82
CSM Configuration
83
Nvme Configuration
84
WHEA Configuration
84
Iscsi Configuration
85
Tls Auth Configuration
85
Chipset Menu
86
System Agent (SA) Configuration
86
PCH-IO Configuration
90
Security Menu
92
Boot Menu
95
Monitor Menu
97
Tool Menu
98
Event Logs Menu
98
Change Smbios Event Log Settings
98
View Smbios Event Log
99
Server Mgmt Menu
100
System Event Log
101
Bmc Self Test Log
102
BMC Network Configuration
103
View System Event Log
104
BMC User Settings
104
Save & Exit Menu
105
Chapter 5: RAID Configuration
107
Setting up RAID
108
RAID Definitions
108
Installing Hard Disk Drives
109
Setting the RAID Item in BIOS
109
Intel ® Rapid Storage Technology Enterprise SATA Option ROM Utility
110
Creating a RAID Set
111
Deleting a RAID Set
113
Resetting Disks to Non-RAID
114
Exiting the Intel ® Rapid Storage Technology Enterprise SATA Option ROM Utility
115
Rebuilding the RAID
115
Setting the Boot Array in the BIOS Setup Utility
117
Intel ® Rapid Storage Technology Enterprise (Windows)
118
Creating a RAID Set
119
Changing a Volume Type
121
Deleting a Volume
122
Preferences
123
Chapter 6: Driver Installation
125
RAID Driver Installation
126
Creating a USB Flash Drive with RAID Drive
126
Installing the RAID Controller Driver
126
Management Applications and Utilities Installation
129
Running the Support DVD
129
Installing the System Drivers
130
Appendix
133
P11C-C/4L Block Diagram
134
Q-Code Table
135
Notices
138
Simplified EU Declaration of Conformity
141
ASUS Contact Information
142
