Asus P11C-C/4L User Manual

2-27
P11C-C/4L

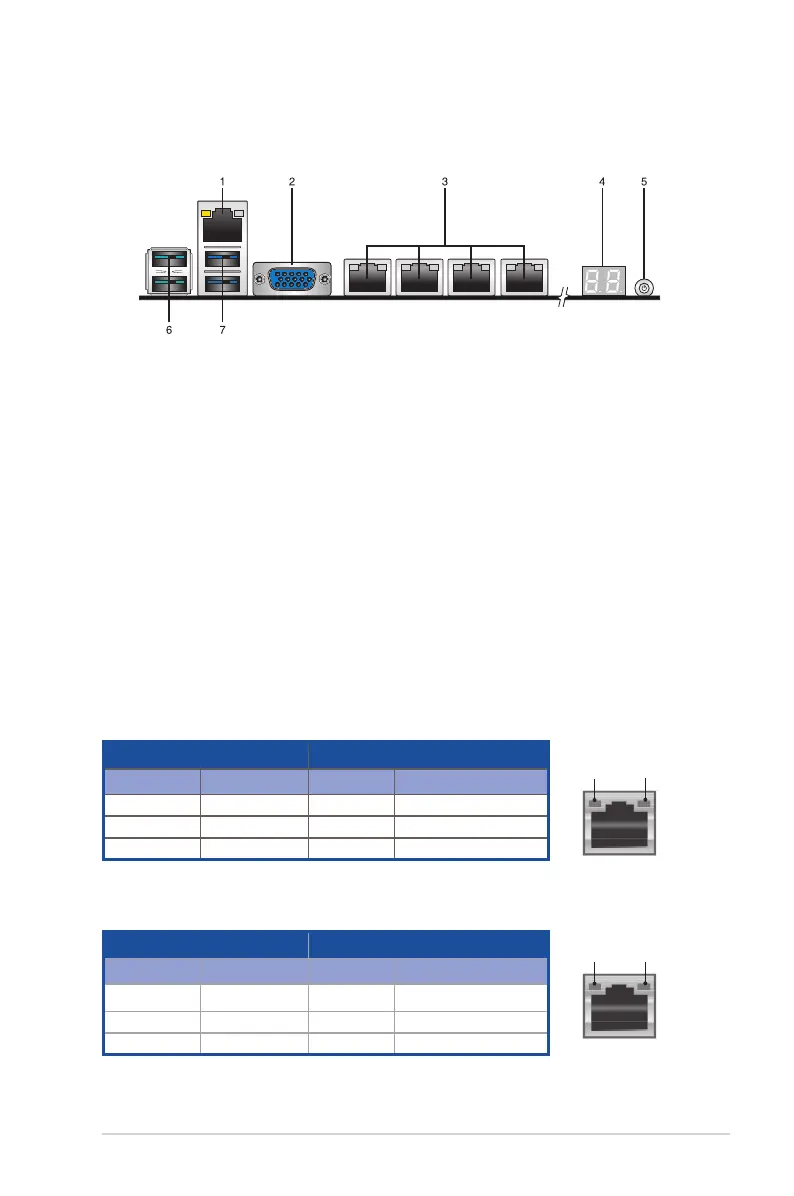

2.8 Connectors
2.8.1 Rear panel connectors
1. RJ-45 port for iKVM:ThisRJ-45portfunctionsonlywhenyouinstallASMB9
management card.
2. Video Graphics Adapter port:ThisportisforaVGAmonitororotherVGA-compatible
devices.
3. RJ-45 ports for LAN:TheseportsallowsGigabitconnectiontoaLAN(LocalArea
Network)throughanetworkhub.RefertothetablebelowfortheLANportLED
indications.
4. Q-Code LED: TheQ-CodeLEDprovidesa2-digitdisplaythatshowsthestatusofyour
system. Refer to the Q-Code table of this user guide for more information about the
2-digit codes.
5. Power-on Button: Press this button to turn on the system.
6. USB 3.1 Gen 2 ports 1 and 2:These4-pinUSB(UniversalSerialBus)portsare
availableforconnectingUSB3.1Gen2devices.
7. USB 3.1 Gen 1 ports 5 and 6:These4-pinUSB(UniversalSerialBus)portsare
availableforconnectingUSB3.1Gen1devices.
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbpsconnection
GREEN Linked YELLOW 100Mbpsconnection
BLINKING Data activity GREEN 1Gbpsconnection
Dedicated Management LAN port (DM_LAN1) LED indications
DM LAN port
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbpsconnection
YELLOW Linked ORANGE 100Mbpsconnection
BLINKING Data activity GREEN 1Gbpsconnection
SPEED
LED
ACT/LINK
LED
