4-9
P11C-C/4L
4.3

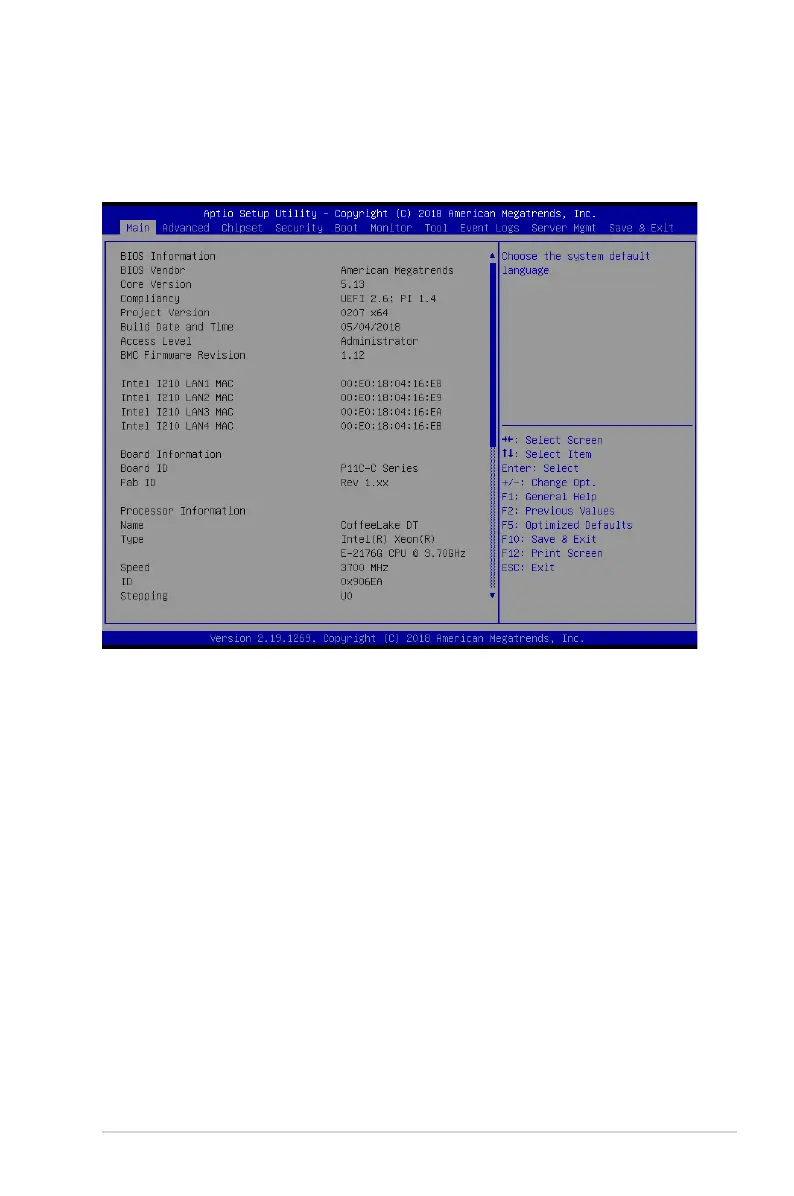

Main menu
WhenyouentertheBIOSSetupprogram,theMainmenuscreenappears.TheMainmenu
providesyouanoverviewofthebasicsysteminformation,andallowsyoutosetthesystem
date,time,andlanguage.
System Date [Day MM/DD/YYYY]
Allows you to set the system date.
System Time [HH:MM:SS]
Allows you to set the system time.
