4-20
Chapter 4: BIOS Setup

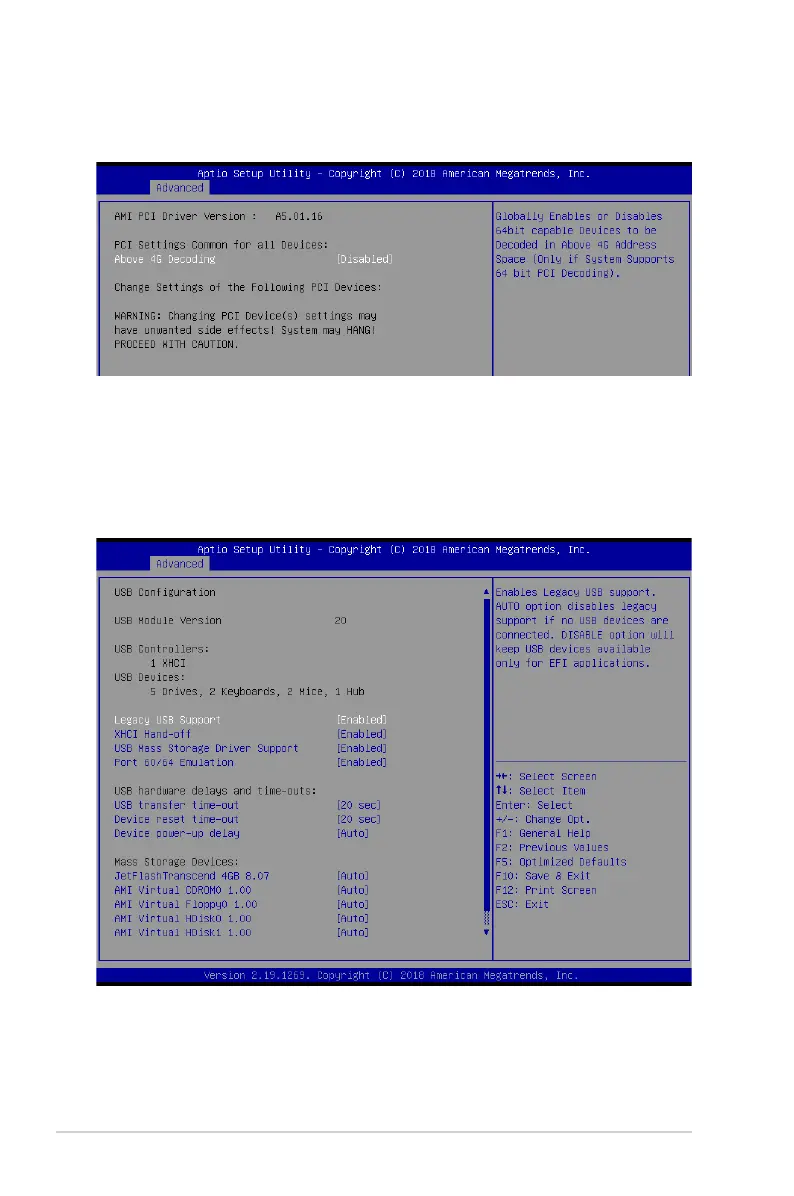

Above 4G Decoding [Disabled]
Allows you to enable or disable 64-bit capable devices to be decoded in above 4G address
space.Itonlyworksifthesystemsupports64-bitPCIdecoding.
Congurationoptions:[Disabled][Enabled]
4.4.10
PCI Subsystem Settings
AllowsyoutocongurePCI,PCI-X,andPCIExpressSettings.
4.4.11
USB Conguration
79
81
