2.4.4 Removing a DIMM
Follow these steps to remove a DIMM.
1. Press the retaining clip outward
to unlock the DIMM.
2. Remove the DIMM from the socket.
2.4.3 Installing a DIMM
1
2
3. Firmly insert the DIMM into the
socket until the retaining clip
snaps back in place and the
DIMM is properly seated.
Ensure to unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so may cause severe damage to both the
motherboard and the components.
a DIMM into a socket to avoid damaging the DIMM.
Unlocked retaining clip
DIMM notch

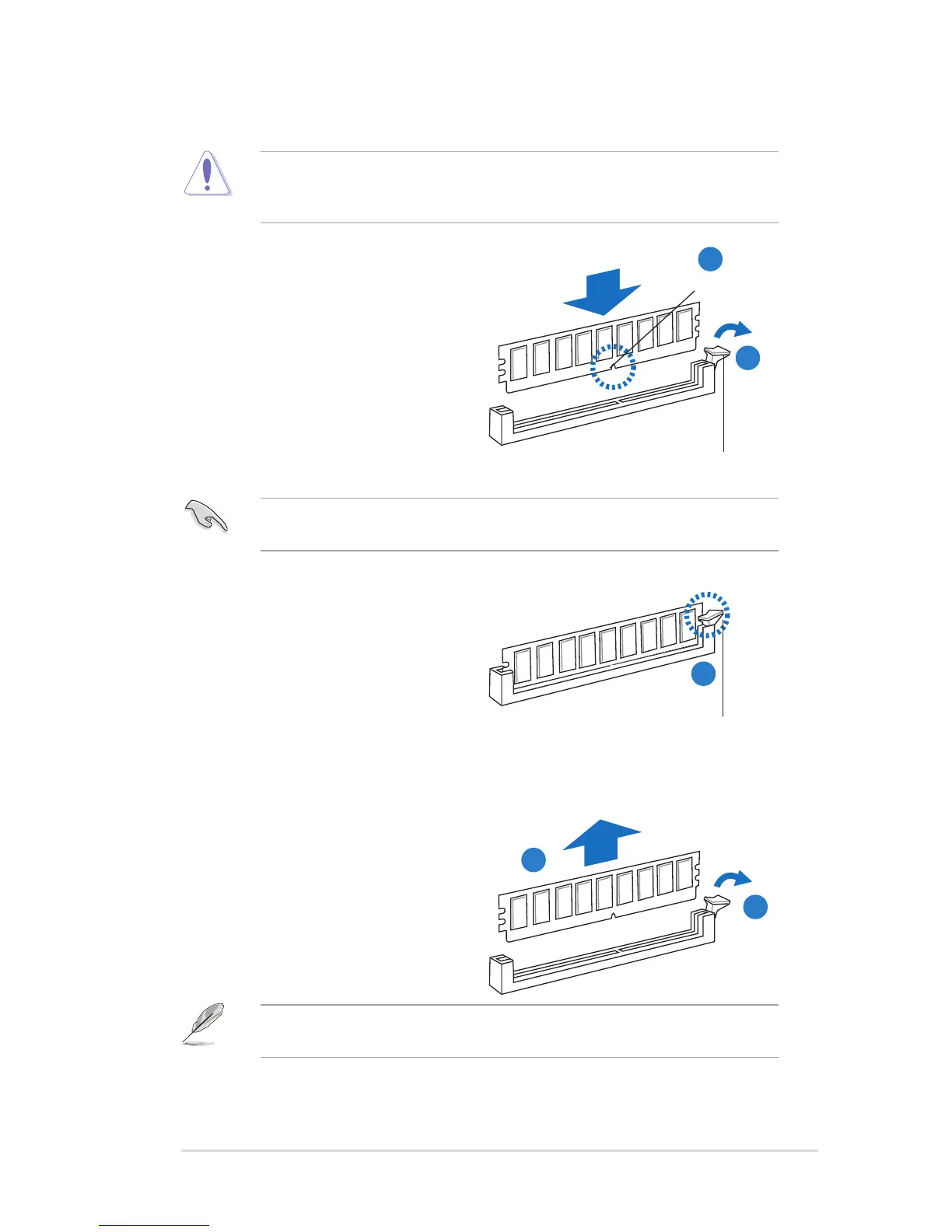

1. Unlock a DIMM socket by
pressing the retaining clip
outward.
2. Align a DIMM on the socket
such that the notch on the DIMM
matches the break on the socket.
Locked Retaining Clip
2
1
3
