Asus P8C WS User Manual

ASUS P8C WS
1-1
1.1 Welcome!
Thank you for buying an ASUS
®
P8C WS motherboard!
The motherboard delivers a host of new features and latest technologies, making it another
standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the items in
your package with the list below.

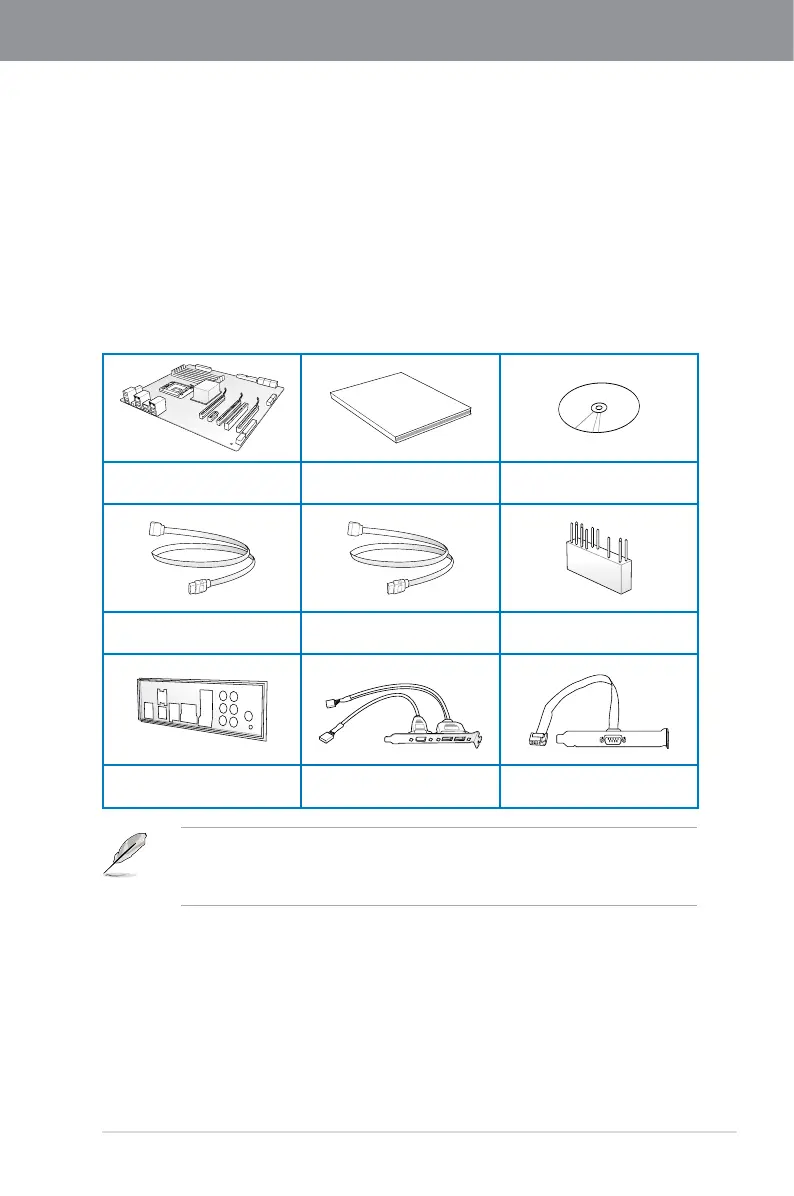

1.2 Package contents
Check your motherboard package for the following items.
• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specications may
vary with different models.
Chapter 1: Product introduction
Chapter 1
User Manual
ASUS P8C WS motherboard User manual Support DVD
2 x Serial ATA 6.0 Gb/s cables 4 x Serial ATA 3.0 Gb/s cables 1 x 2-in-1 ASUS Q-Connector kit
1 x ASUS Q-Shield
2 USB ports + 1394a cable
with bracket
1 x COM port cable with
bracket

Asus P8C WS Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® C216
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Server 2008 R2 Enterprise Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 2x4, 2x8
PCI Express slots quantity	5
LAN controller	Intel® 82574L
Networking features	2 x Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	245 mm
Width	305 mm
