ASUS P8C WS
2-27
Chapter 2
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns
the system on or puts the system in sleep or soft-off mode depending on the BIOS
settings. Pressing the power switch for more than four seconds while the system is ON
turns the system OFF.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.

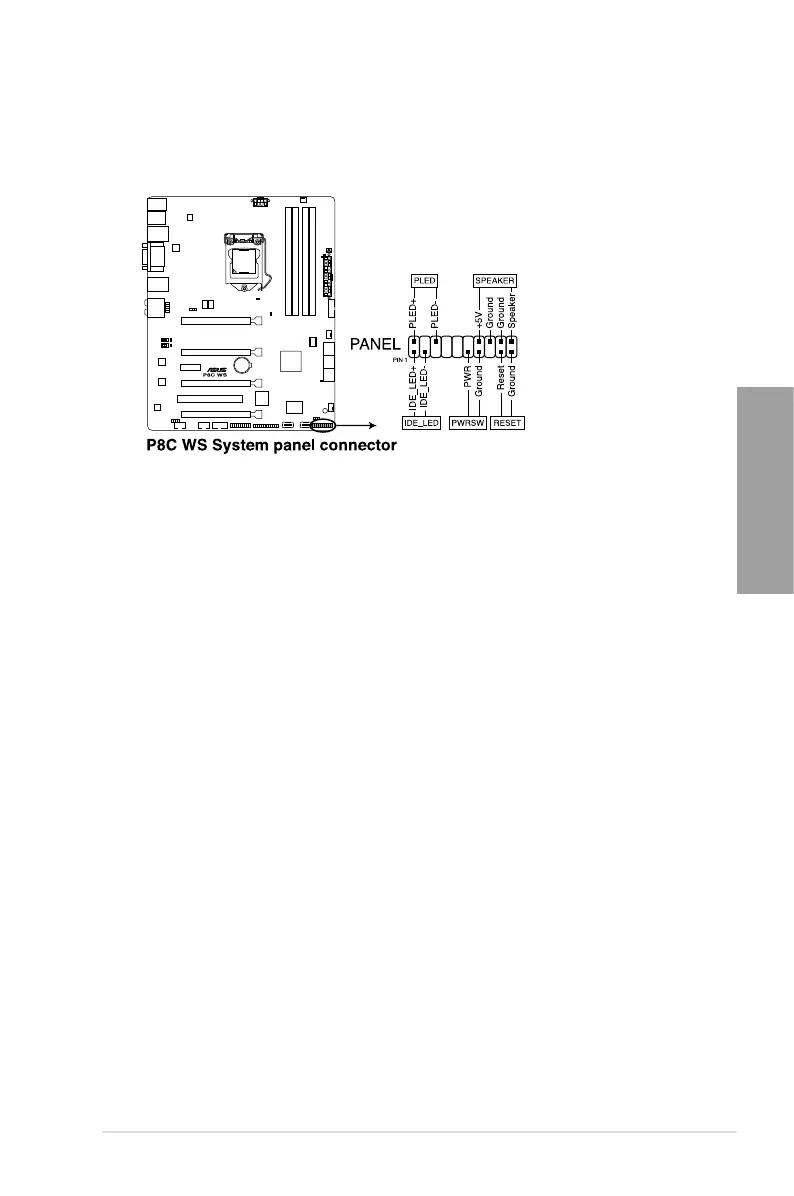

13. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P8C WS and is the answer not in the manual?

Asus P8C WS Specifications

General IconGeneral
ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR3-SDRAM
Supported memory clock speeds1333, 1600 MHz
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium
Maximum number of SMP processors1
Number of SATA III connectors2
Number of Parallel ATA connectors-
USB 2.0 ports quantity6
Audio chipRealtek ALC892
Cooling typePassive
Component forPC
Motherboard chipsetIntel® C216
Audio output channels7.1 channels
Motherboard form factorATX
Compatible operating systemsWindows Server 2008 R2 Enterprise Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit
RAID levels0, 1, 5, 10
Supported storage drive interfacesSATA II, SATA III
Parallel processing technology supportQuad-GPU CrossFireX
PCI Express slots version2.0, 3.0
PCI Express configurations1x16, 2x4, 2x8
PCI Express slots quantity5
LAN controllerIntel® 82574L
Networking features2 x Gigabit LAN
Ethernet interface typeGigabit Ethernet
BIOS typeAMI
ACPI version2.0a
BIOS memory size64 Mbit
Weight and Dimensions IconWeight and Dimensions
Depth245 mm
Width305 mm
