Asus P8C WS User Manual

2-4
Chapter 2: Hardware information
Chapter 2

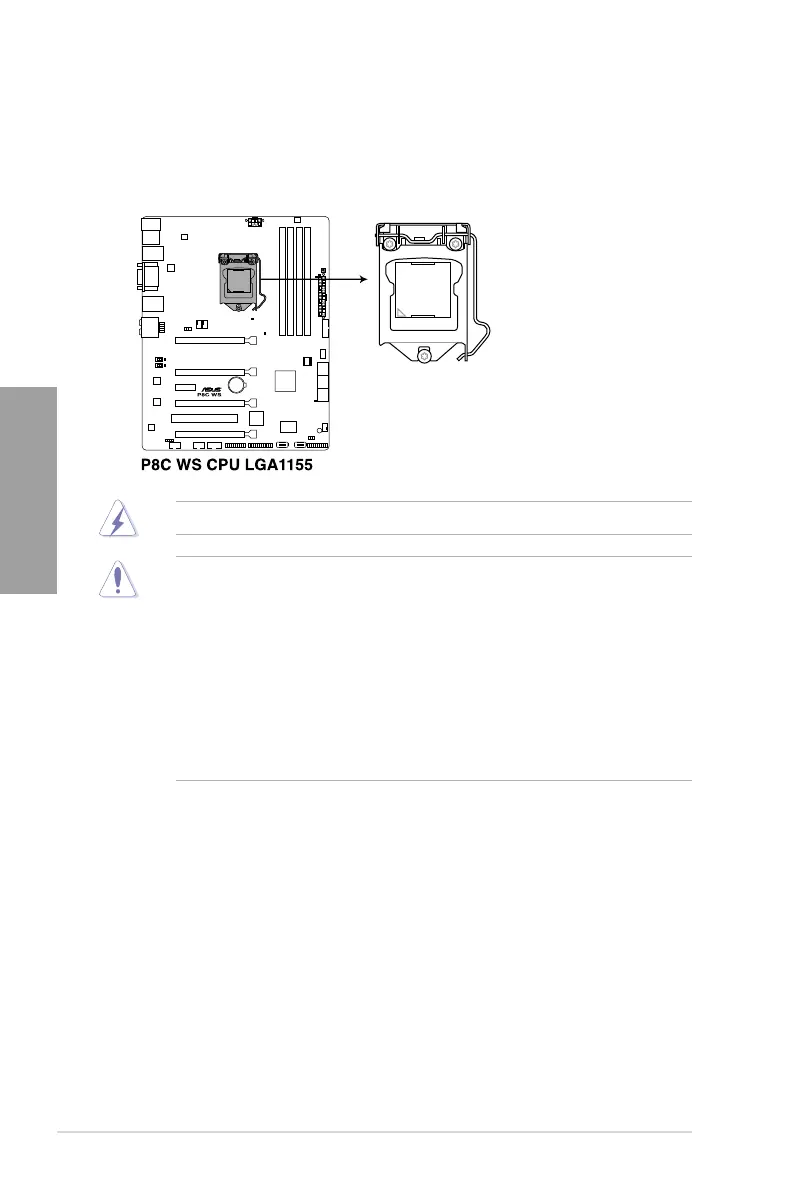

2.2.2 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1155 socket designed for the Intel
®
2nd/
3rd Generation Core™ i3 desktop Processors and Intel
®
Xeon
®
E3-1200/ 12x5 v2 series
Server/Workstation Processors.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1155 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
Ensure that all power cables are unplugged before installing the CPU.

Asus P8C WS Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® C216
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Server 2008 R2 Enterprise Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 2x4, 2x8
PCI Express slots quantity	5
LAN controller	Intel® 82574L
Networking features	2 x Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	245 mm
Width	305 mm
