ASUS P8C WS
2-17
Chapter 2
2.2.8 Internal connectors
1. Intel
®

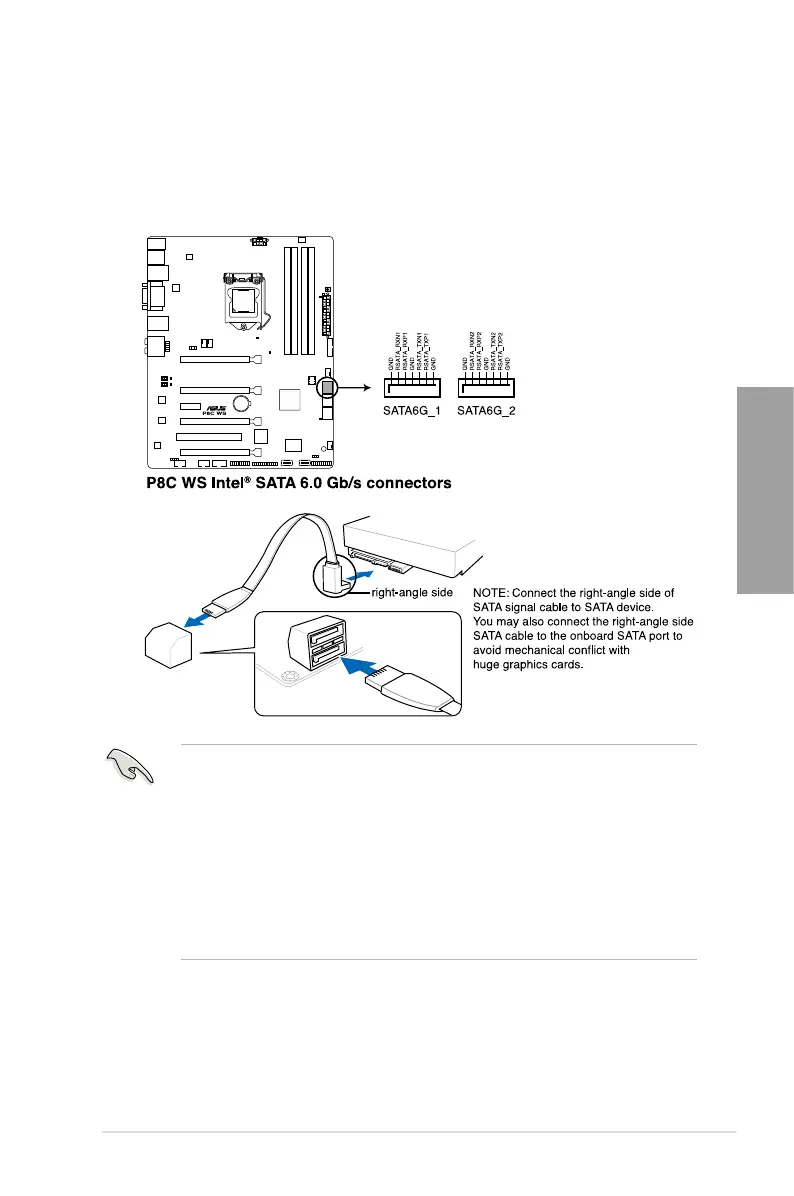

C216 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1-2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 3.5.4 SATA Conguration for details.
Before creating a RAID set, refer to section
4.5 RAID congurations or the manual
bundled in the motherboard support DVD.
When using NCQ, set the
SATA Mode
in the BIOS to [AHCI Mode]. Refer to section
3.5.4 SATA Conguration
for details.
You must install Windows
®
XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP3 or later versions.
