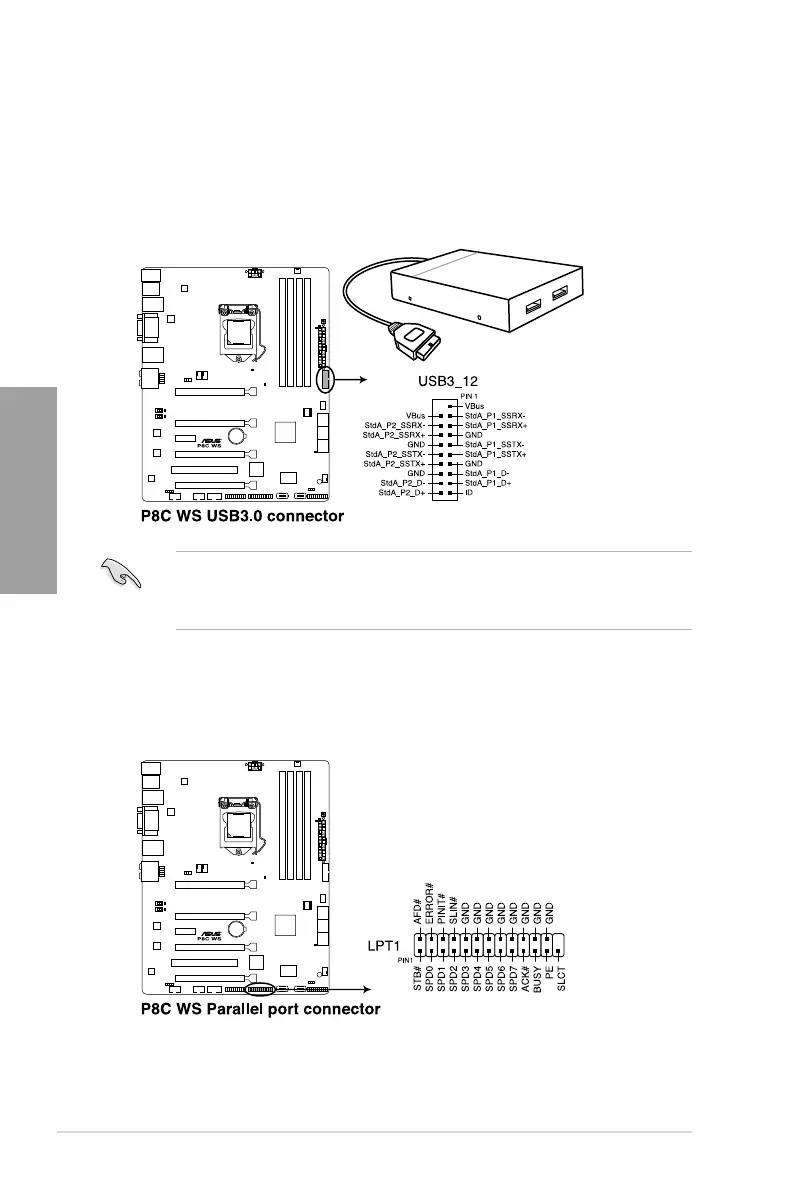

4. USB 3.0 connector (20-1 pin USB3_12)
This connector is for the additional USB 3.0 ports, and complies with the USB 3.0
specicaton that supports up to 5Gbps connection speed. If the USB 3.0 front panel
cable is available from your system chassis, with this USB 3.0 connector, you can have
a front panel USB 3.0 solution.
• You can connect the ASUS front panel USB 3.0 box to this connector to obtain the
front panel USB 3.0 solution.
• Due to Intel
®
limitations, the USB3_12 only supports Windows
®
7 operating system.
5. Parallel port connector (26-1 pin LPT1)
This connector is for a parallel port. Connect the parallel port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.

Asus P8C WS Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® C216
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Server 2008 R2 Enterprise Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 2x4, 2x8
PCI Express slots quantity	5
LAN controller	Intel® 82574L
Networking features	2 x Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	245 mm
Width	305 mm
