3-32 Chapter 3: BIOS setup
Chapter 3

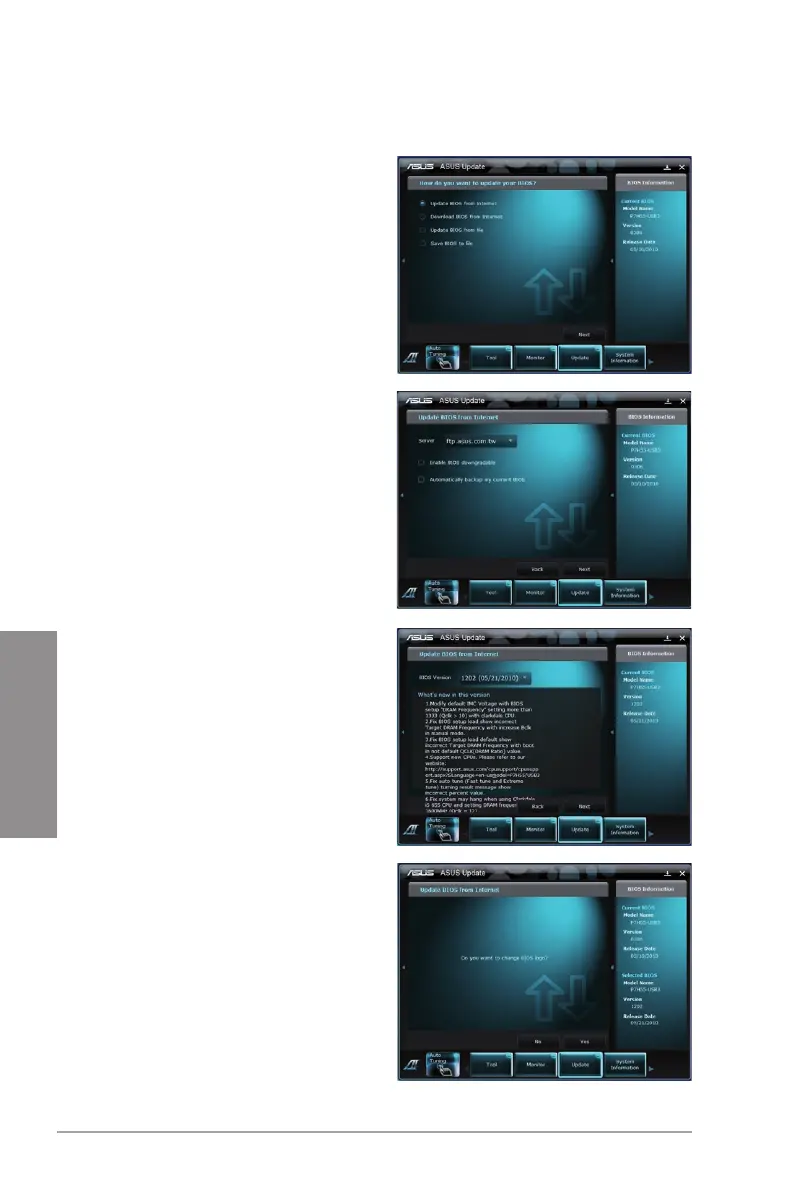

Updating the BIOS through the Internet
To update the BIOS through the Internet:
1. From the ASUS Update screen,
select Update BIOS from Internet,
and then click Next.
2. Select the ASUS FTP site nearest
you to avoid network trafc.
If you want to enable the BIOS
downgradable function and auto
BIOS backup function, check the
checkboxs before the two items on
the screen.
4. You can decide whether to change
the BIOS boot logo, which is the
image appearing on screen during
the Power-On Self-Tests (POST).
Click Yes if you want to change the
boot logo or No to continue.
5. Follow the onscreen instructions to
complete the update process.
3. Select the BIOS version that you
want to download. Click Next.

Asus P8H67-M EVO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express 2.0 x1	2
PCI Slots	1
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
USB 2.0 Ports	12
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E Gigabit LAN controller
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4 x DIMM
Memory Standard	DDR3 1333/1066 MHz
Onboard Video	Supported only by CPU with integrated graphics
