Asus P8H67-M LE User Manual

1-6 Chapter 1: Product introduction
P8H67-M
1.5 Motherboard overview
Before you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Ensure that you unplug the power cord before installing or removing the motherboard.
Failure to do so can cause you physical injury and damage motherboard components.
1.5.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.

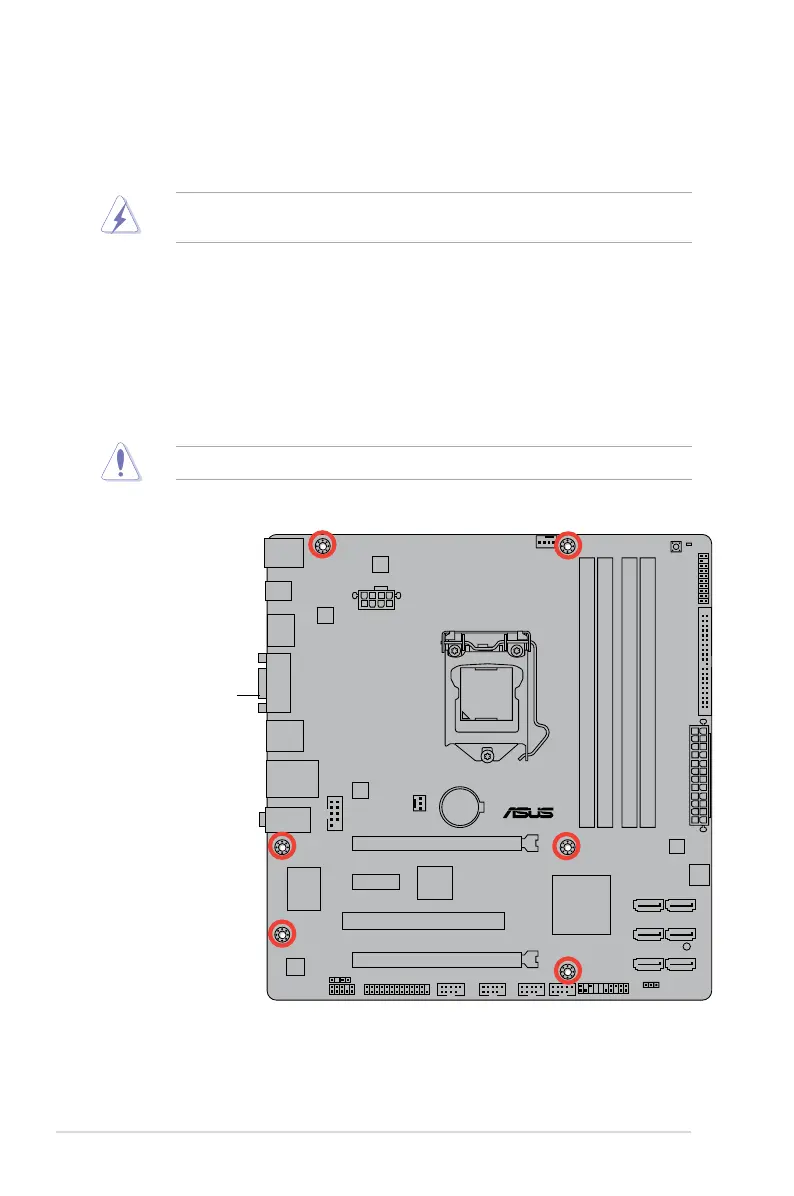

1.5.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis

Asus P8H67-M LE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
Audio Chipset	Realtek ALC887
LAN Chipset	Realtek 8111E
Max. LAN Speed	10/100/1000Mbps
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Memory Standard	DDR3 1333/1066 MHz
SATA 6Gb/s	2
USB 2.0 Ports	10
USB 3.0 Ports	2
Audio Channels	8
Video Ports	DVI, VGA
