Asus P8H67-M LE User Manual

1-18 Chapter 1: Product introduction
1.7.4 Removing a DIMM
Follow these steps to remove a DIMM.
2. Remove the DIMM from the socket.
1.7.3 Installing a DIMM
3. Firmly insert the DIMM into the socket
until the retaining clip snaps back in
place and the DIMM is properly seated.
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.

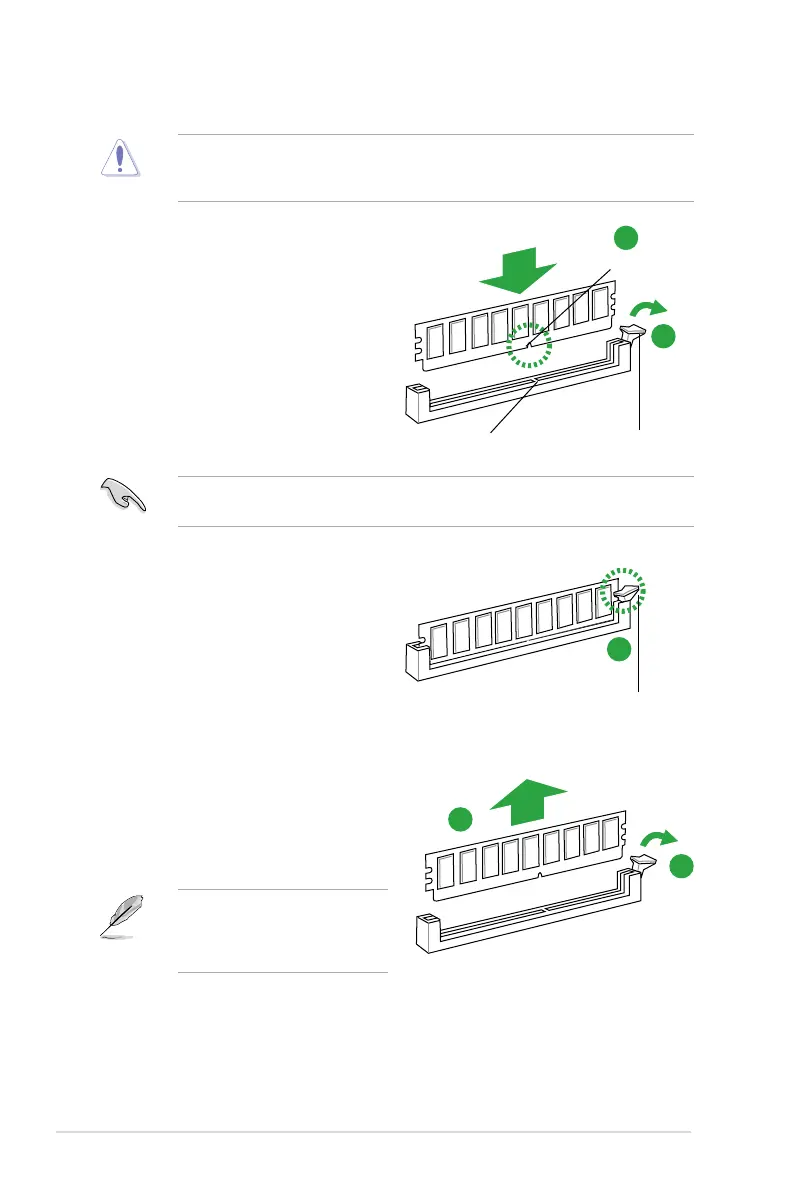

To install a DIMM
1. Unlock a DIMM socket by pressing the
retaining clip outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clip. The DIMM might get damaged
when it ips out with extra force.
Ensure to unplug the power supply before adding or removing DIMMs or other system
components. Failure to do so may cause severe damage to both the motherboard and the
components.
1. Press the retaining clip outward to
unlock the DIMM.
1
2
Unlocked retaining clip
DIMM notch
2
1
Locked Retaining Clip
3
DIMM slot key

Asus P8H67-M LE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
Audio Chipset	Realtek ALC887
LAN Chipset	Realtek 8111E
Max. LAN Speed	10/100/1000Mbps
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Memory Standard	DDR3 1333/1066 MHz
SATA 6Gb/s	2
USB 2.0 Ports	10
USB 3.0 Ports	2
Audio Channels	8
Video Ports	DVI, VGA
