ASUS P8H67-M 1-13

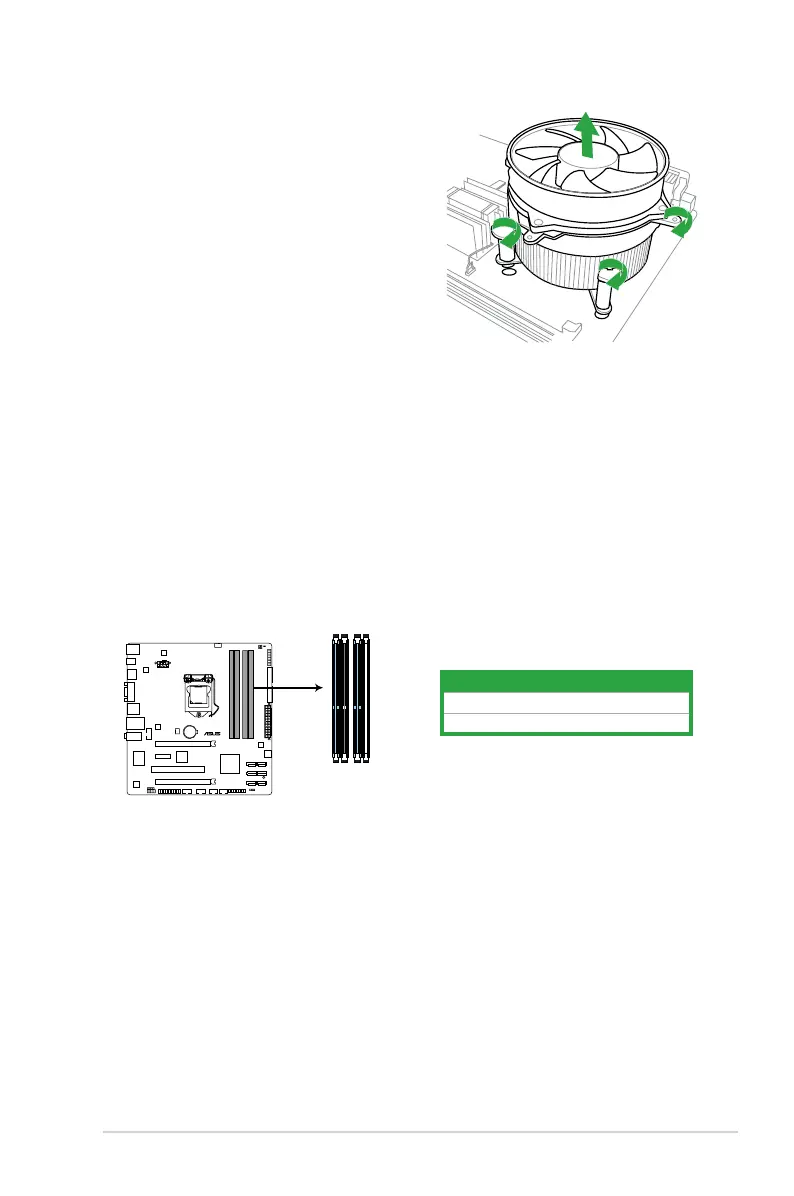

1.7 System memory
1.7.1 Overview
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.
The gure illustrates the location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
4. Carefully remove the heatsink and fan
assembly from the motherboard.
5. Rotate each fastener clockwise to ensure
correct orientation when reinstalling.
P8H67-M
P8H67-M 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

Asus P8H67-M LE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
Audio Chipset	Realtek ALC887
LAN Chipset	Realtek 8111E
Max. LAN Speed	10/100/1000Mbps
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Memory Standard	DDR3 1333/1066 MHz
SATA 6Gb/s	2
USB 2.0 Ports	10
USB 3.0 Ports	2
Audio Channels	8
Video Ports	DVI, VGA
