6. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0/1.1 devices.
7. USB 2.0 ports 3 and 4.
These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0/1.1 devices.
8. Video Graphics Adapter (VGA) port.
This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
9. HDMI port.
This port is for a High-Denition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-Ray and other protected
content.
10. Optical S/PDIF Out port.
This port connects an external audio output device via an
optical S/PDIF cable.
11. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0/1.1 devices.
1.10.2 Internal connectors
1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.

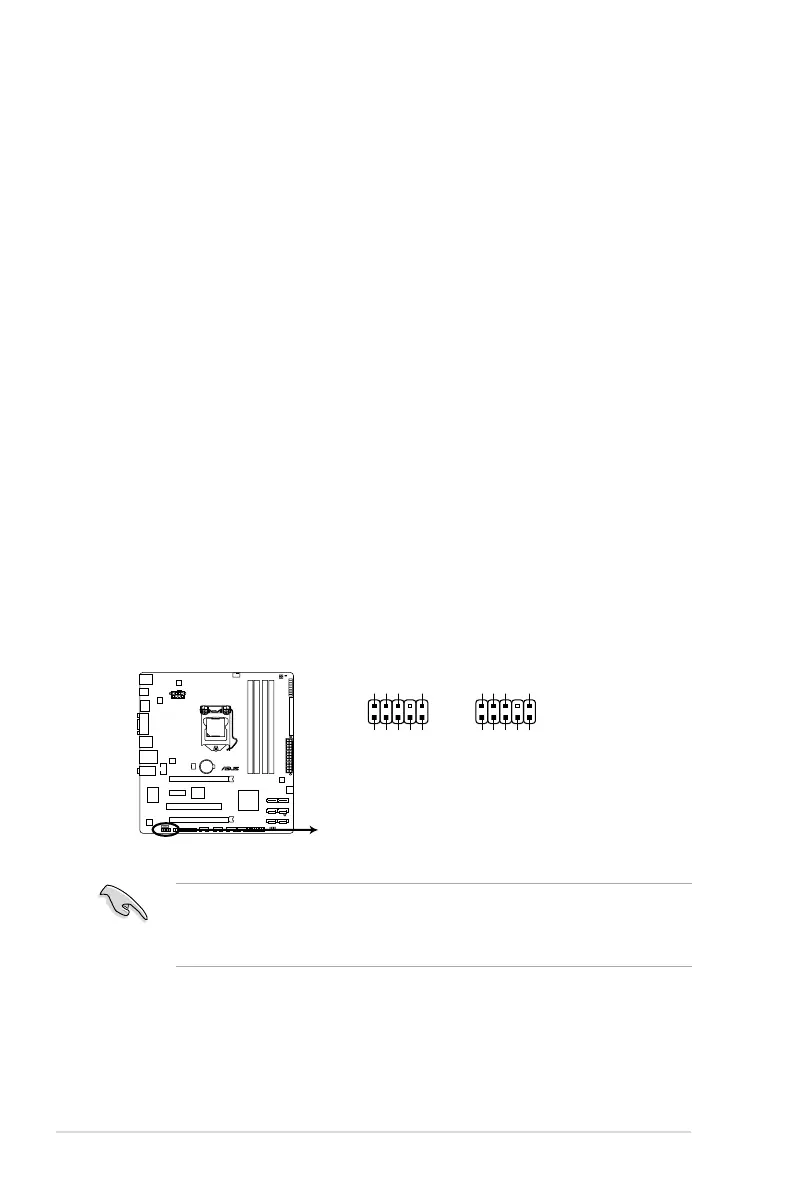

P8H67-M
P8H67-M Front panel audio connector
AAFP
PIN 1
GND
PRESENCE#
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND
NC
NC
NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
If you want to connect a high-denition front panel audio module to this connector, ensure
that the Front Panel Type item in the BIOS is set to [HD Audio]. If you want to connect an
AC97 front panel audio module to this connector, set the item to [AC97]. See section 2.5.6
Onboard Devices Conguration for details.
